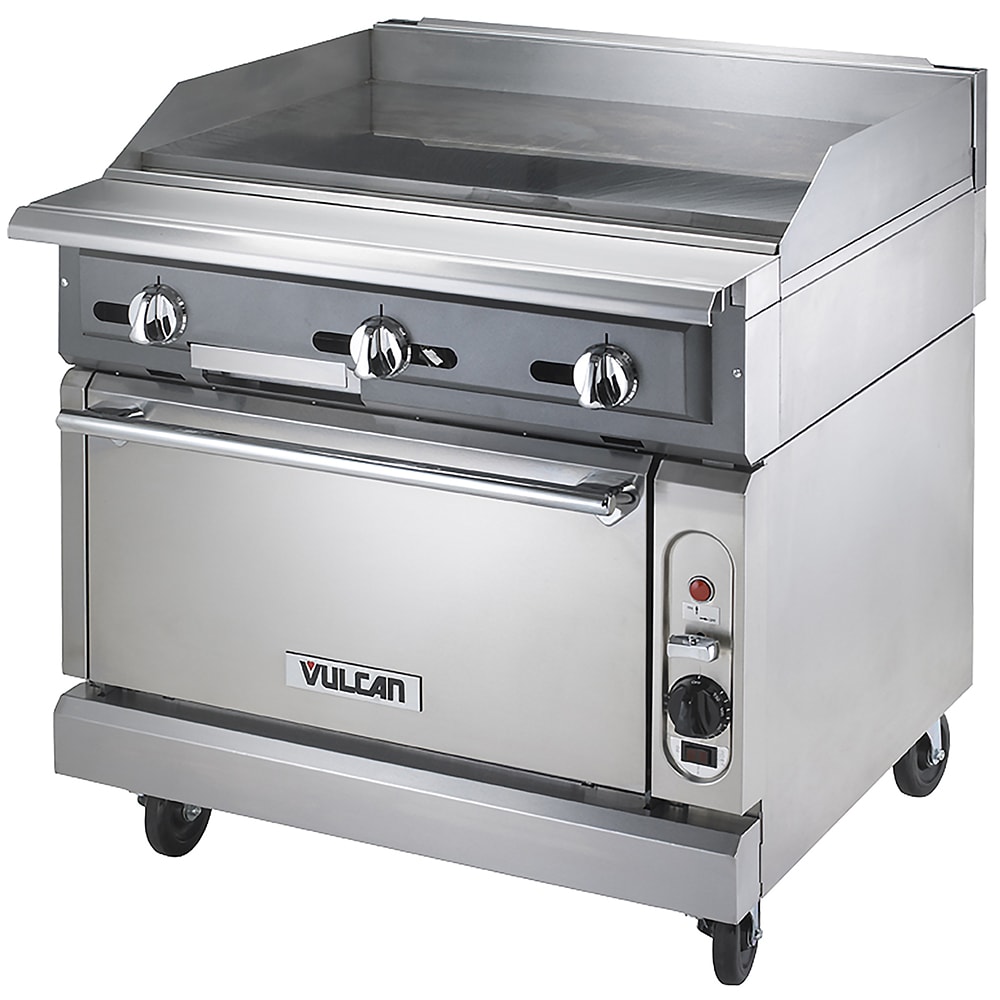

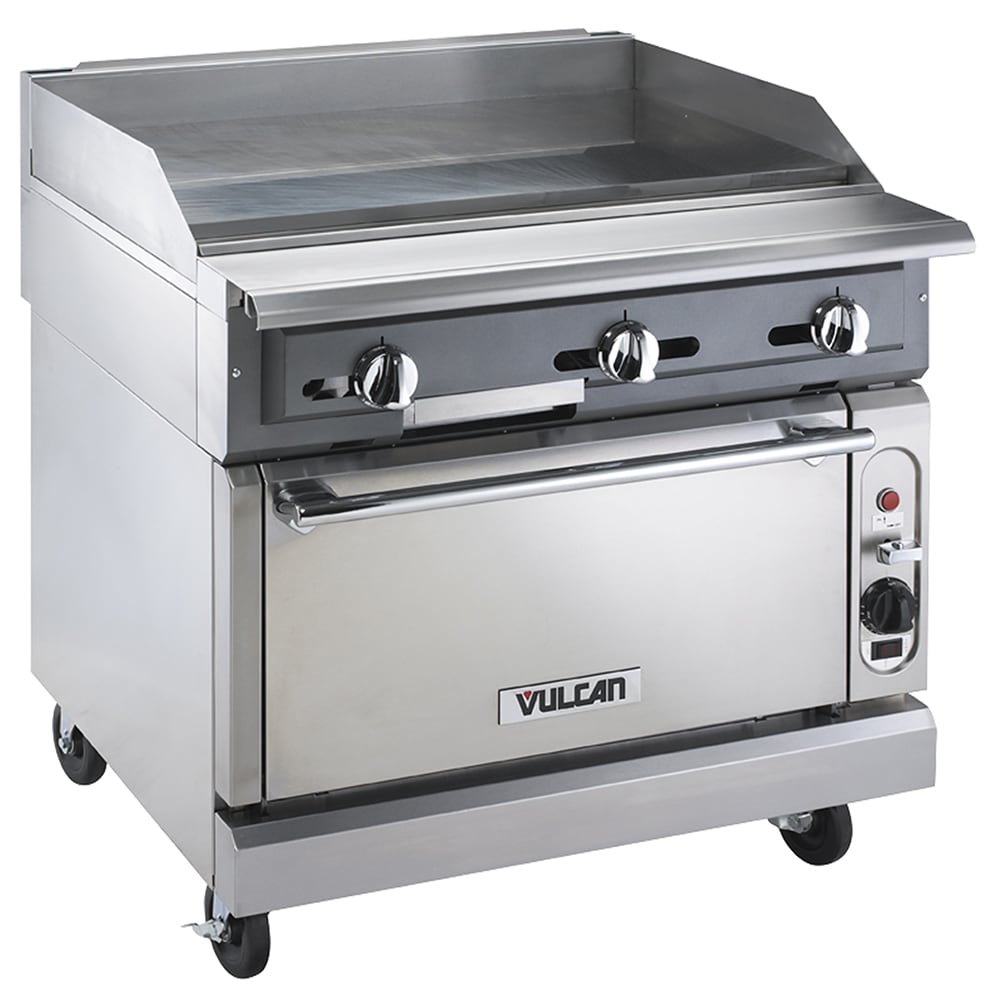

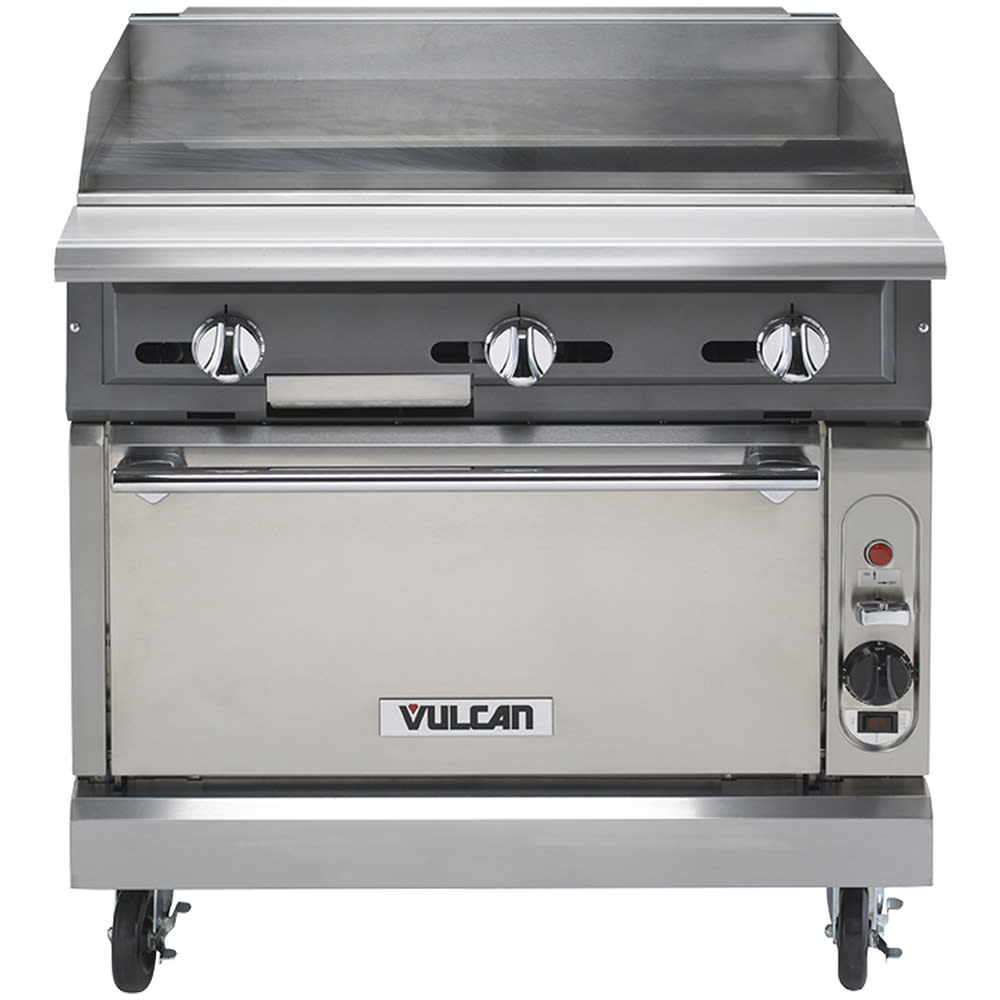

Vulcan VGM36C Description
The Vulcan VGM36C heavy-duty gas range is 36 inches wide, offering three individually controlled 12-inch heated areas on the griddle plate. Because each area has its own pilot flame, one or more areas can be turned off during slow hours. The temperature of the 3/4-inch-thick griddle plate is controlled by knobs for each section. Stray grease is contained by 4-inch splashes around the plate, and a deep crumb tray catches leftover food particles.
The base of the Vulcan VGM36C griddle gas range is a convection oven for increased functionality. It can bake foods at temperatures ranging from 175 to 550 degrees Fahrenheit. Its cooking cavity is covered in porcelain on the bottom, sides, and door interior. This slick finish repels food debris and expedites cleaning. Two removable oven racks are included and can be adjusted to three slide positions. For durability, this oven is constructed of stainless steel with a sturdy door and hinges.
Product Details
- Part of the V series
- Each of the (3) 12-inch sections is heated by a 30,000 BTU burner
- Each burner has its own pilot flame and manual controls
- Durable, polished steel griddle plate is 3/4-in.-thick
- 4-in.-tall splash guards protect nearby surfaces from splatter
- Deep crumb tray can hold a lot of waste
- Convection oven base has a 50,000 BTU burner
- Porcelainized steel oven interior is slick to prevent food and bacteria buildup
- 2 oven racks and 3 rack positions
- Oven temperature range: 175-550 degrees F
- Made of stainless steel on the front, front ledge, sides, base, stub back, and burner box
- Heavy-duty oven door and counterweighted door hinges
- 6-in. adjustable legs for level installation
- 4-in. stub riser
- Requires 10-in. clearance from combustible surfaces for the rear and sides
- 122,000 total BTU
Dimensions & Utilities
- Griddle surface: 36 in. W x 233/8 in. D
- Oven interior: 27 in. W x 27 in. D x 13 in. H
- Overall: 36 in. W x 417/8 in. D x 401/2 in. H
- Heats with natural gas or liquid propane
- 11/4-in. manifold connection on front
- 11/4-in. capped gas connection on back
- 4 A
- 115 V/60 Hz/1 ph, 7-ft. cord with a plug
V Series Heavy Duty Range, gas, 36″, griddle, 3/4″ thick polished steel plate, manual controls, convection oven, stainless steel front, top front ledge, sides, base, burner box & stub back, 6″ adjustable legs, 122,000 BTU, CSA Flame, CSA Star, NSF
