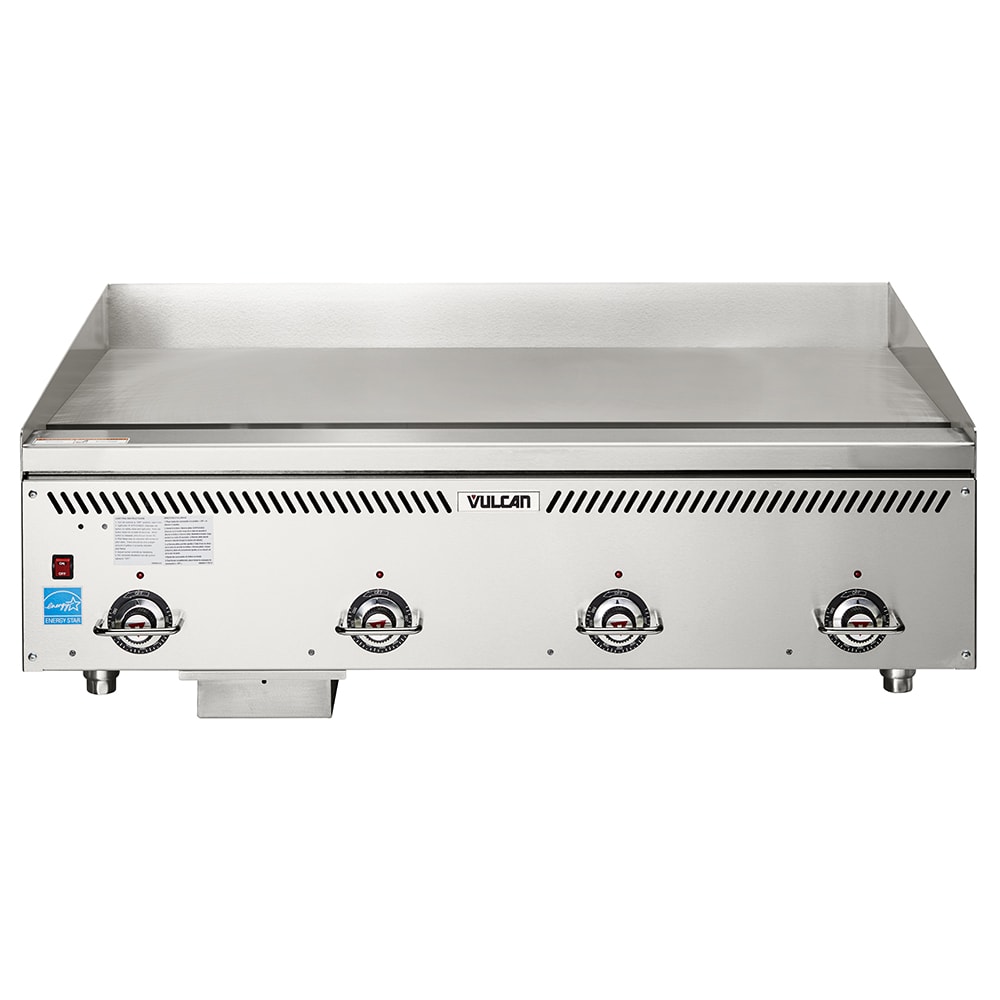

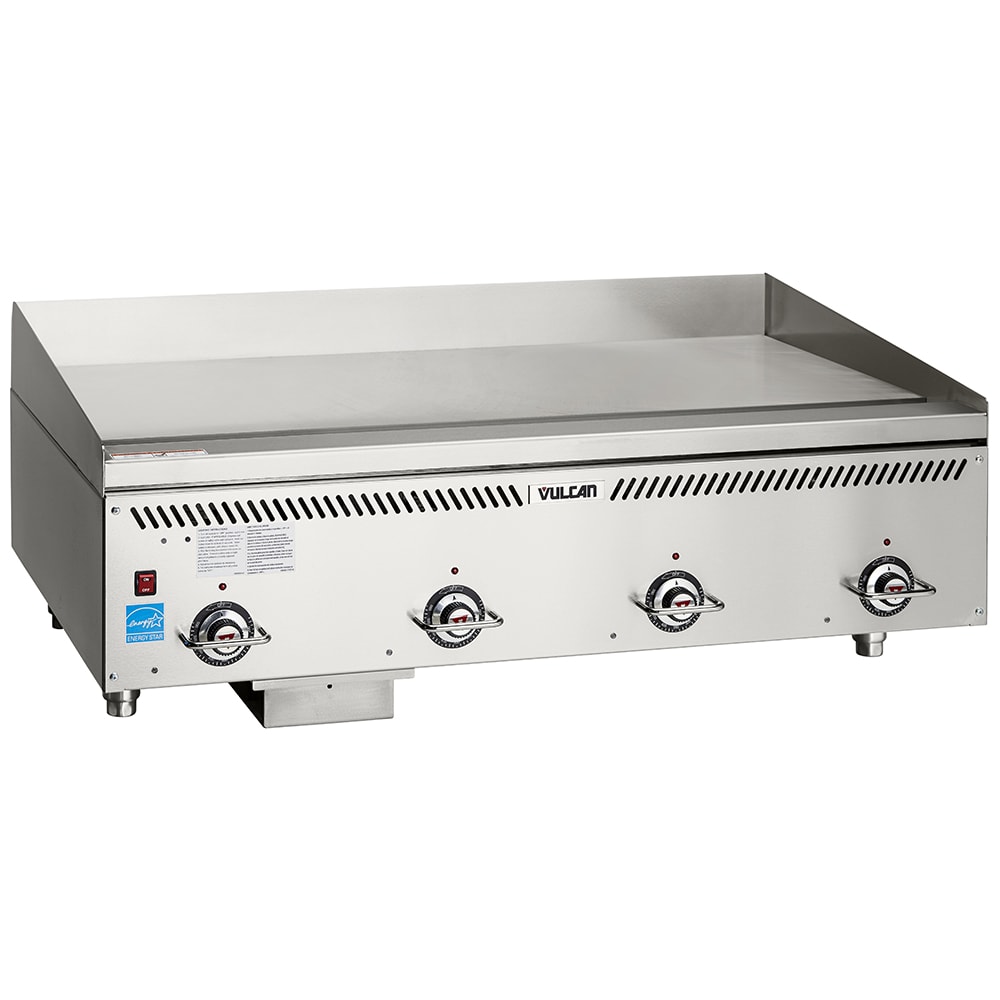

Vulcan VCCG48-IS 48″ Gas Griddle w/ Thermostatic Controls – 1″ Steel Plate

Designed with four infrared burners, the Vulcan VCCG48-IS countertop griddle produces 96,000 BTUs of heat and can be used to create separate cooking zones on the same griddle top. Spaced 12 inches apart, each burner is separately controlled with a solid-state thermostat activated by electronic spark ignition. Chrome wire guards protect the control knobs from impacts, shielding them from accidental changes. With diagnostic abilities and pilot protection, the griddle is simple to operate.

Sitting on a countertop or equipment stand, the Vulcan VCCG48-IS gas griddle is supported by 4-inch legs that can be adjusted to ensure it remains level on uneven surfaces. Its griddle plate is 1 inch thick and made of polished steel to withstand frequent use at high temperatures and streamline cleaning. At the griddle’s front is grease trough made of stainless steel, collecting greasy runoff and directing it into the unit’s grease drawer. Accommodating as much as 6 quarts of grease, this drawer can be emptied quickly once it fills up.

Product Details

• Countertop model
• Front top ledge, sides, and front have stainless steel construction
• Temperature range: 200-550 degrees F
• Separate cook zones with 4 individually controlled burners
• Energy-efficient IRX infrared burners are spaced 12 in. apart
• Solid-state thermostats
• Electronic spark ignition has diagnostic ability and pilot protection

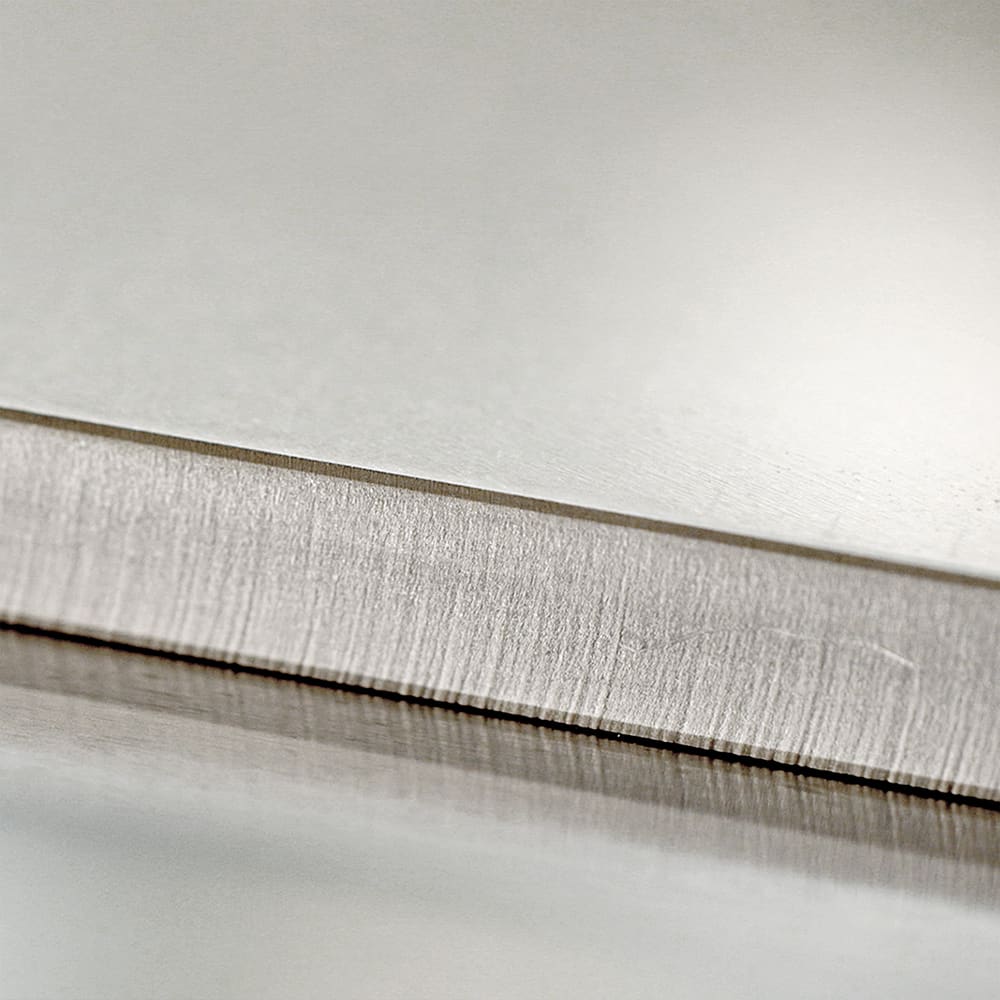

• 1-in.-thick polished steel griddle plate

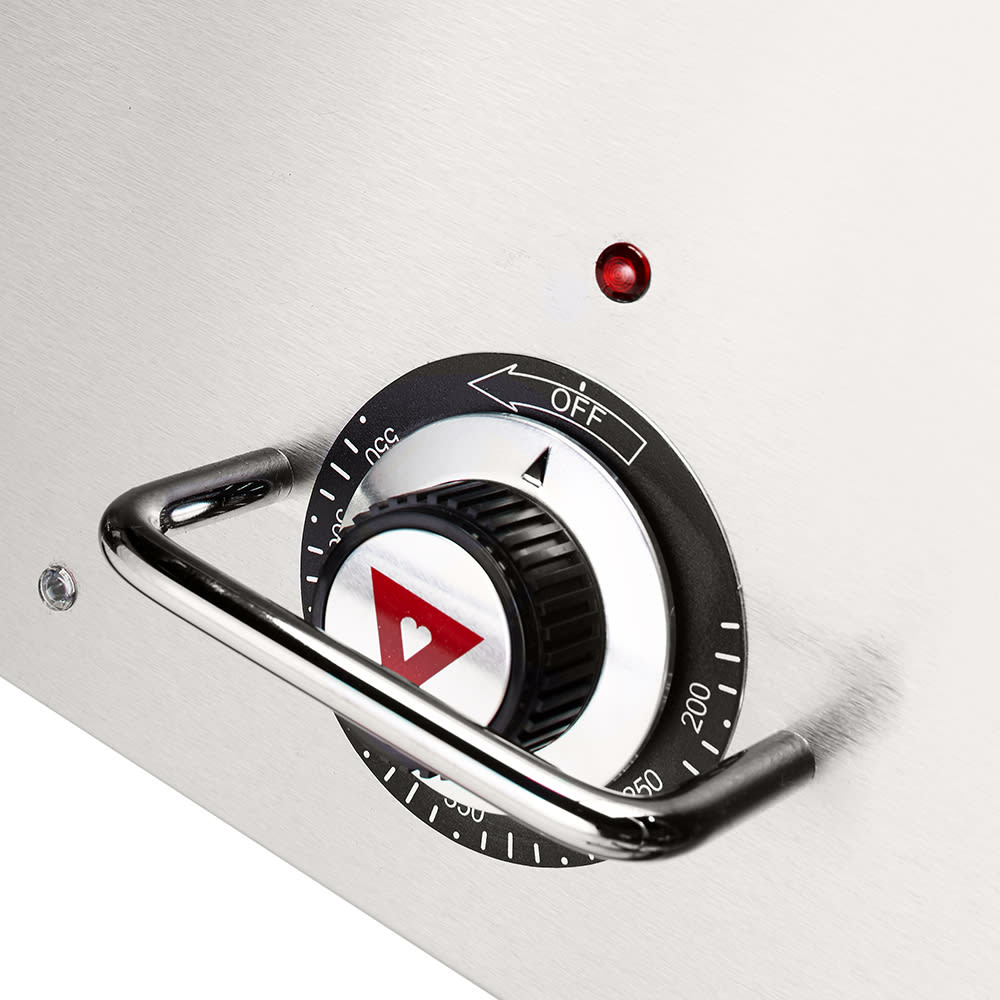

• Thermostat controls are protected with wire knob guards made of chrome
• Chassis made of stainless and aluminized steel is welded to prevent sagging
• 14.7-in. cooking height
• Tapered side splashes and 4-in. rear splash made of stainless steel block hot oil splashes

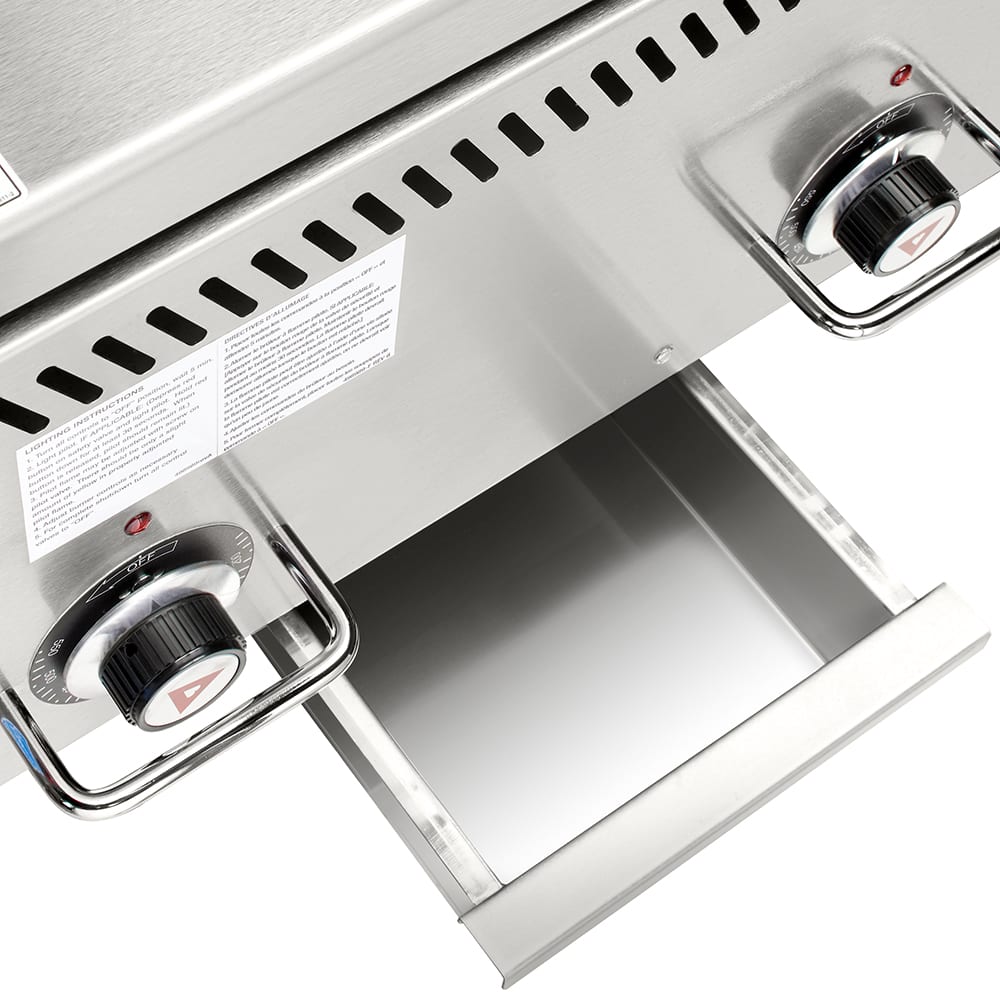

• (1) 6-qt. grease drawer stores grease and crumbs
• Grease trough is made of stainless steel and front mounted
• Adjustable, 4-in. legs
• 96,000 BTU

Dimensions & Utilities

• Cooking surface: 48 in. W x 24 in. D
• Overall dimensions: 48 in. W x 33.1 in. D x 18.8 in. H
• 2 A
• 120 V/50-60 Hz/1-ph, NEMA 5-15P plug
• Rear gas connection and pressure regulator: ³/₄ in.
• Uses natural gas or liquid propane

Heavy Duty Griddle, countertop, gas, 48″ W x 24″ D cooking surface, 1″ thick steel plate, (4) burners, solid state thermostat every 12″, IRX infrared burner technology, electronic spark ignition & pilot protection, wire knob guards, (1) drawer. stainless steel front, sides, front top ledge, front grease trough, 4″ back & tapered side splashes, 4″ adjustable legs, 96,000 BTU, NSF, CSA, ENERGY STAR
