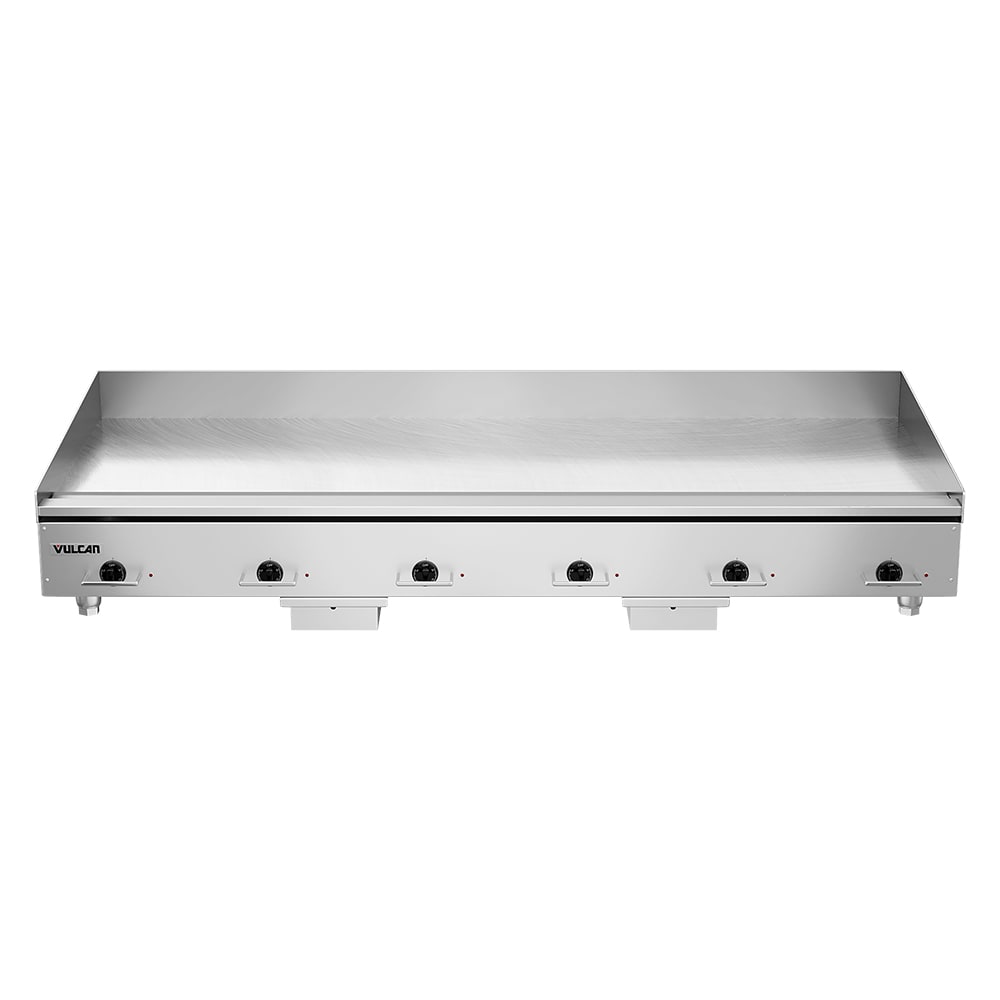

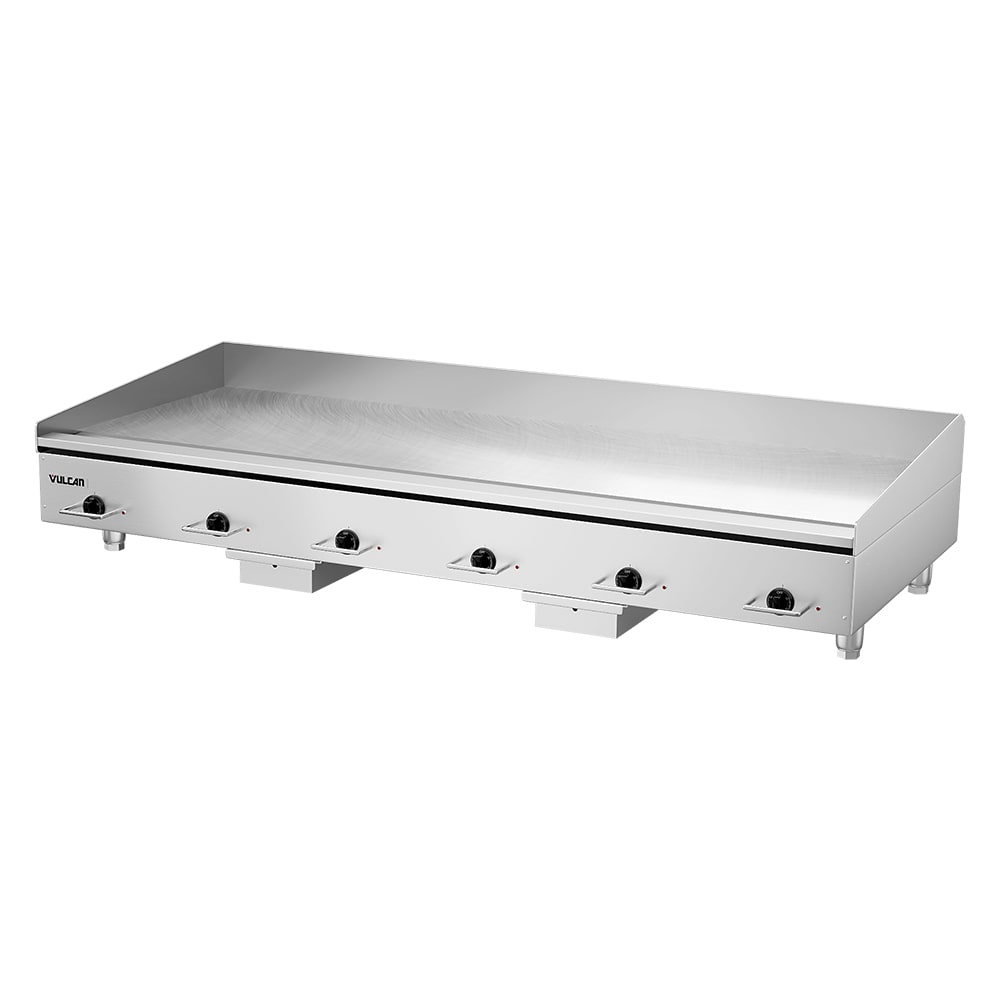

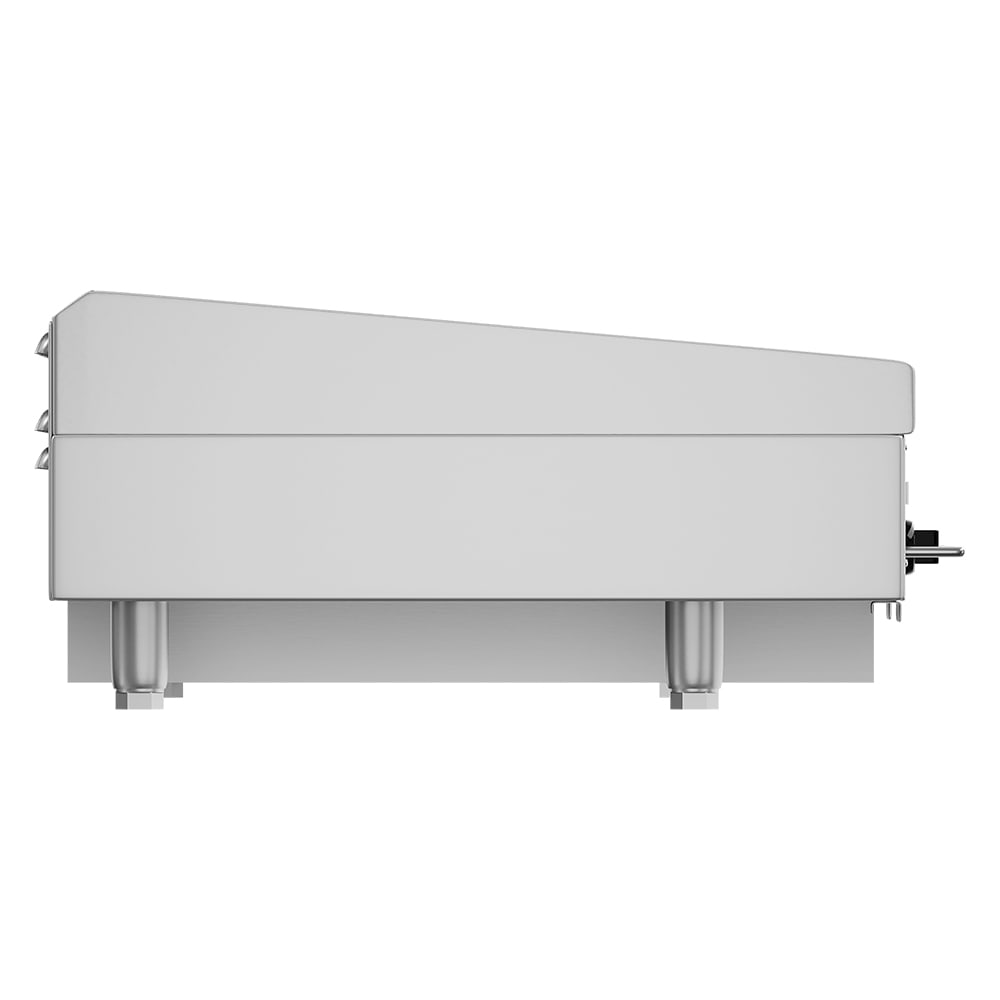

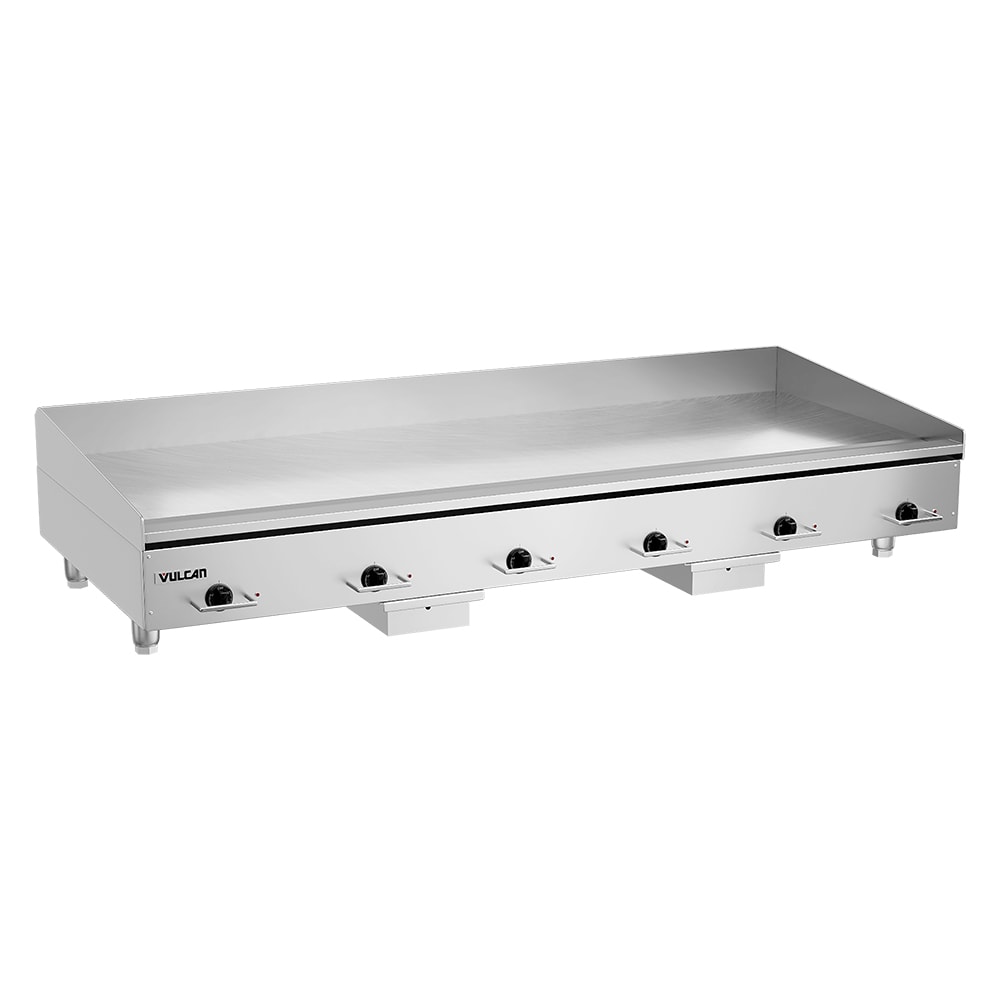

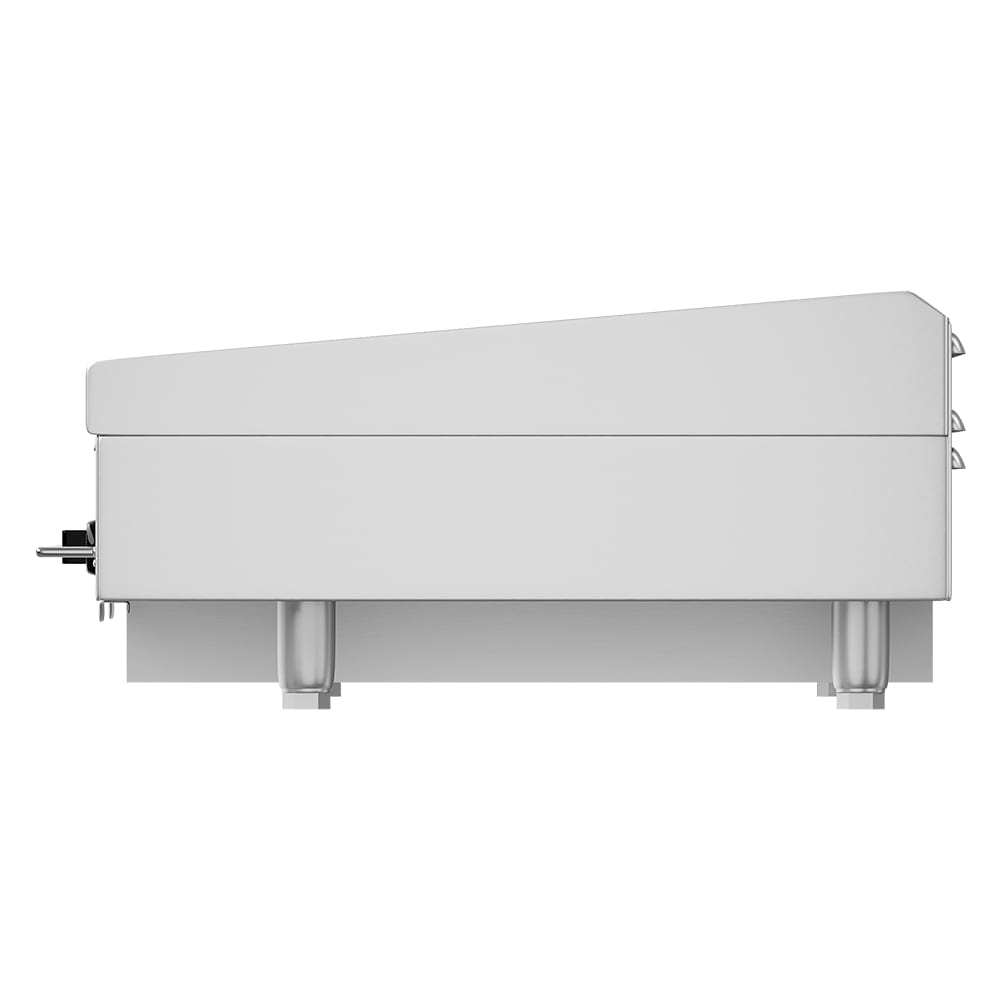

Vulcan HEG72E 72″ Electric Griddle w/ Thermostatic Controls – 3/4″ Steel Plate, 240v/3ph

Designed for large, high-traffic establishments, the Vulcan HEG72E HEG-E Series heavy-duty electric griddle is 72 inches wide by 31.5 inches deep by 15.3 inches high. Incoloy heating elements work with snap-action thermostats to individually control 12-inch sections of the griddle plate, enabling users to cook multiple foods with different cooking needs at the same time. A cycling light accompanies each of the six thermostats to alert when the surface is hot, and chrome knob guards shield the thermostat controls from tampering. The griddle plate is 72 inches wide by 24 inches deep, and it has a temperature range between 200 and 450 degrees Fahrenheit to accommodate a wide variety of cooking methods, from reheating to grilling.

Made of durable stainless steel, the Vulcan HEG72E commercial electric griddle sits on top of four adjustable legs. The griddle is engineered to fit on top of a countertop, and as kitchen needs change, its height can be modified. Its sturdy, smooth structure provides a solid, lifted cooking space that’s easy to wipe down, while its hovered design permits users to clean typically hard-to-reach places. Grease removal is simplified with the trough and grease drawer. Grease funnels into the 3.5-inch-wide trough, which drains into two grease drawers that hold much as 3 gallons of grease combined. Grease is also contained with the three built-in splash guards-one on the back and two on the sides-that line the griddle’s perimeter.

Product Details

• Part of the HEG-E series
• Constructed of stainless steel
• 0.75-in.-thick griddle plate
• Temperature range: 200-450 degrees F
• 6 thermostat controls with cycling lights
• 2 solid, sheathed, tubular incoloy heating elements
• Chrome knob guards
• (4) 4-in.-tall adjustable legs
• 4-in.-high rear splash guard
• 2 tapered side splash guards
• 3.5-in.-wide grease trough
• (2) 1.5-gal.-capacity grease drawers
• Side and rear clearance: 1 in.
• Bottom clearance: 4 in.

Dimensions & Utilities

• Griddle plate: 72 in. W x 24 in. D
• Overall: 72 in. W x 31.5 in. D x 15.3 in. H
• 39 A, 32.4 kW
• 240 V/50-60 Hz/3 ph

Heavy Duty Griddle, electric, countertop, 72″ W x 24″ D cooking surface, 3/4″ thick polished steel griddle plate, bottom mounted snap action thermostat every 12″, low profile, stainless steel front, sides, front top ledge with “Cool Bullnose”, (2) front grease trough, 4″ back & tapered side splashes, 4″ adjustable legs, CSAus, NSF
