Vulcan HEG48E 48″ Electric Griddle w/ Thermostatic Controls – 1/2″ Steel Plate, 240v/3ph

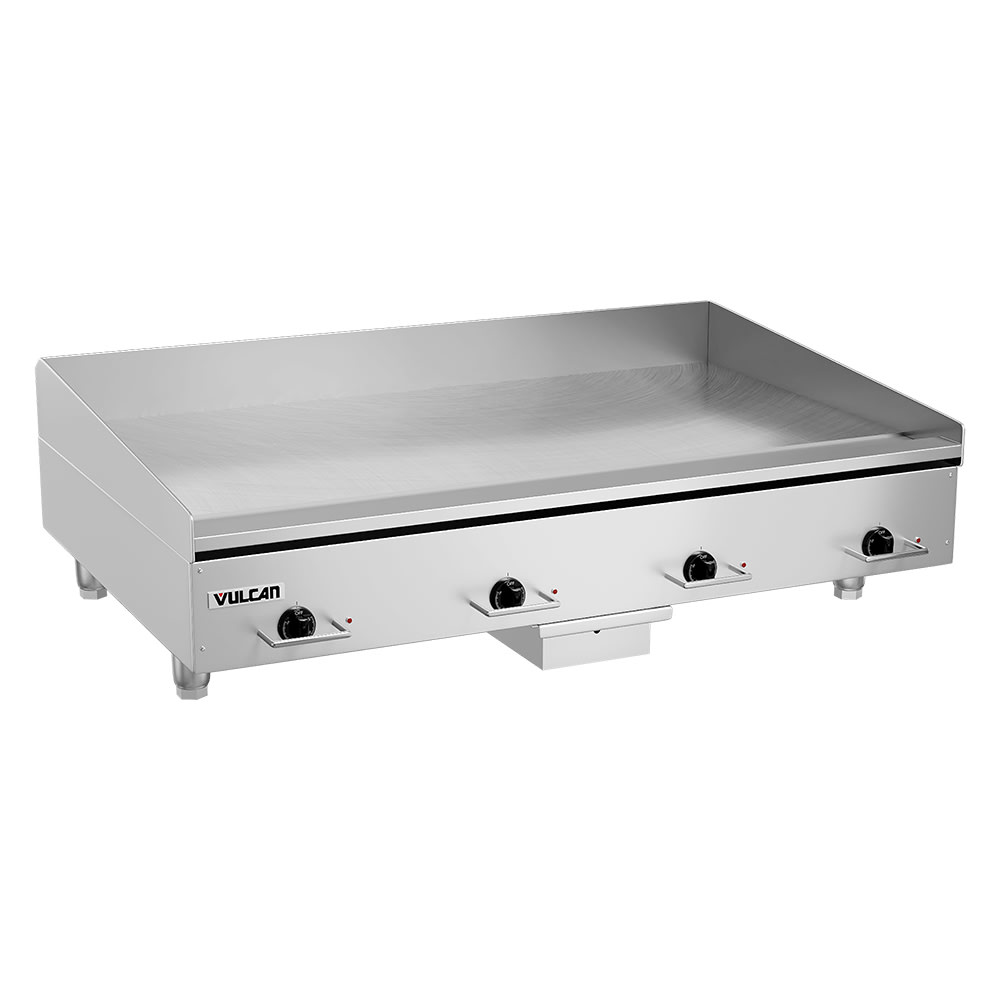

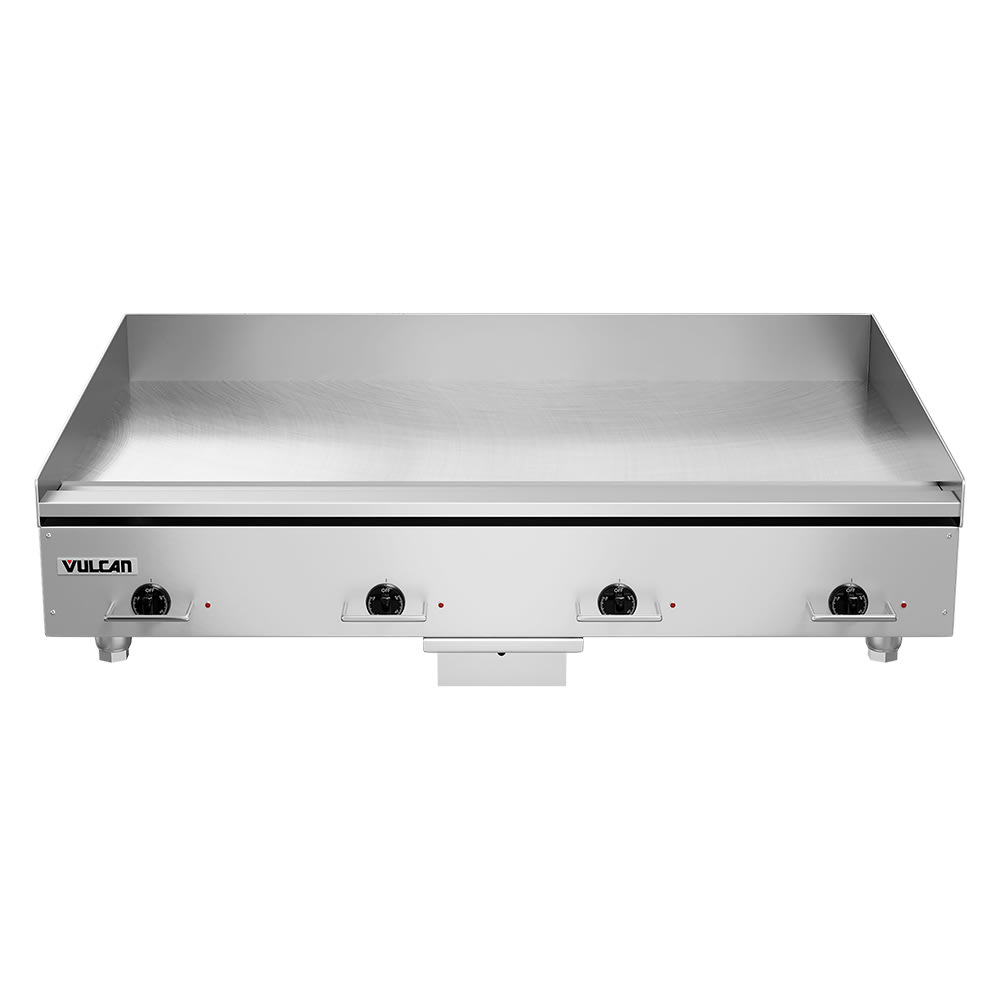

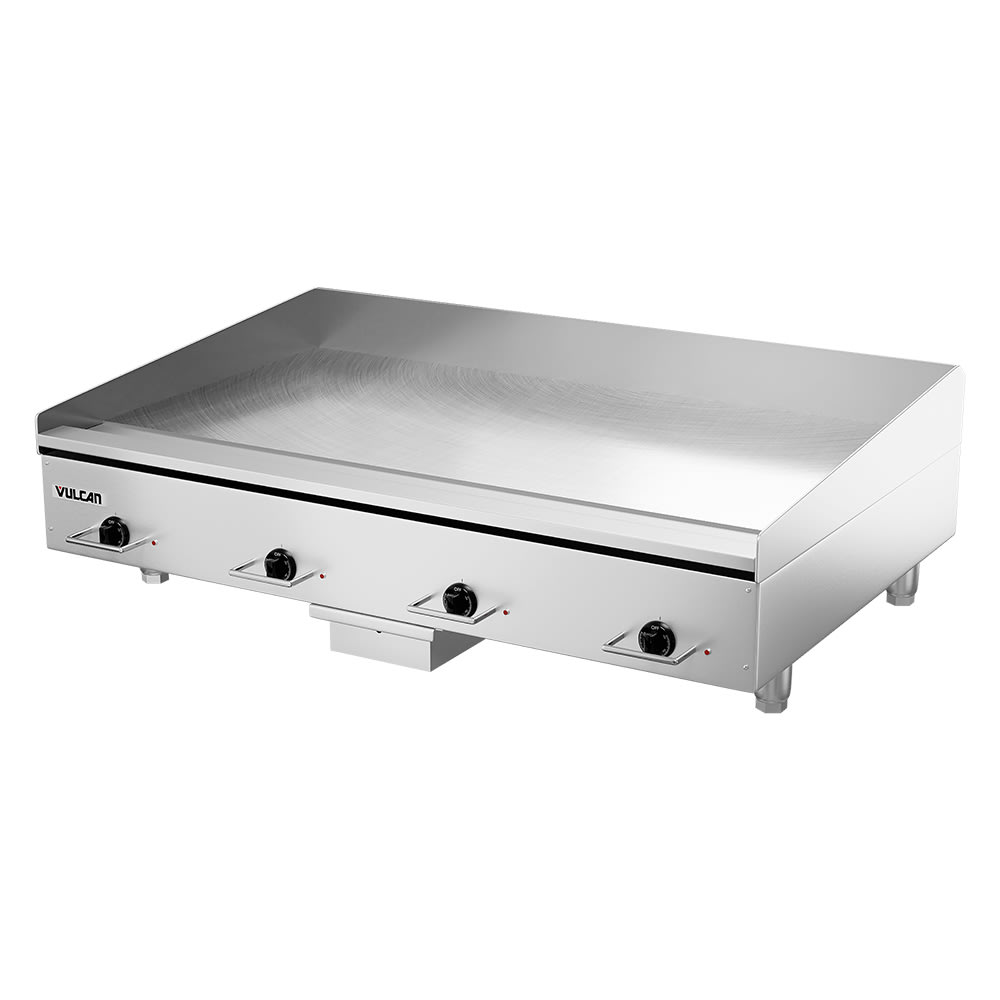

The Vulcan HEG48E HEG-E Series heavy-duty electric griddle fits on a countertop for versatile cooking. Able to adjust on its 4-inch-tall legs, the griddle is made of durable stainless steel to thrive in humid, bustling kitchen environments. Its 48-inch-wide by 24-inch-deep griddle plate has a 0.5-inch-thick steel cooking surface that gets as hot as 450 degrees Fahrenheit. Snap-action thermostatic controls line the front of the griddle, separately heating four 12-inch-wide sections for independent cooking results. This griddle’s plate is heated with two incoloy heating elements, and a cycling light is located beside each thermostat to alert the operator when the surface is hot.

Grease stays contained on top of the Vulcan HEG48E commercial griddle with a 4-inch-tall rear splash guard and two tapered side splash guards. Excess fat and oil drain into a grease trough located at the front of the griddle, and the grease drawer-located below the trough-collects as much as 1.5 gallons of grease. The griddle’s smooth surface is easy to wipe down, making it a low-maintenance, long-lasting item.

Product Details

• Part of the HEG-E series
• Stainless steel construction
• Temperature range: 200-450 degrees F
• 0.5-in.-thick steel plate
• 4 snap-action thermostats with cycling lights
• Heats in 12-in. sections
• 2 solid, sheathed, tubular incoloy heating elements
• 4 chrome thermostat knob guards
• (4) 4-in.-high adjustable legs
• 4-in.-high rear splash guard and 2 tapered side splash guards
• 3.5-in.-wide front grease trough
• 1.5-gal. grease drawer
• Side and rear clearance: 1 in.
• Bottom clearance: 4 in.

Dimensions & Utilities

• Griddle plate: 48 in. W x 24 in. D
• Overall: 48 in. W x 31.5 in. D x 15.3 in. H
• 39-58.5 A, 21.6 kW
• 240 V/50-60 Hz/3 ph

Heavy Duty Griddle, electric, countertop, 48″ W x 24″ D cooking surface, 1/2″ thick polished steel griddle plate, bottom mounted snap action thermostat every 12″, low profile, stainless steel front, sides, front top ledge with “Cool Bullnose”, front grease trough, 4″ back & tapered side splashes, 4″ adjustable legs, cCSAus, NSF
