Description

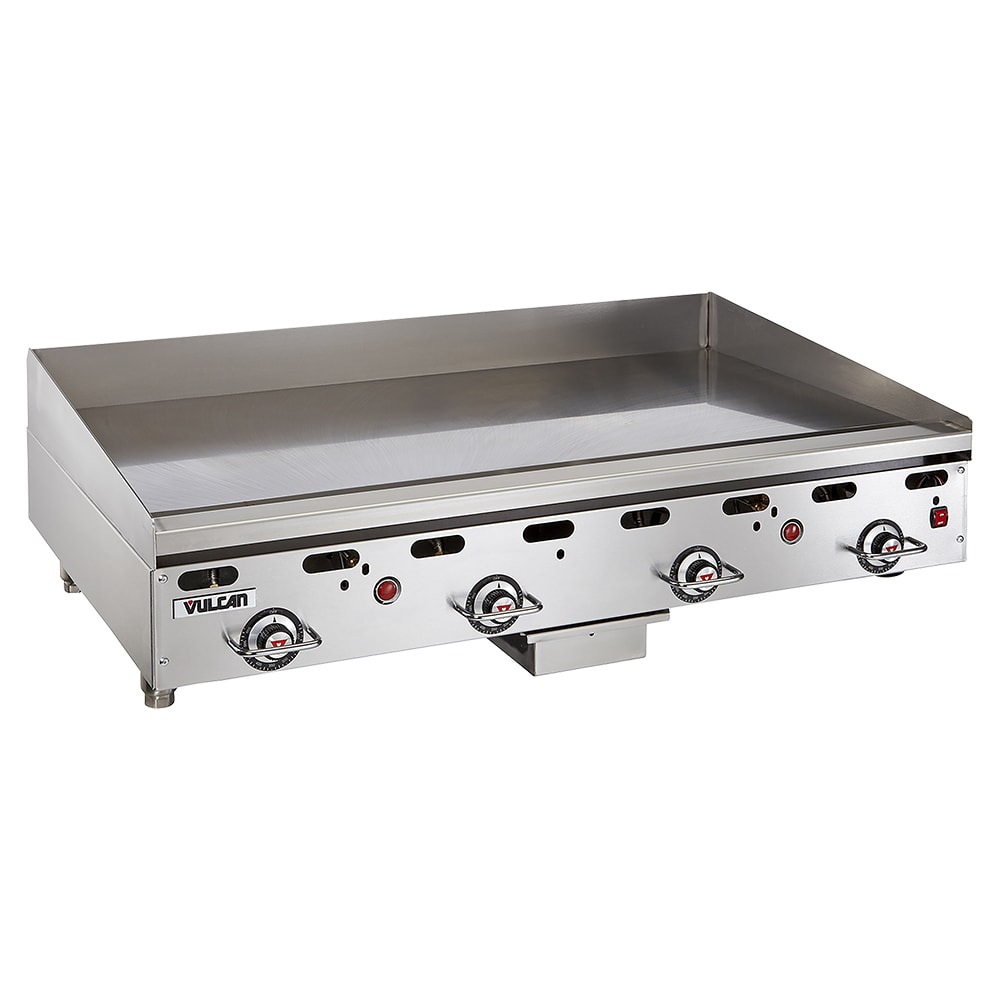

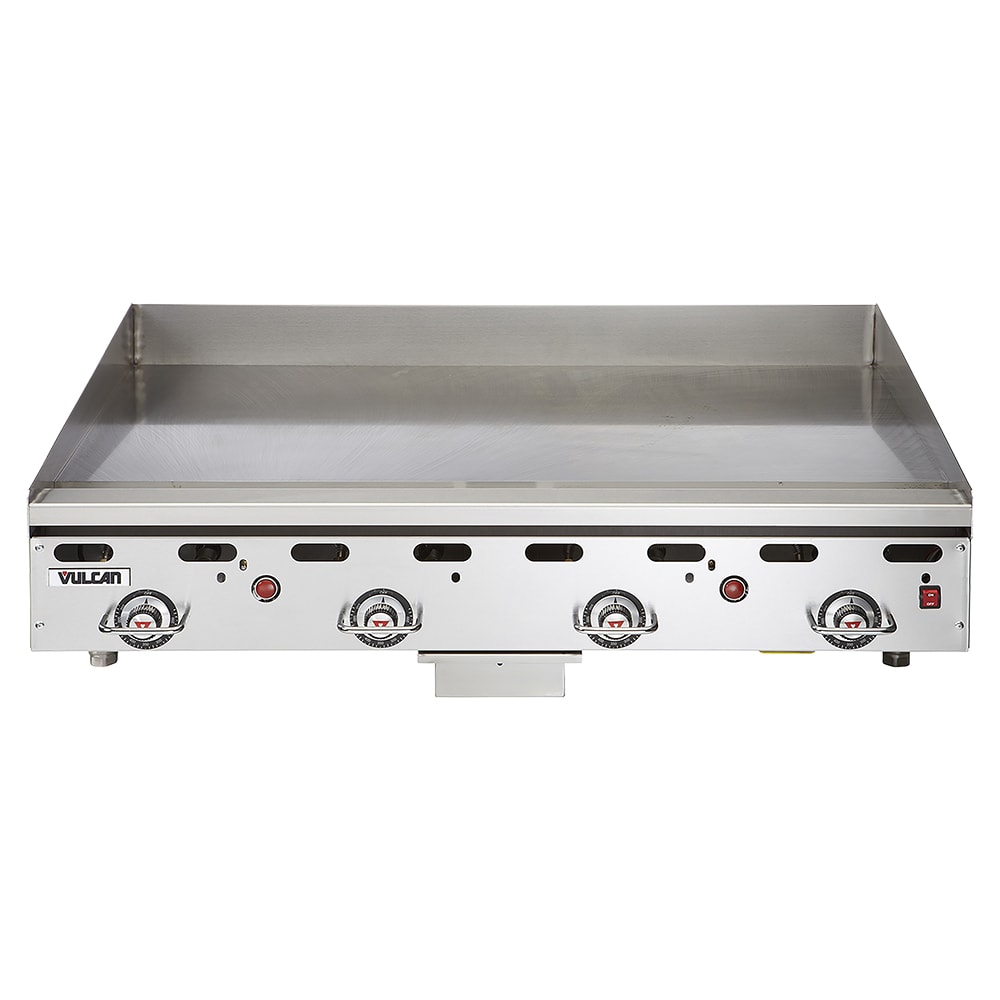

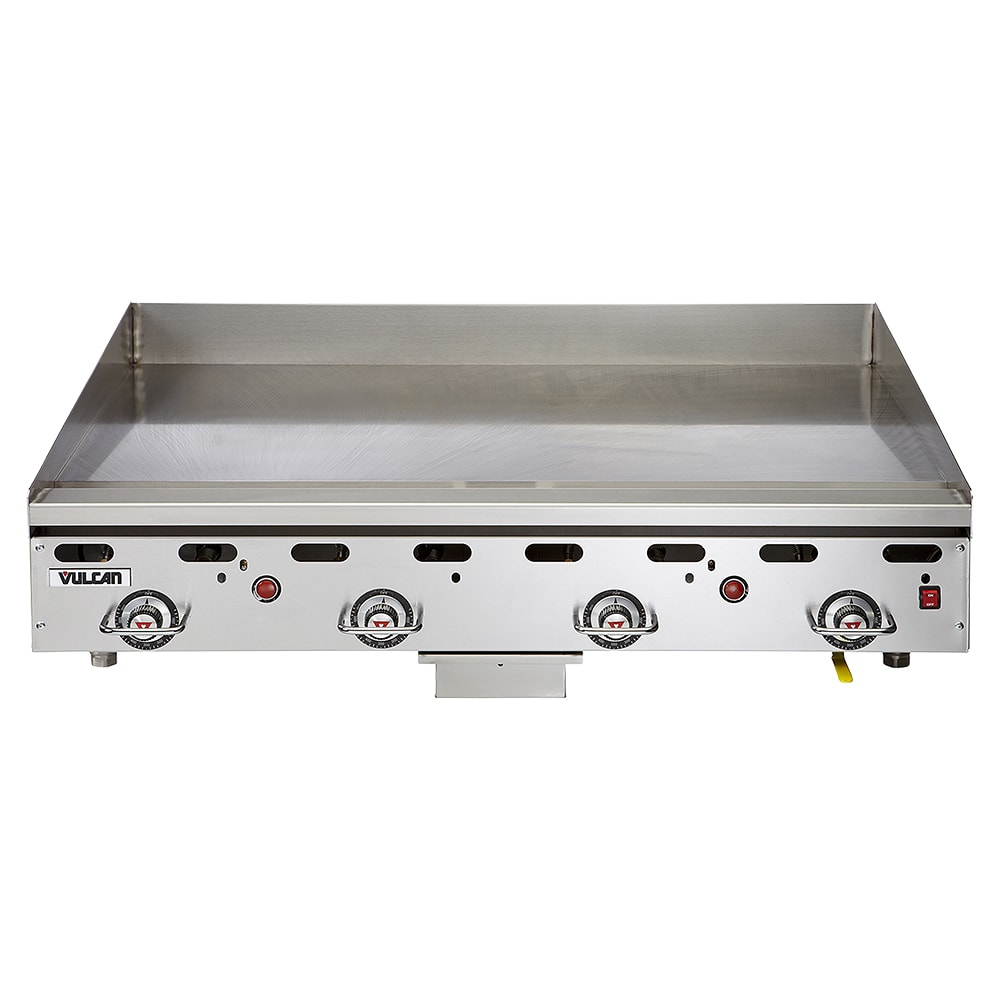

Vulcan 948RX-30
With a cook surface that stands just 11 inches high, the Vulcan 948RX-30 gas griddle remains comfortably accessible on most countertops and equipment stands. To ensure stability the griddle rests on four adjustable legs made of rust-resistant stainless steel. The gas inlet shuts off manually, while the pilot safety valve stops the flow of gas if the pilot light goes out to prevent leaks. Protecting counters and tabletops from scorching, heat shields are built into the unit’s bottom.
Operating with four separately controlled burners, the Vulcan 948RX-30 gas griddle can be used to create multiple cook zones so users can prepare a variety of different products. Giving it a smooth surface that reduces sticking and simplifies cleaning, the steel griddle plate is polished. During use, hot grease is channeled through the unit’s 31/2-inch-wide gutter to be stored in the 6-quart grease drawer. To prevent sagging or warping from heavy use, the stainless and aluminized chassis frame is fully welded for strength.
Product Details
- Countertop model
- Sides, front, and front top ledge are stainless steel
- Temperature range: 200-550 degrees F
- 4 U-shaped, aluminized steel burners
- Dual electric and manual burner ignition
- Pilot safety valve cuts gas flow to prevent leaks
- Separate cook zones enabled by individually controlled burners
- Manual gas inlet shut-off
- Embedded snap-action thermostats
- Heavy-duty chromed thermostat knob guards withstand high-volume use
- Stay-cool bull-nose design prevents burns
- Cleaning is streamlined by smooth 1-in.-thick polished steel griddle plate
- Wraparound splatter guard protects back and sides from grease splashes
- 12-ga. backsplash is 4 in. high
- 31/2-in.-wide grease gutter can fit most spatulas
- Leak-resistant chute and gutter are fully welded
- 6-qt. stainless steel drawer catches grease runoff
- Supported by fully welded stainless and aluminized steel chassis frame
- Bottom heat shields prevent countertops from burning
- Low-profile, 11-in. cooking height
- 4-in. adjustable legs
- 108,000 BTU
Dimensions & Utilities
- Cook surface: 48 in. W x 30 in. D
- Overall: 48 in. W x 371/2 in. D x 151/4 in. H
- 1 A
- 120 V/50-60 Hz/1 ph, NEMA 5-15P plug
- Rear gas connection and pressure regulator: 3/4 in.
- Uses natural gas or liquid propane
Heavy Duty Griddle, countertop, gas, 48″ W x 30″ D cooking surface, 1″ thick polished steel griddle plate, embedded mechanical snap action thermostat every 12″, millivolt pilot safety, electric spark or manual ignition, front manifold gas shut-off valve, low profile, stainless steel front, sides, front grease trough, 4″ back & tapered side splashes, 4″ adjustable legs, 108,000 BTU, CSA, NSF
