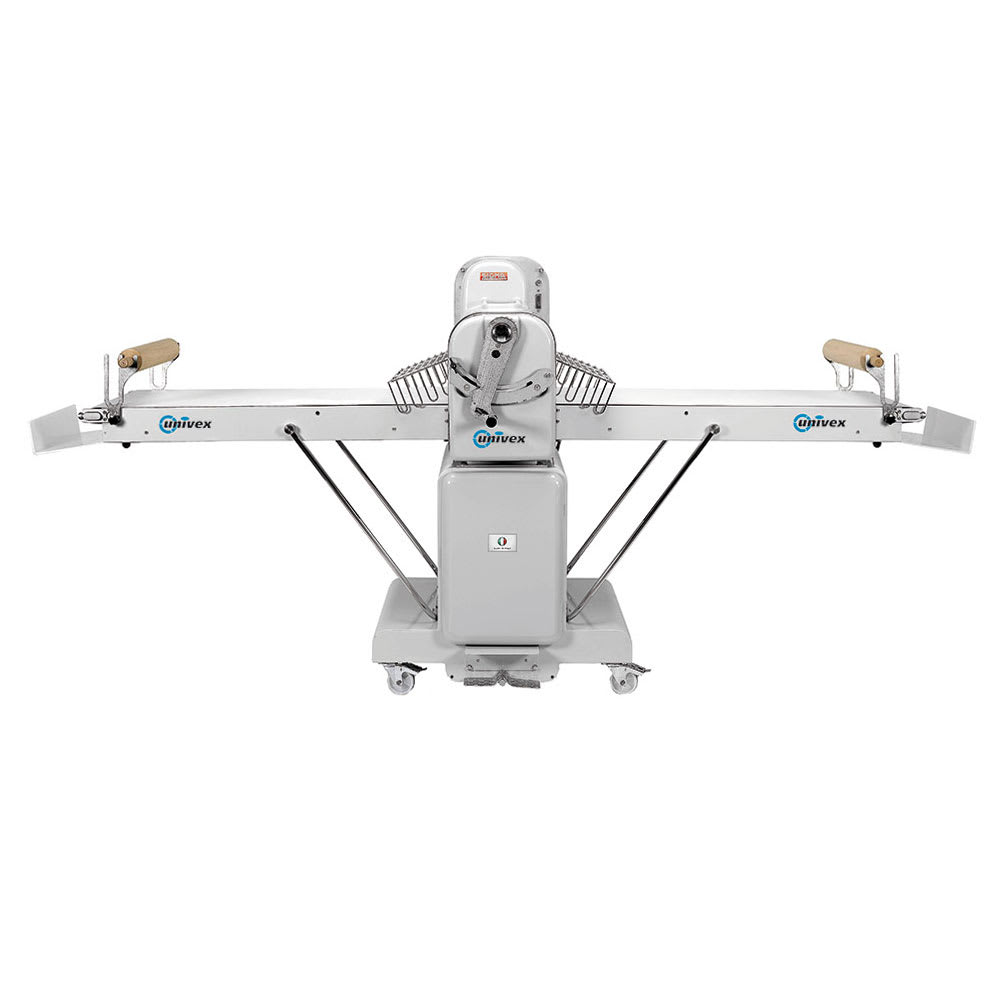

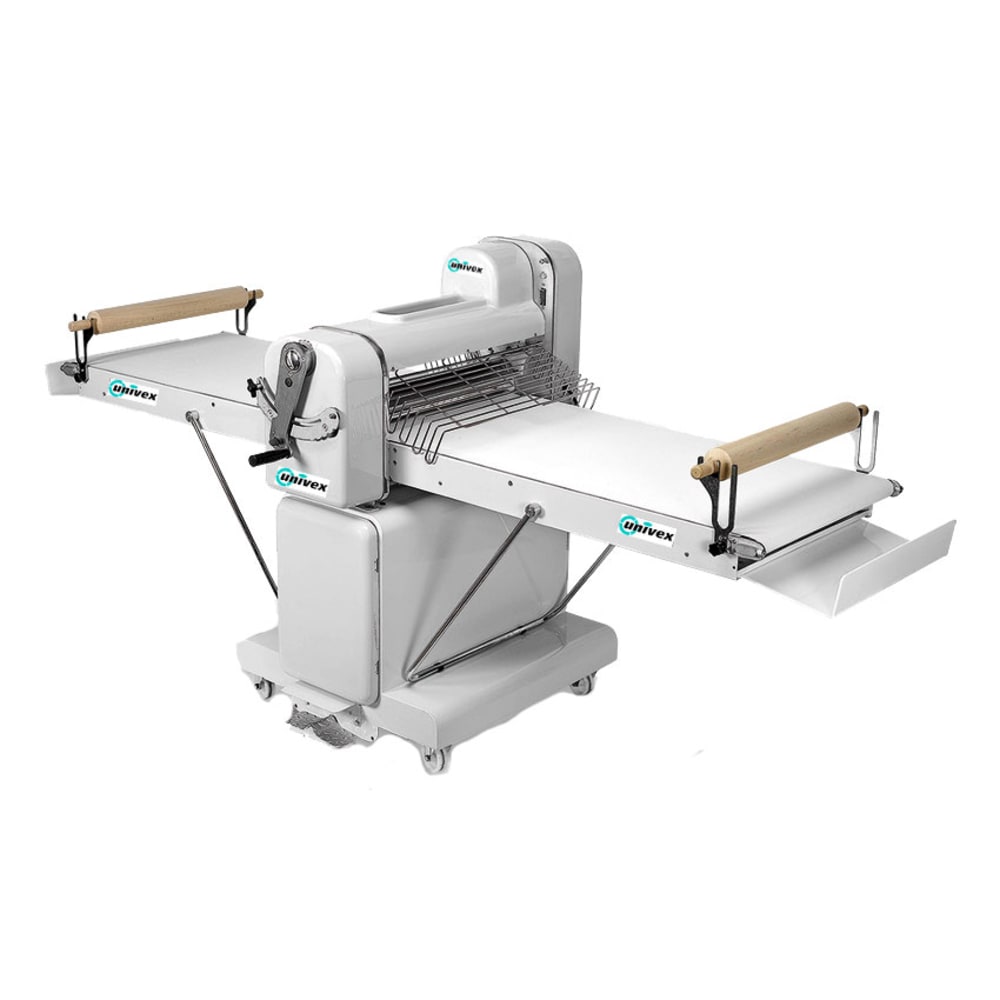

Univex SFG 500 T Floor Model 80 1/10″ Long Reversible Dough Sheeter, Chain Drive

The Univex SFG500T reversible dough sheeter has a direction control lever and foot pedal to direct the table in forward and reverse, and its pivoting arms can be removed for cleaning. To control the dough thickness, it is equipped with polished chrome cylinders that are adjustable to 1.9 inches. Dough thickness is operated by hand, while the carpet is controlled by foot pedal operation.

For storage and transportation, the Univex SFG500T reversible dough sheeter’s tables fold up, and its base provides a space for holding rolling pins and a designated area for storing flour. Dough can be sheeted on the two included rolling pins to efficiently transport product to the work area. A power switch, emergency stop switch control operation, and interlock switches protect the user from injury when the safety guard has been opened.

Product Details

• Dough sheeter is reversible
• Polished chrome cylinders
• Cylinders are adjustable to 1.9 in. to control dough thickness
• Thickness operated by hand and carpet operated by foot pedal (left to right)
• Direction control lever and foot pedal enable forward and reverse table directions
• Tables fold upright to simplify storage
• Chain drive and 19³/₄-in.-wide belt
• Includes 2 heavy-duty rolling pins
• Rolling pins can be stored in base
• Flour storage provides space for flour while sheeting
• Pivoting arms are removable
• Power switch and emergency stop switch control operation
• Interlock switches prevent accidents when safety guard is open

Dimensions & Utilities

• 76.5 in. L x 38.38 in. D x 50.13 in. H
• 2.6-7.35 A, 0.75 kW, ³/₄ HP
• 220 V/60 Hz/3 ph, NEMA 6-15P plug

From The Manufacturer

Reversible Dough Sheeter, floor model, 80-1/10″ long, hand operation for thickness & foot pedal operation for carpet (left-to-right), 0″ to 1.9″ adjustable hard chrome polished cylinders, chain drive, 19-7/10″ wide belt, start/stop buttons, folding tables, pivoting and removable arms, hardwood rolling pins, cord and plug, 3/4 hp, 220v/60/3-ph, 1.76 Amps, ETL

*Image may not depict product color, inclusions or accessories.
