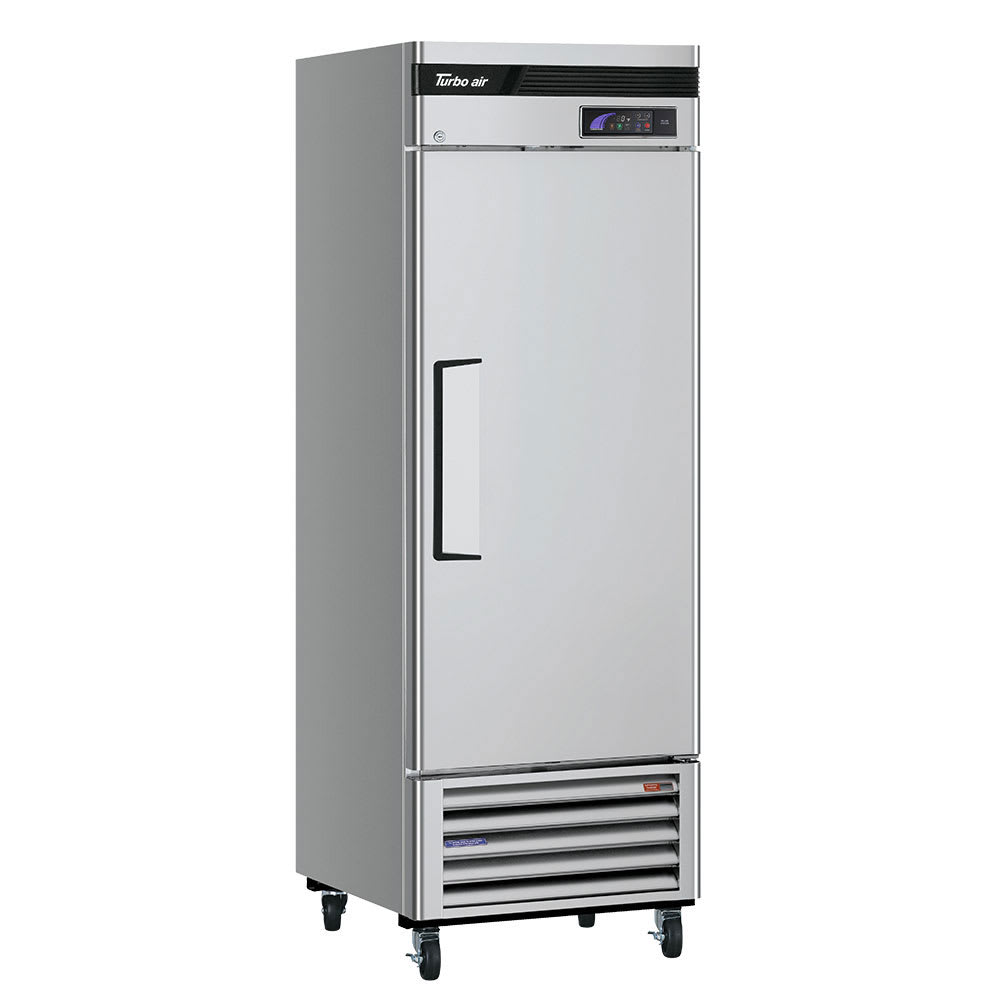

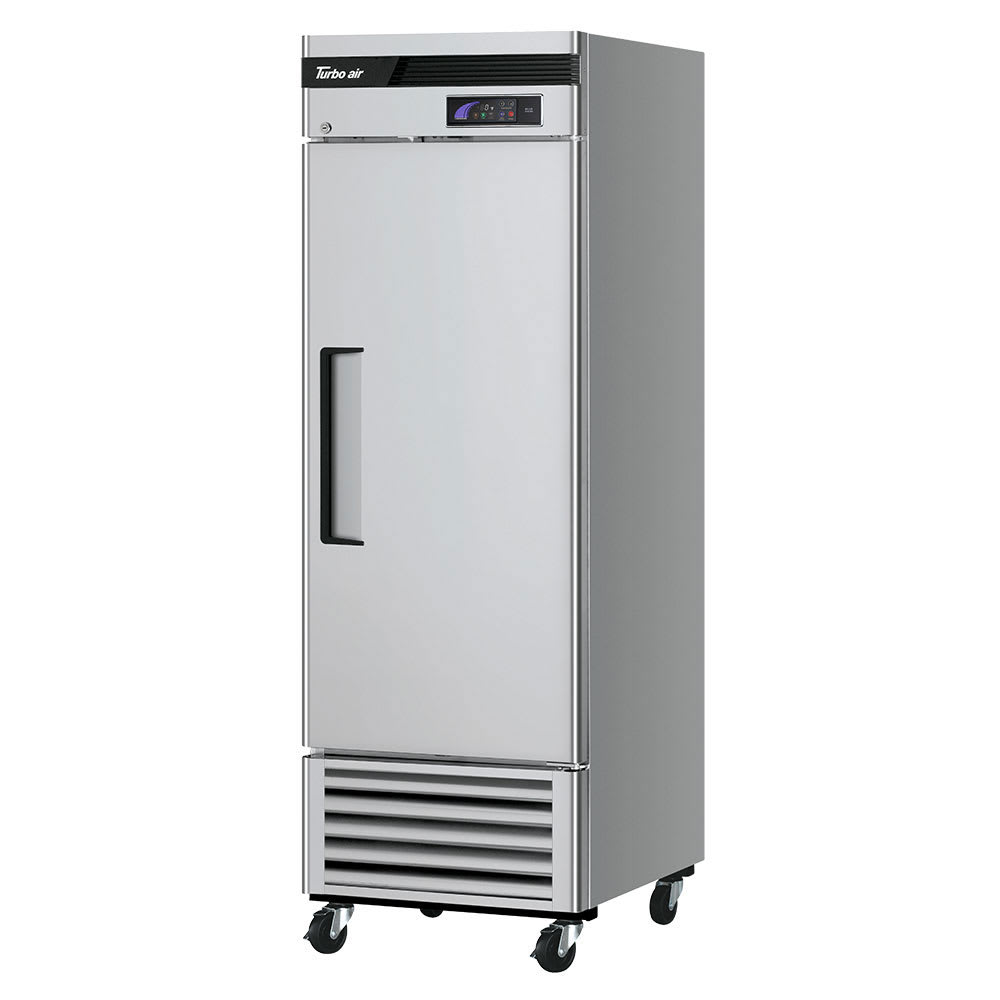

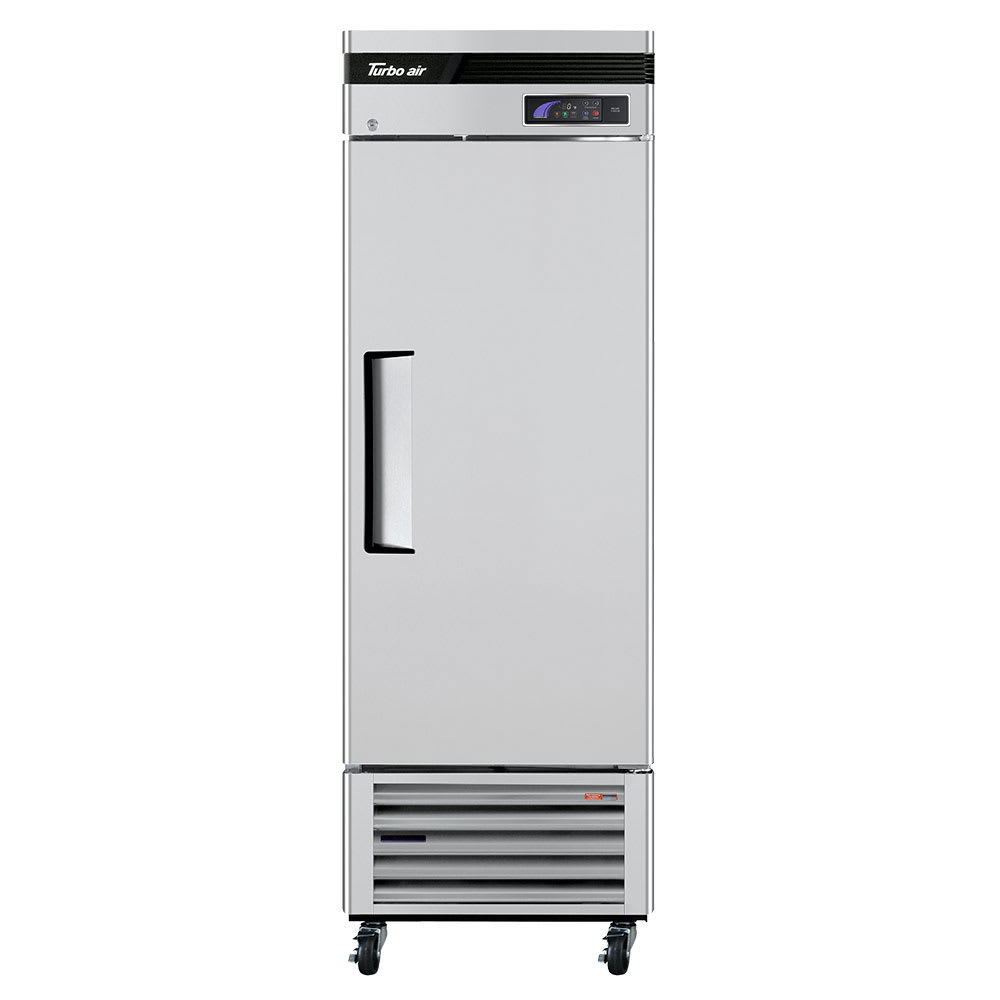

Turbo Air TSF-23SD-N 27″ One Section Reach In Freezer, (1) Solid Door, 115v

The Turbo Air TSF-23SD-N single-section reach-in freezer uses R290 hydrocarbon refrigerant to maintain holding temperatures between -10 and 0 degrees Fahrenheit. The unit’s stainless steel interior has three stainless steel shelves and LED lighting that provides excellent product visibility throughout. The exterior sides and front of the unit are also made of corrosion-resistant stainless steel, while the exterior top, bottom, and back are made of durable galvanized steel.

The Turbo Air TSF-23SD-N one-section reach-in freezer has a digital control system that provides a clear display of the set temperature. It uses a smart defrost system that only runs when necessary, which can save energy over traditional timed defrost systems. The unit features the proprietary Turbo Freeze feature that can be activated to allow the compressor to run for 2 hours continuously, quickly dropping the temperature inside the cabinet. That can help protect food quality and safety when the unit has been open for a while for loading and when non-frozen food is added to the cabinet. An automatic fan motor delay shuts the fan off when the door is opened to prevent warm air from being sucked into the cabinet. If the door is left open, an alarm sounds to alert staff members.

Product Details

• 3 stainless steel shelves
• LED lights brighten the interior for visibility
• Stainless steel interior resists corrosion
• Door pressure release device eliminates vacuum pressure for easier opening
• Door is self-closing to retain cold, but stays open when moved past 90 degrees
• Alarm sounds if door is left open for several minutes
• Lock on the door limits cabinet access to prevent theft
• One-piece magnetic door gaskets are easy to remove for cleaning and replacment
• Stainless steel exterior is corrosion resistant and easy to clean
• Galvanized exterior top, bottom, and back
• CFC-free, high-density polyurethane insulation provides rigidity to structure and helps retain cold air
• (4) 4-in. swivel casters, 2 with locks

Self-contained Refrigeration System

• R290 hydrocarbon refrigerant
• Temperature range: -10 and 0 degrees F
• Compressor and condenser in bottom of unit
• Proprietary device brushes dust off the condenser coils 2-3 times a day to prevent premature system breakdowns
• Coating on the evaporator provides corrosion resistance

Digital Control System

• Digital display provides a clear readout of the cabinet temperature
• Turbo Freeze function sets the compressor to run for 2 hrs. to quickly pull down temperature
• Smart defrost system only runs when necessary to save energy
• Automatic fan motor delay shuts the fan off when the door is open to prevent warm air from being drawn inside
• Alarm sounds if the door is left open for several minutes
• Self-diagnosis program interprets the condition of the refrigeration system
• Early warning system alerts operator to issues before a malfunction occurs

Dimensions & Utilities

• Shelves: 22 in. W x 23¹/₂ in. D
• Interior: 23 in. W x 26¹/₄ in. D x 60 in. H
• Overall: 27 in. W x 30³/₈ in. D x 83¹/₄ in. H
• 4.8 A, ¹/₂ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Super Deluxe Freezer, reach-in, one-section, 19.03 cu. ft., self-contained, stainless steel front & side, galvanized back & top of the cabinet, stainless steel interior, (1) right hinged solid door with recessed handle, (3) adjustable stainless steel wire shelves, exterior LED digital thermometer, door-open alarm beeps, self-diagnostic monitoring system, smart defrost, automatic fan motor delays, door pressure release device, LED interior lighting, self-cleaning condenser equipped, door locks, bottom mount compressor, R290 Hydrocarbon refrigerant, 1/2 HP, 115v/60/1-ph, 4.8 amps, NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
