Description

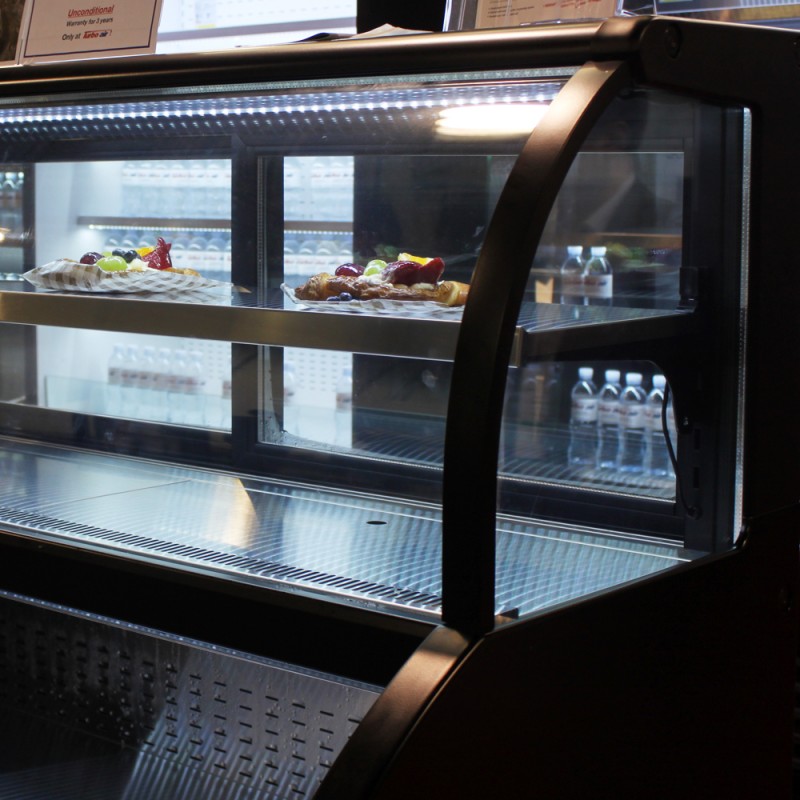

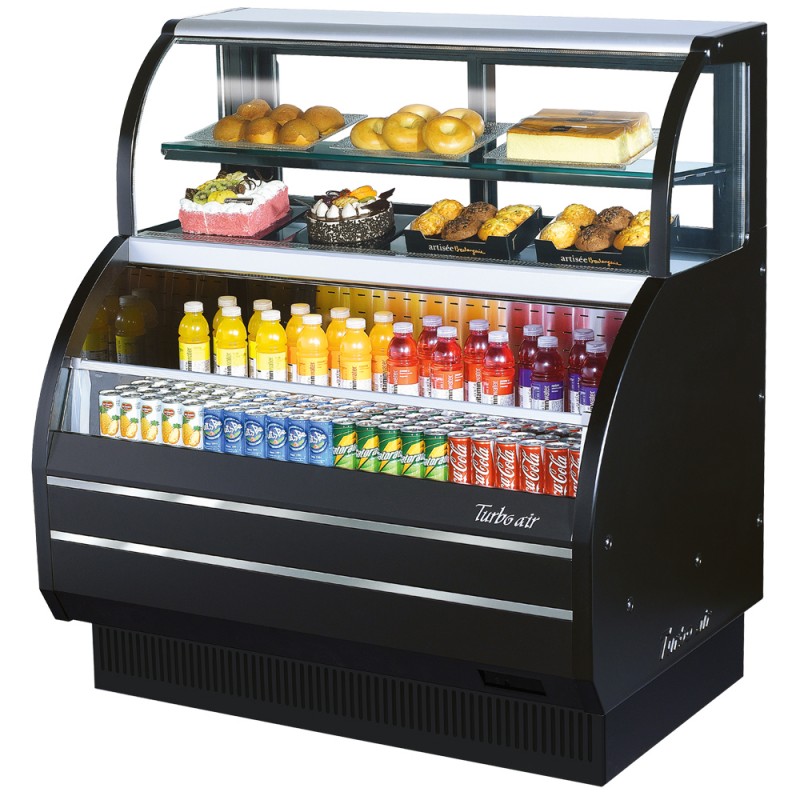

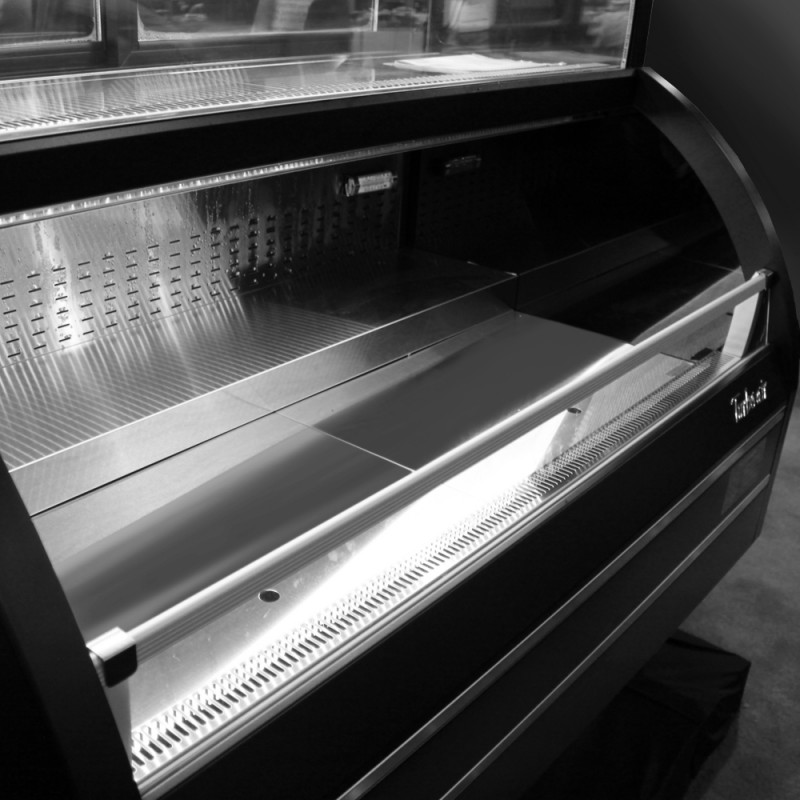

Four levels hold and display products in the Turbo Air TOM-W-50SB-N horizontal combination case. Both the open-air bottom compartment and the top bakery case are refrigerated, enabling stores and restaurants to increase impulse sales by displaying chilled and prepackaged products in high-traffic areas. The bottom-mounted, self-contained refrigeration system doesn’t require more plumbing to operate, simplifying installation. As an additional labor-saving feature, the condenser is self-cleaning—a fine mesh filter and brush automatically trap and remove dust, so employees and maintenance workers don’t have to.
The Turbo Air TOM-W-50SB-N refrigerated merchandiser has an attractive design that blends modern contours with structural integrity. The bottom compartment’s front shield and the curved wall of the bakery case are made of break-resistant tempered glass, and the unit exterior is made of a rust-resistant black exterior. Furthermore, customers can peruse their options with LED cabinet lighting.
Product Details
- 5.6-cu.-ft. top capacity, 8.5-cu.-ft. bottom capacity
- Customer-friendly design with a glass front shield and curved top case increase impulse buys
- Both sections are refrigerated to hold chilled prepackaged and bakery products
- LED lighting distinguishes products
- Anti-rust, black exterior with durable, stainless steel shelves
- Standard back guard and perforated back wall keep products fresh with improved airflow
- Simple plug-in installation requires no plumbing
- Hot gas condensate system
- Corrosion-resistant evaporator coating
- Uses eco-friendly R-290 hydrocarbon refrigerant
- Self-cleaning condenser brushes away dirt to prevent system failure
- Front air intake and rear air discharge
- Solar-powered digital thermometer supports temperature surveillance
- Electronic defrost and thermostat
- Foamed-in polyurethane insulation retains cold air and strengthens the structure
- Maximum ambient temperature for operation: 75 degrees F
- Maximum relative humidity for operation: 55 percent
- Works best when stationed away from fans, HVAC vents, and doorways that block airflow
Dimensions & Utilities
- Top interior: 475⁄8 in. W x 13 in. D x 153⁄4 in. H
- Bottom interior: 475⁄8 in. W x 24 in. D x 137⁄8 in. H
- Overall: 507⁄8 in. W x 34 in. D x 561⁄2 in. H
- 6.9 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 591⁄8-in. cord with a NEMA 5-15P plug
Manufacturer | Turbo Air |
Air Exhaust | Back |
Color | Black |
Compressor Location | Bottom |
Compressor Type | Self Contained |
Depth (in) | 34 |
Design | Horizontal |
Height (in) | 56 1/2 |
Hertz | 60 |
Number of Levels | 4 |
Phase | 1 |
Product Type | Commercial Refrigeration |
Special Features | Curved Glass |
Special Features | Dual Service |
Special Features | LED Lighting |
Voltage | 115 |
Warranty | 2 year P&L / 5 year compressor |
Width (in) | 50 7/9 |
Product | Open Air Coolers |
Weight | 639.00 |
