Description
Self-Cleaning Condenser
The accumulation of dust in the condenser can cause the failure or breakdown of refrigerators. Refrigerators run normally until they reach a certain level of accumulation. At some point, when they are over the limit, their performance drops quickly resulting in damage to or disposal of the stored products in refrigerators. The Self-Cleaning Condenser device keeps the condenser clean and prevents system failure by automatically brushing daily.
Hydrocarbon refrigerants (R-290)
With innovative and eco-friendly technology, Turbo Air brings you hydrocarbon refrigerators designed to meet DOE’s Energy Conservation Standards in 2017 and to use EPA’s SNAP Program approved HC refrigerants. Hydrocarbon refrigerants do not deplete the ozone layer and have a very low contribution to global warming (ODP-0, GWP-3).
Modern design

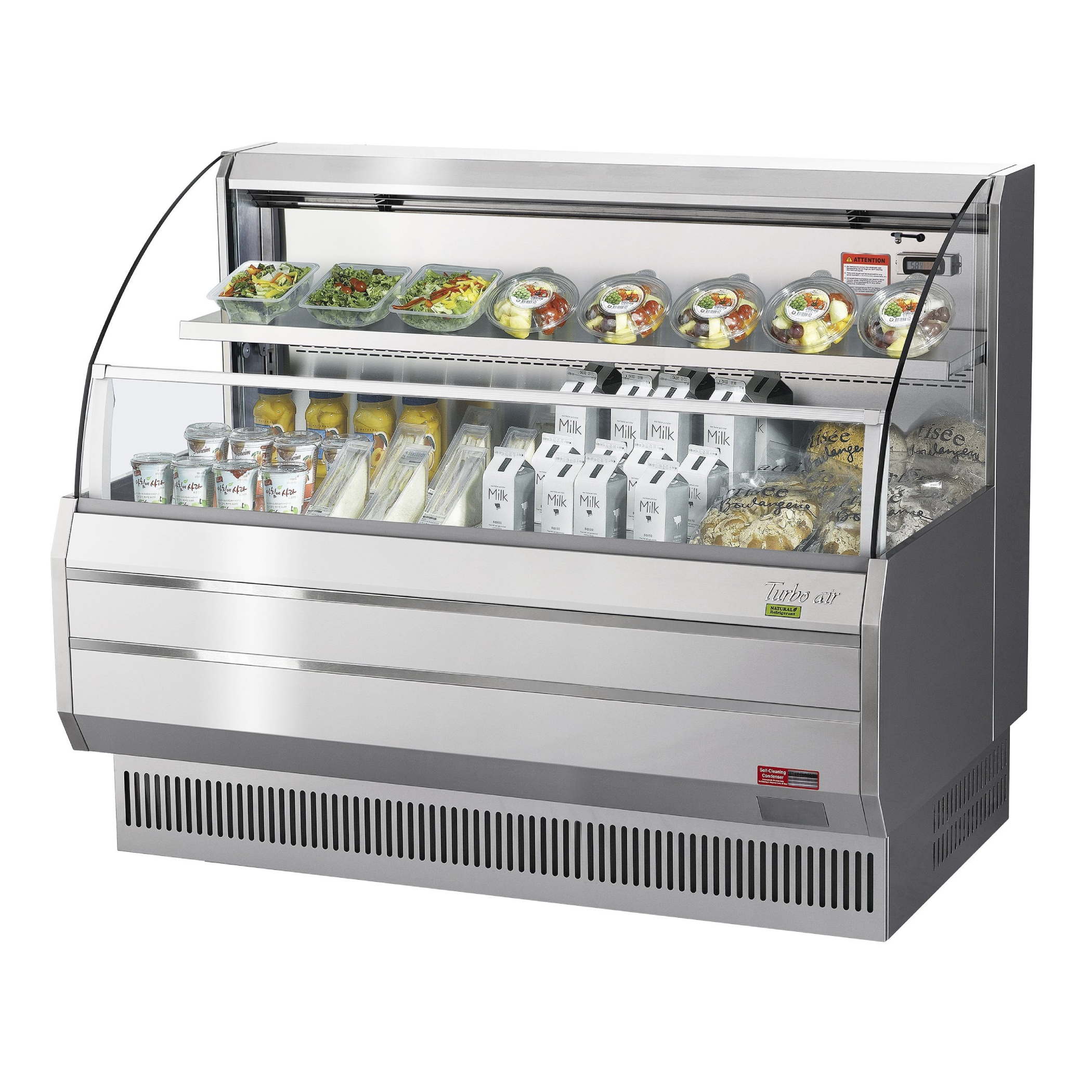

By integrating great contours with durable structures, our modern style product designs are user-friendly while maintaining the highest product visibility and aesthetics. Safety reinforced tempered glass front shield and side walls optimize the merchandiser’s display effects of fresh salads, sandwiches, desserts, and beverages. Its elegant contemporary euro design will enhance any store application. Ideal for eye-catching displays and convenient access with fast service in high traffic areas.
Standard Features
- Simple plug-in installation
- Patented self-contained system, no plumbing required
- Solar powered digital thermometer
- Digital electronic thermostat with defrost control
- LED interior lighting
- Standard back-guard improves airflow
- 300 series stainless steel interior standard including back wall and deck pans
- Stainless steel solid shelves standard
- Perforated interior back wall and & top for improved air flow
- Foamed with polyurethane, high-density cell insulation (CFC free)
- Front air intake and rear air discharge
- Stainless steel exterior and interior
Recommended operating conditions
TOM models are designed to operate in an environment where temperature & humidity do not exceed 75°F and 55% respectively. Units should not be installed near HVAC vents, fans, or doorways that will disrupt the air curtain and compromise the function of the cabinet. Air curtain models will run most efficiently when completely loaded with product. When used as a built-in, required clearance for the rear is 4” and the top is 5”.
| Amps | 11.3 |
|---|---|
| Brand | Turbo Air |
| Capacity (Cu Ft) | 12.3 |
| Color | Stainless Steel |
| Compressor Location | Bottom Mounted |
| Cord Length (inch) | 118 1/8 |
| Exterior Material | Stainless Steel |
| Hertz | 60 |
| Horsepower (HP) | 3/4 x 2 |
| Features | Solar Digital Thermometer LED Lighting Self Cleaning Condenser |
| Interior Depth (Inch) | 24 |
| Interior Height (Inch) | 17 1/2 |
| Interior Width (Inch) | 60 3/4 |
| Interior Material | Stainless Steel |
| Exterior Depth (Inch) | 34 5/8 |
| Exterior Height (Inch) | 46 1/8 |
| Exterior Width (Inch) | 63 1/4 |
| Nema Plug | 5-20P |
| Number of Shelves | 1 |
| Refrigerant | R290 |
| Voltage (V) | 115 |
| Weight (lbs) | 583 |
