Description

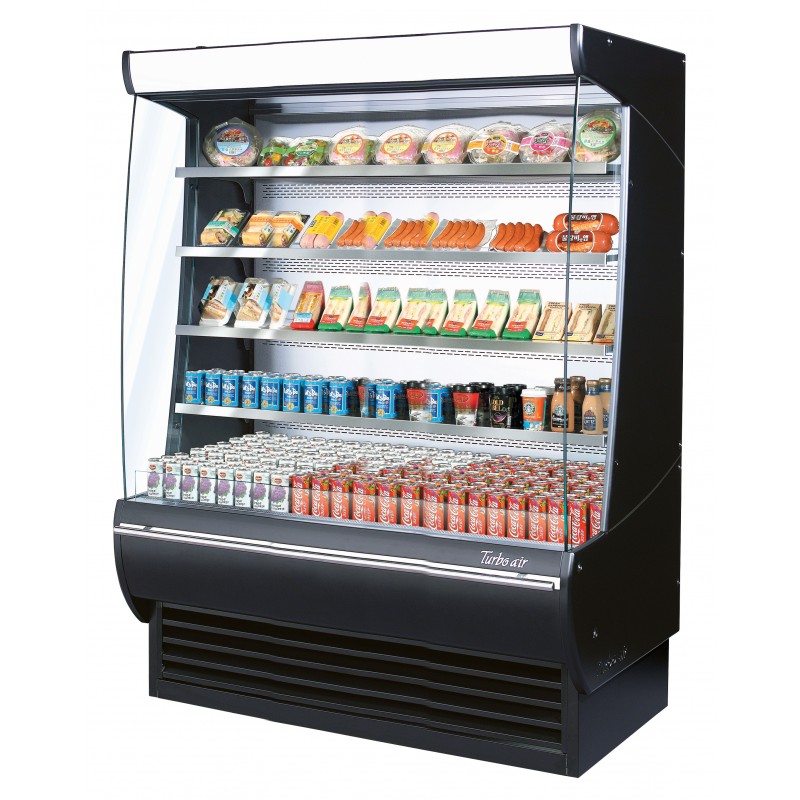

The Turbo Air TOM-60DXB-N vertical open display case maintains cold temperatures with R-290 refrigerant; temperatures are monitored by a solar-powered digital thermometer. The refrigeration system creates an air curtain to ensure products stay in the safe zone. Since the refrigeration system is self-contained, the components are accessible for maintenance and the unit can be easily installed. Dust buildup on the condenser is removed every day by a self-cleaning device, preventing premature system failures caused by overheating.
Four 571⁄4-inch-by-16-inch shelves hold the displayed product, while the glass front shield and side walls provide an unobstructed view of the contents from any angle. The interior of the Turbo Air TOM-60DXB-N vertical open display case is illuminated by LED lights, so products are easy to see. Since the front of the unit is open, customers can skip the step of opening a door, making it quick and simple to grab what they want and go. Both of these design features can help increase impulse purchases.
Product Details
- Comes with a black exterior to suit a number of businesses
- Tempered glass front shield and walls offer a clear view of the product from various angles
- LED lighting keeps the interior lit up for visibility
- 4 shelves each measure 571⁄4 in. W x 16 in. D
- Improved airflow with the perforated interior back wall and top
- Night curtain is included to take pressure off the air curtain
- High-density polyurethane insulation adds structure while retaining cold air
Self-Contained Refrigeration System
- Cold temperatures are maintained by the R-290 refrigerant
- Interior temperatures are monitored with a solar-powered digital thermometer
- Digital electronic thermostat has a defrost control
- System failures caused by dust accumulation are prevented since the condenser is automatically cleaned daily
- Corrosion-resistant evaporator coating provides durability
- Easily install and maintain the self-contained system
Ideal Operating Conditions
- Designed to run in environments that do not exceed 75 degrees F
- Designed to run in environments that do not exceed 55 percent humidity
- Air curtain is disrupted if installed near fans, doorways, or HVAC vents
- Operates efficiently when fully loaded with product
Dimensions & Utilities
- Interior: 571⁄4 in. W x 211⁄4 in. D x 483⁄4 in. H
- Overall: 60 in. W x 341⁄4 in. D x 787⁄8 in. H
- 15.5 A, (2) 3⁄4 HP
- 115 V/60 Hz/1 ph, NEMA 5-20P plug
Manufacturer | Turbo Air |
Air Exhaust | Back |
Color | Black |
Compressor Location | Bottom |
Compressor Type | Self Contained |
Depth (in) | 34 1/4 |
Design | Vertical |
Height (in) | 78 7/8 |
Hertz | 60 |
Includes | Night Curtain |
Number of Levels | 5 |
Phase | 1 |
Product Type | Commercial Refrigeration |
Rating | Better |
Service Type | Self Service |
Special Features | Extra Depth |
Special Features | Glass Sides |
Special Features | LED Lighting |
Voltage | 115 |
Warranty | 2 year part and labor warranty / 5 years on compressor |
Width (in) | 60 |
Product | Open Air Coolers |
Weight | 822.00 |
