Description

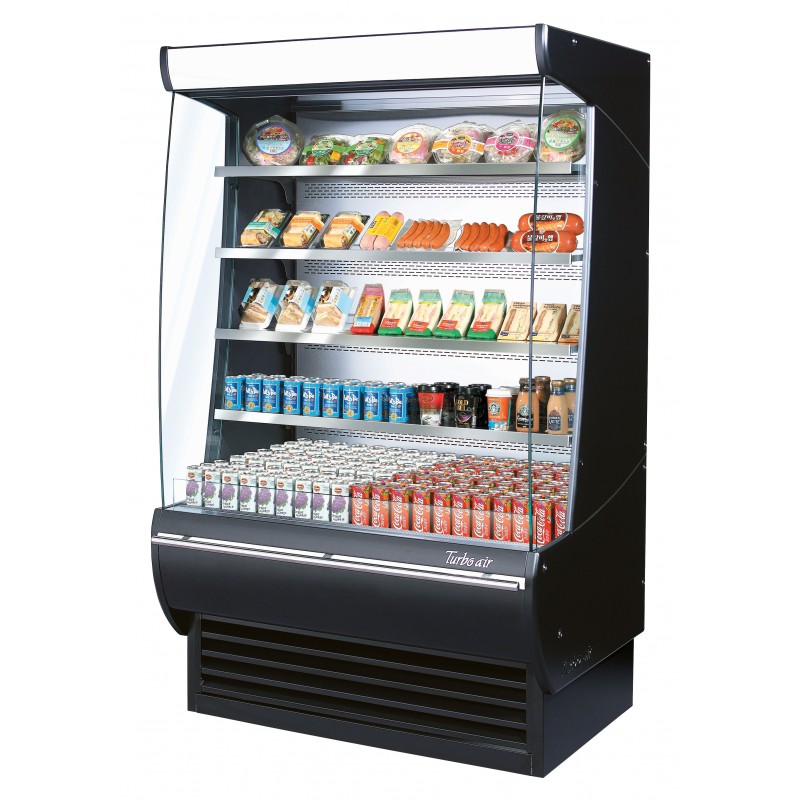

The Turbo Air TOM-48DXB-N vertical open display case has a glass front shield and side walls, so customers can easily see products. The modern, black design creates an eye-catching display that attracts customers and offers convenient access to products. It works well for merchandising drinks, premade salads, and other packaged items in convenience stores and grab-and-go applications. These items are held on five levels and are illuminated by LED lighting.
The Turbo Air TOM-48DXB-N vertical open display case’s cold temperatures are provided by R-290 hydrocarbon refrigerant and a self-contained system that requires no plumbing. A solar-powered digital thermometer and digital electronic thermostat with defrost control work to maintain these temperatures. Dust buildup is removed from the condenser two to three times a day by a self-cleaning brush; this prevents system failures caused by an overheated compressor.
Product Details
- Modern design with a black exterior
- Tempered glass front shield and walls offer a clear view of the product
- (4) 451⁄4-in. x 16-in. shelves hold packaged items
- Product is lit up by interior LED lighting
- Interior back wall and top are perforated for proper air circulation
- Air curtain has the pressure taken off it with the night curtain
- Retains cold air with high-density polyurethane insulation
- 115 V/60 Hz/1 ph, 15.5 A, (2) 3⁄4 HP, NEMA 5-20P plug
- Interior Dimensions: 451⁄4 in. W x 211⁄4 in. D x 483⁄4 in. H
- Overall Dimensions: 48 in. W x 341⁄4 in. D x 787⁄8 in. H
Self-Contained Refrigeration System
- R-290 refrigerant maintains cold temperatures
- Solar-powered digital thermometer monitors the interior temperature
- Digital electronic thermostat has a defrost control
- Dust is removed from the condenser every day with a self-cleaning brush to prevent compressor overheating and system failures
- Durability is added to the evaporator with its corrosion-resistant coating
- Self-contained system is easy to install since plumbing is not required
Operating Condition Recommendations
- Designed to operate in an environment that does not exceed ambient temperatures of 75 degrees F
- Designed to operate in an environment that does not exceed 55 percent relative humidity
- Should not be installed near doorways, fans, or HVAC vents since these can disrupt the air curtain
- Operates most efficiently when it is fully stocked with product
| Manufacturer | Turbo Air |
| Air Exhaust | Back |
| Color | Black |
| Compressor Location | Bottom |
| Compressor Type | Self Contained |
| Depth (in) | 34 1/4 |
| Design | Vertical |
| Height (in) | 78 7/8 |
| Hertz | 60 |
| Includes | Night Curtain |
| Number of Levels | 5 |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
| Special Features | Extra Depth |
| Special Features | Glass Sides |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 2 year part and labor warranty / 5 years on compressor |
| Width (in) | 48 |
| Product | Open Air Coolers |
| Weight | 727.00 |
