Description

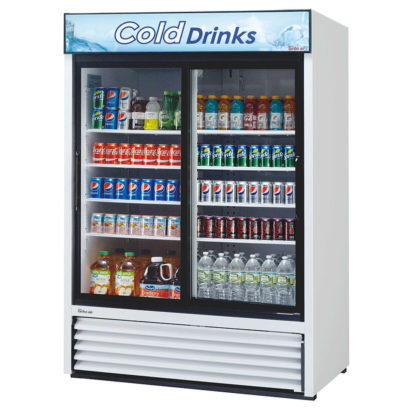

The Turbo Air TGM-48R-N glass door merchandiser holds beverages on eight adjustable wire shelves. The shelves have a polyethylene coating, so they are heavy duty and corrosion resistant. Although the unit can accommodate as many as 560 bottles, it should only be loaded with 448 bottles to allow for proper air circulation. An LED merchandising panel makes it easy to promote the products, while LED lighting illuminates the interior for enhanced product visibility.
A self-contained refrigeration system, R-290 hydrocarbon refrigerant, and foamed-in-place polyurethane insulation hold beverages at a temperature range of 33 to 38 degrees Fahrenheit. The Turbo Air TGM-48R-N glass door merchandiser’s fan control shuts the motor off if an increase in temperature is detected, such as when the door is opened; this feature helps conserve energy and extends the life of the compressor. The condensate system is corrosion resistant to prevent issues like overflowing water and leaking refrigerant.

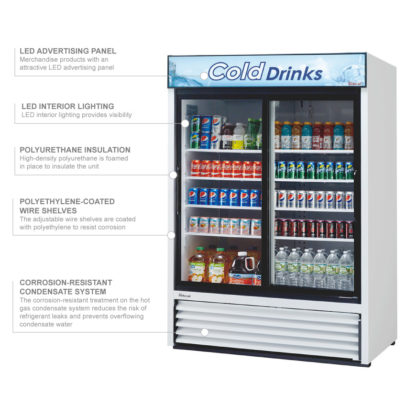

Product Details
- 560 full line bottle capacity
- 448 load line bottle capacity

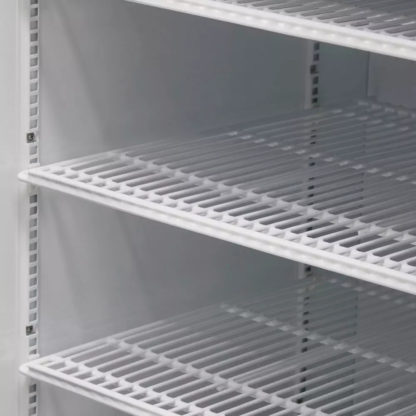

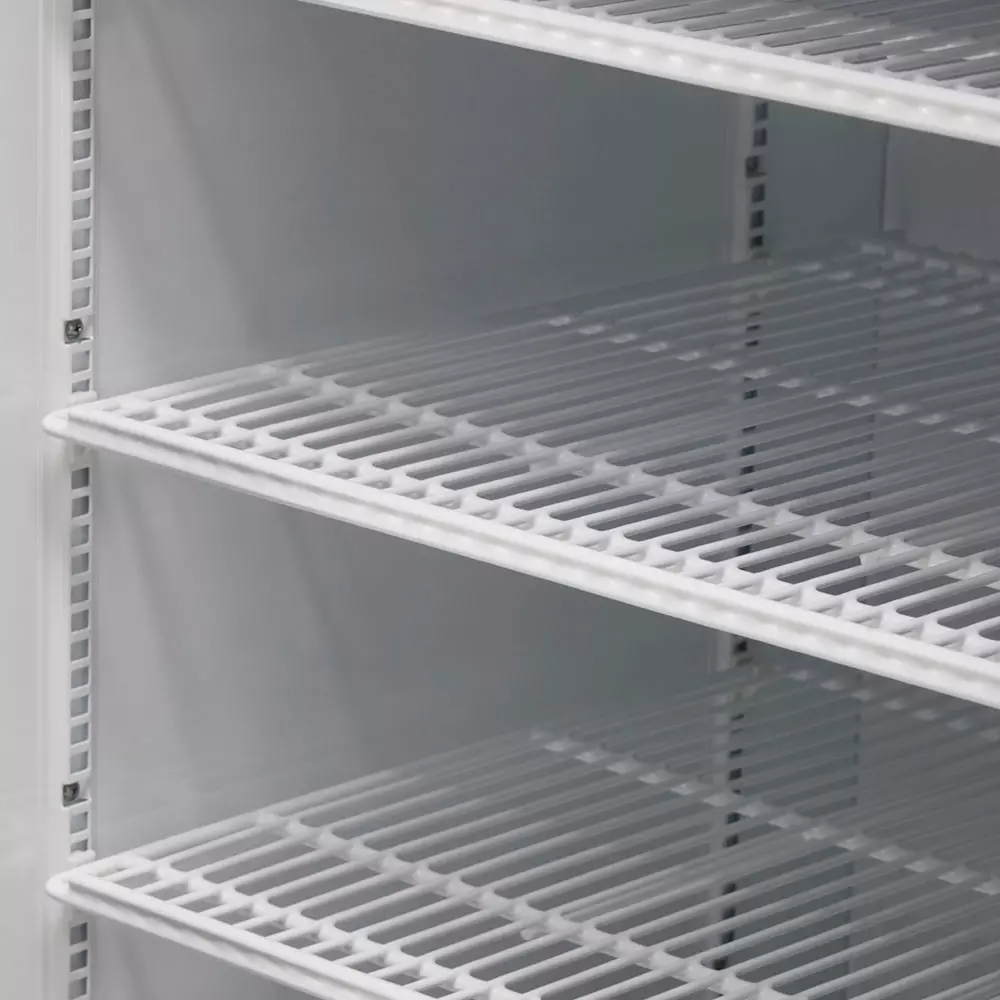

- Includes (8) 251⁄4-in. x 233⁄8-in. adjustable wire shelves
- Polyethylene coating on the shelves provides corrosion resistance
- LED lighting keeps the interior illuminated for product visibility
- Merchandise products with the LED advertising panel
- CFC-free polyurethane insulation retains cold air while creating structure
- 2 doors with their lightweight design provide smooth opening and closing
- Double-pane glass on the doors is Low-E to keep warm temperatures out of the cabinet
- R-290 hydrocarbon refrigerant keeps temperatures between 33-38 degrees F

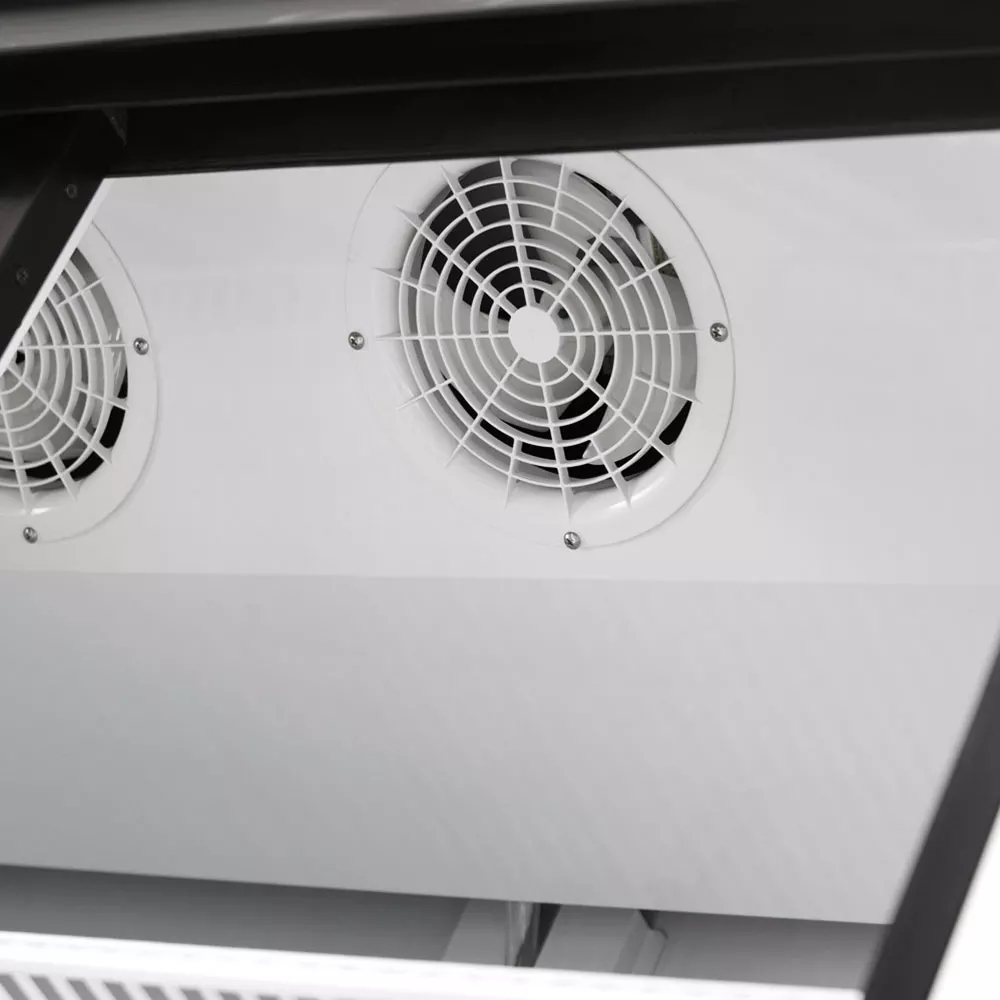

- Fan motor stops running when a temperature increase is detected, so warm air is not circulated in the cabinet
- Hot gas condensate system resists corrosion to reduce the risk of refrigerant leaks while improving efficiency
- Evaporator is coated to resist corrosion
Dimensions & Utilities
- Interior: 527⁄8 in. W x 241⁄2 in. D x 611⁄4 in. H
- Overall: 557⁄8 in. W x 30 in. D x 79 1⁄8 in. H
- 5.7 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
Manufacturer | Turbo Air |
Product Type | Commercial Refrigeration |

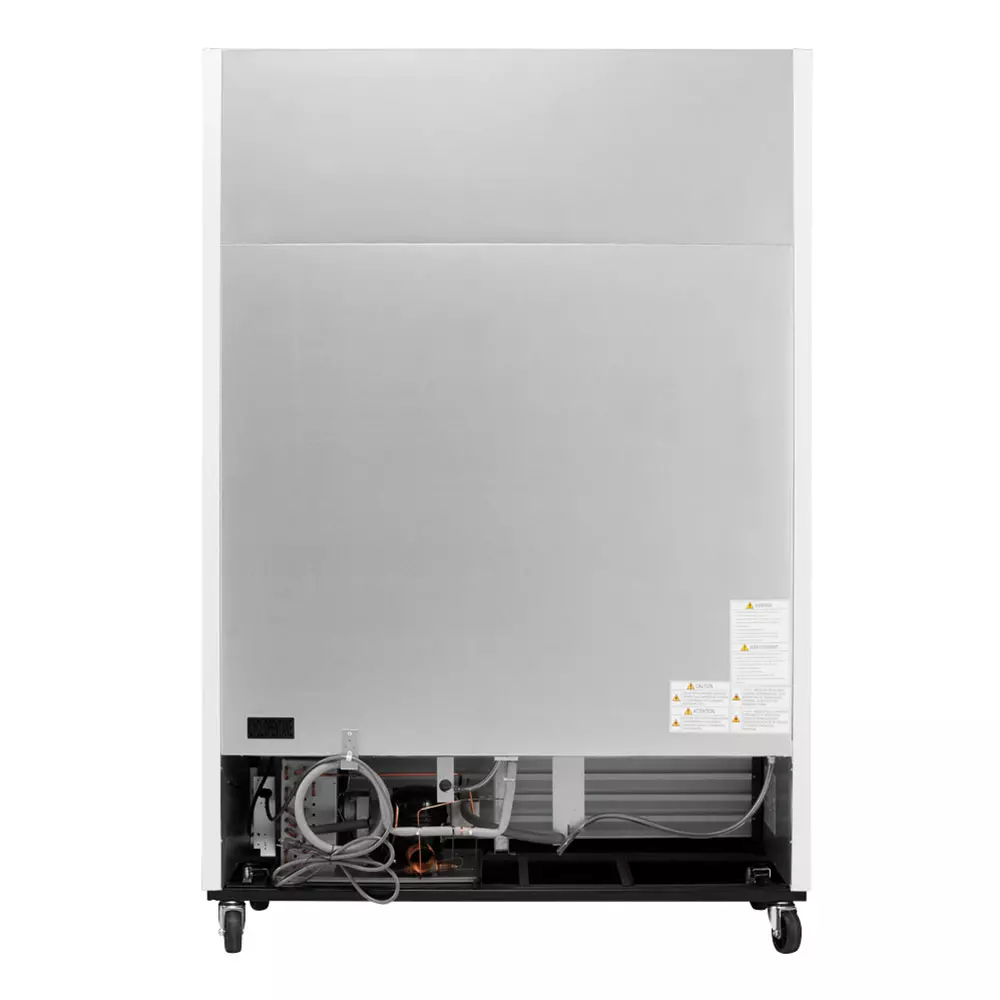

Compressor Location | Bottom |
Warranty | 2 year part and labor warranty / 3 years on compressor |
Voltage | 115 |
Cubic Feet | 44 |
Door Design | Sliding |
Height (in) | 79 1/8 |
Hertz | 60 |
Phase | 1 |
Sections | 2 |
Shelving Type | Wire |
Width (in) | 55 7/8 |

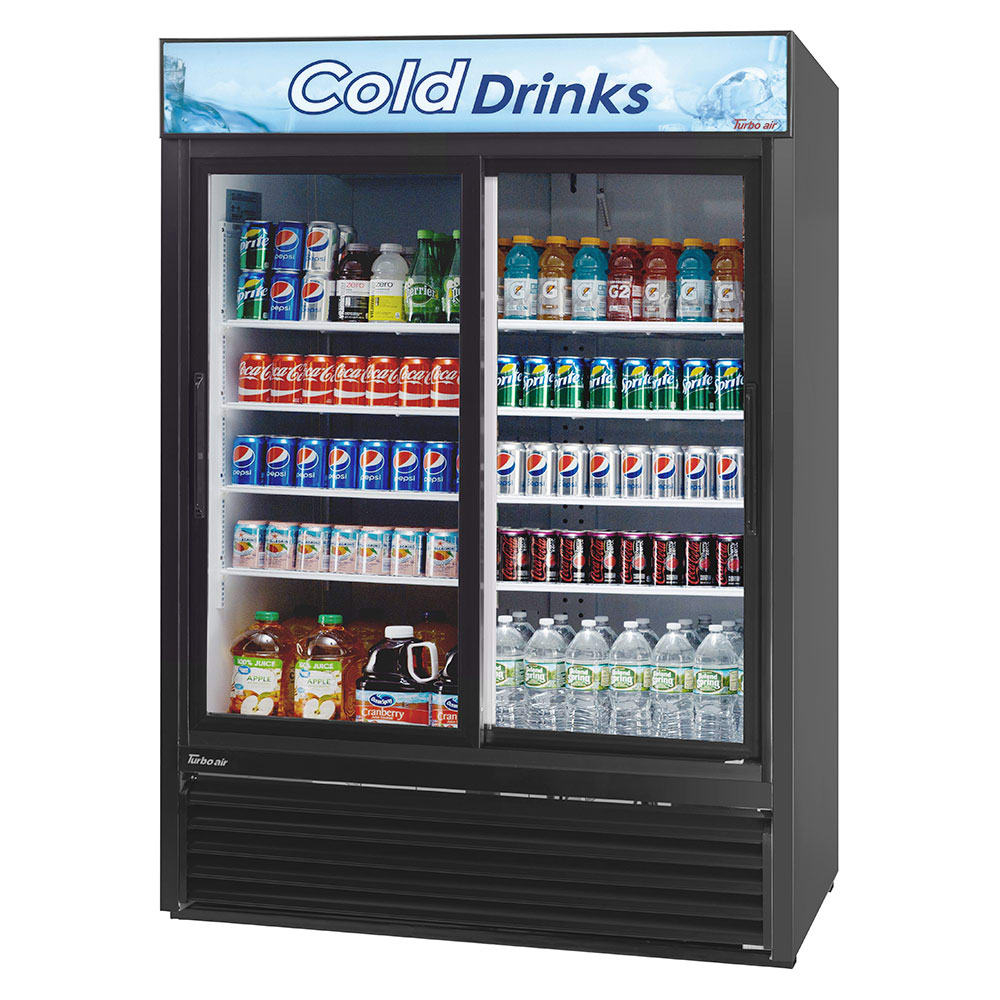

Color | White / Black |
Special Features | LED Lighting |
Depth (in) | 30 |
Product | Display Refrigerators |
Weight | 486.00 |
