Description

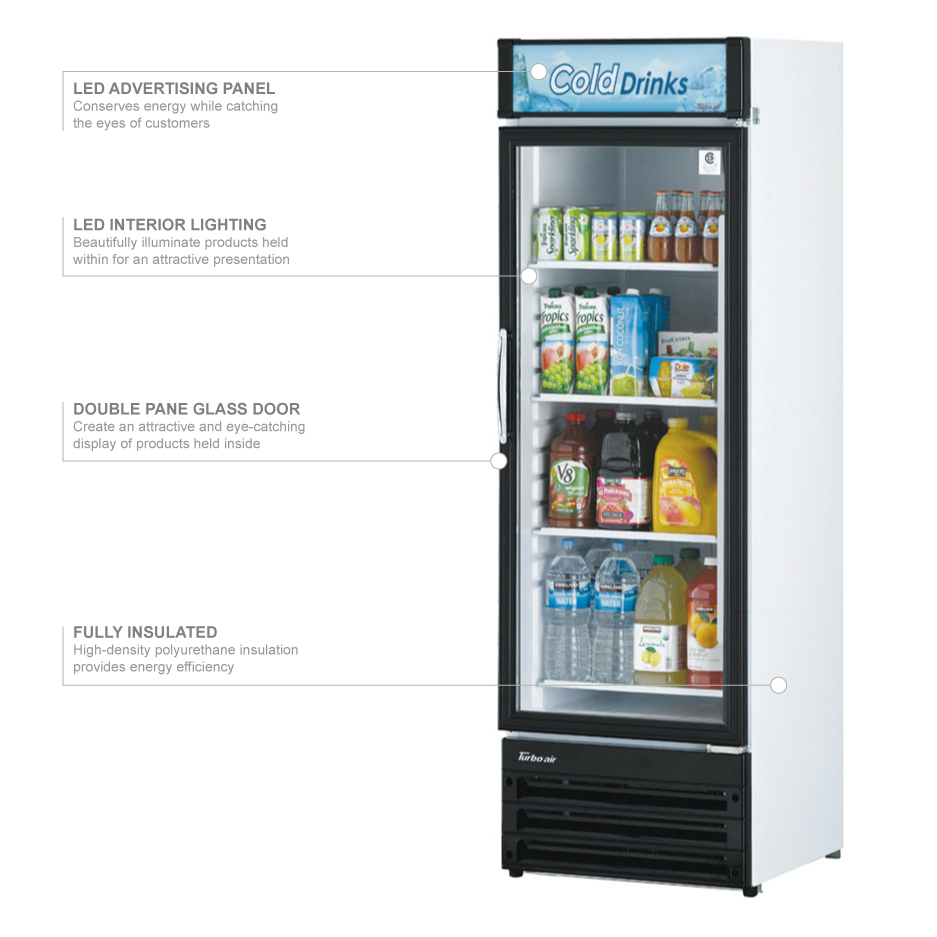

In the Turbo Air TGM-14RV-N6 one-section glass door merchandiser, four polyethylene-coated shelves hold bottles and other packaged products. These shelves provide space to accommodate as much as 150 bottles, but loading the cabinet with only 120 bottles will ensure air flows properly. LED lights inside the cabinet shine on products to enhance visibility, while the advertising panel attracts customers to increase impulse sales.
Since the door is made of double-pane glass, customers can see inside the unit without releasing cold air. This door also has a lightweight design that facilitates opening. Adding structure to the cabinet and retaining cold air, polyurethane is foamed in place inside the Turbo Air TGM-14RV-N6 one-section glass door merchandiser. The sides are white, while the door frame and front are black.
Product Details
- 12.17-cu.-ft. interior space
- 150 full-line bottle capacity
- 120 load-line bottle capacity
- Products sit on 4 polyethylene-coated, heavy-duty shelves
- LED interior lights illuminate the cabinet to create product visibility
- Double-pane, low-e glass door lets customers see available products without opening the door
- Lightweight door construction simplifies opening
- LED advertising panel attracts customers to increase drink sales
- Foamed-in-place polyurethane insulation adds structure to the cabinet
- White sides with a black door frame
Refrigeration System
- Temperature holding range: 33-38 degrees F
- R600A hydrocarbon refrigerant
- Hot gas condensate system is treated for corrosion resistance to prevent refrigerant leaks and overflow water
- Evaporator has a corrosion-resistant coating for durability
Dimensions & Utilities
- Shelves: 203⁄8 in. W x 167⁄8 in. D
- Interior: 19 in. W x 197⁄8 in. D x 571⁄2 in. H
- Overall: 235⁄8 in. W x 233⁄⁄8 in. D x 735⁄8 in. H
- 2.2 A, 1⁄5 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
Manufacturer | Turbo Air |
Product Type | Commercial Refrigeration |
Compressor Location | Bottom |
Warranty | 2 year part and labor warranty / 3 years on compressor |
Voltage | 115 |
Cubic Feet | 12.17 |
Door Design | Swing |
Height (in) | 73 5/8 |
Hertz | 60 |
Phase | 1 |
Sections | 1 |
Shelving Type | Wire |
Width (in) | 23 5/8 |
Hinge Configuration | Right |
Color | White |
Special Features | LED Lighting |
Depth (in) | 23 3/8 |
Product | Display Refrigerators |
Product | Display Refrigerators |
Weight | 187.00 |
