Description
Turbo Air M3F19-1-N Description

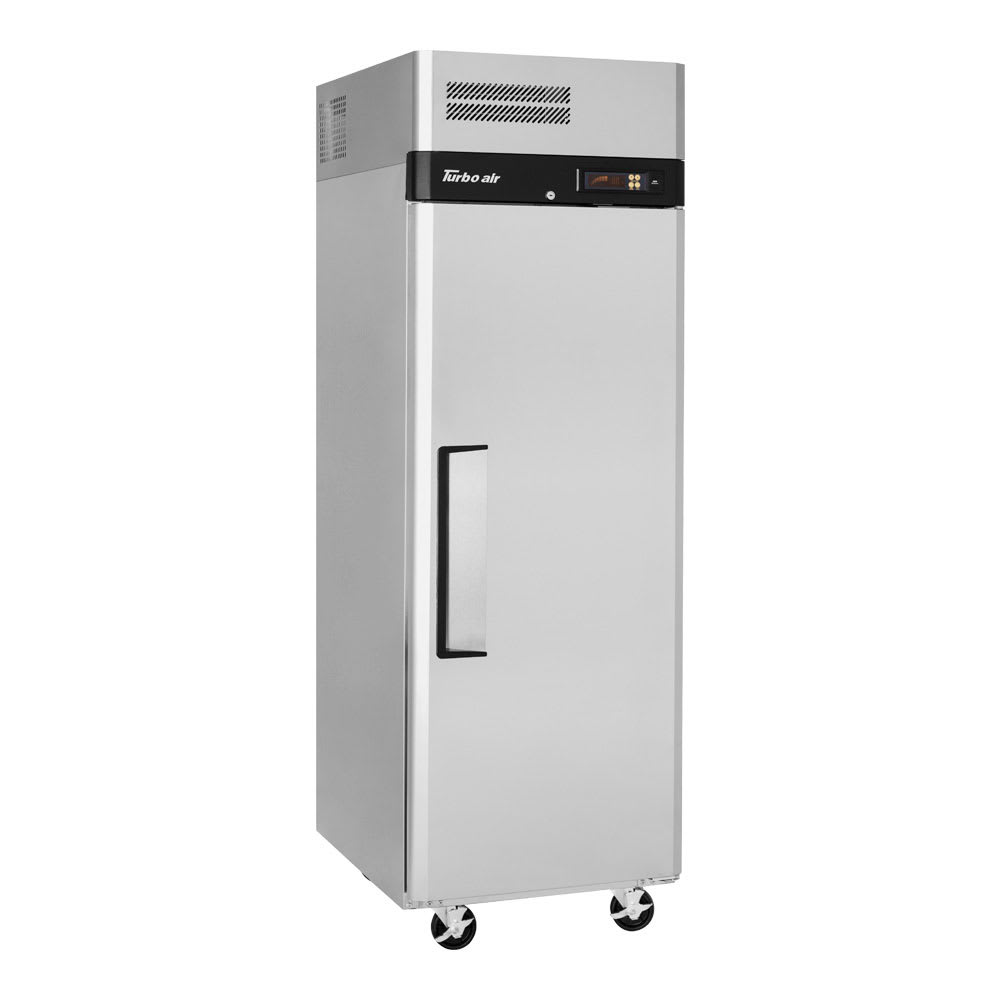

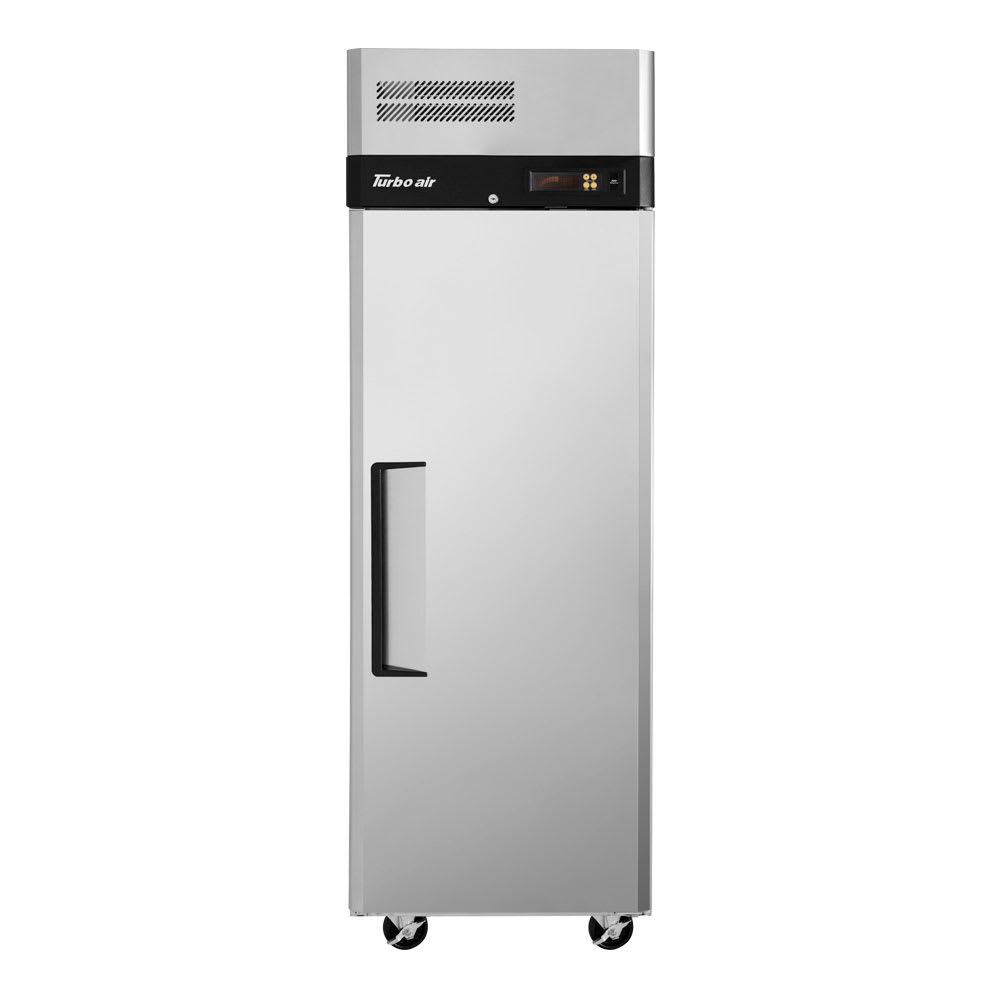

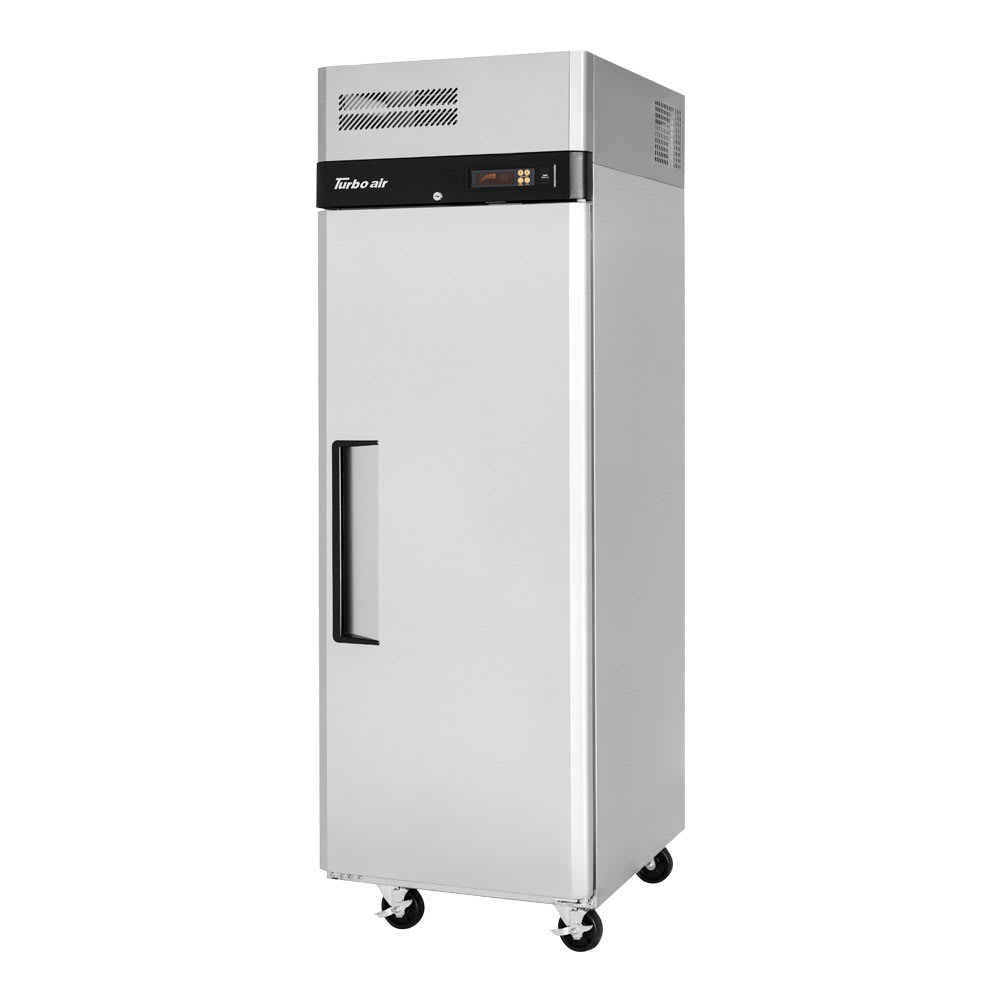

The Turbo Air M3F19-1-N single-section reach-in freezer comes with three polyethylene-coated shelves that are adjustable to accommodate a variety of products. LED lights are used to brighten the interior, so staff members can quickly find what they need. Its cabinet is made of aluminum, except for the stainless steel floor, making it heavy duty and corrosion resistant. The door is easy to open since vacuum pressure is eliminated by the pressure relief device.
With its Turbo Freeze function, the compressor runs continuously up to 2 hours for rapid cabinet cooling to quickly bring down temperatures of new products. The compressor is top mounted, so it is elevated off the floor and away from dust and debris. It is also simple to service since it is self-contained. A self-cleaning device in the Turbo Air M3F19-1-N one-section reach-in freezer brushes dust accumulation off the condenser daily, helping prevent a system breakdown.
Product Details
- (3) 201/2-in. x 233/4-in. polyethylene-coated shelves can be adjusted to accommodate different products
- LED lights shine inside the cabinet to enhance visibility
- Aluminum interior resists corrosion while providing durability
- Floor is made of easy-to-clean stainless steel for strength
- CFC-free polyurethane insulation is foamed in place to retain cold air
- Door pressure relief device eliminates vacuum pressure, so the door opens easily
- Lock on the door limits interior access to protect product from theft
- Door can be reversed in the field to suit different layouts
- Stainless and galvanized steel exterior is heavy duty and corrosion resistant
- Sharp edges and corners are rounded to help prevent injury
- 4-in. swivel casters have locks to keep the unit in place
- cETLus and ETL-Sanitation listed; ISO 9001:2008 certified
Self-contained Refrigeration System
- Temperature holding range: -10 to 0 degrees F
- Uses R290 hydrocarbon refrigerant to keep cold air in the cabinet

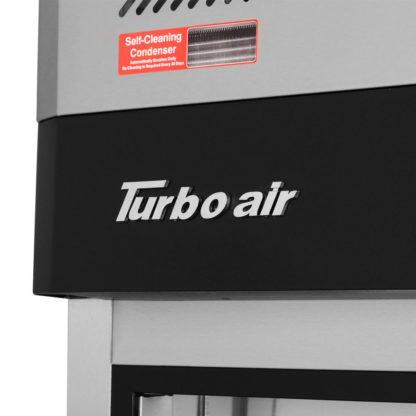

- Self-cleaning device removes dust from the condenser daily to reduce the risk of system breakdowns
- Top-mounted compressor is self-contained, so all the components are built together to make it easy to service
- Evaporator resists corrosion with an epoxy coating
Digital Control System

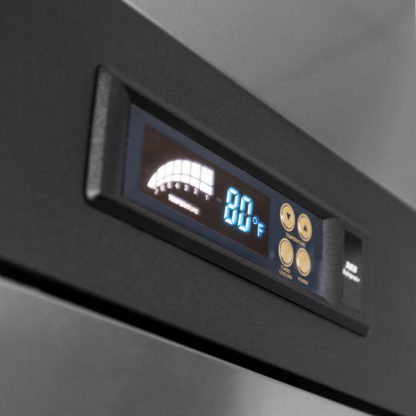

- Digital display enables staff to monitor the interior temperature
- Turbo Freeze function rapidly cools the cabinet by running the compressor for 2 hrs. continuously
- Smart defrost system is activated only when necessary to save energy and keep the contents safe
- Automatic fan motor delay shuts the fan off when the door is open to prevent warm air from being sucked into the cabinet
- Alarm sounds when the door is not sealed to ensure cold air does not leak out
- Early warning alarm detects system issue before a malfunction can occur
- Self-diagnosis program interprets the refrigeration system condition
Dimensions & Utilities
- Interior: 215/8 in. W x 273/8 in. D x 581/4 in. H
- Overall: 251/4 in. W x 331/2 in. D x 771/8 in. H
- 4.5 A, 5/8 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
Product Features
M3 Freezer, reach-in, one-section, 18.7 cu. ft. capacity, 25-1/4″W x 33-1/2″D x 77-1/8″H, top mount self-contained refrigeration with self-cleaning condenser, (1) field reversible hinged solid door with lock & door alarm, exterior LED digital thermometer, self-diagnostic monitoring system, smart fuzzy defrost, automatic fan motor delays, LED interior lighting, (3) PE coated wire shelves, aluminum interior with stainless steel floor, stainless steel front & sides (galvanized steel top, bottom & back), R290 Hydrocarbon refrigerant, 3/8 HP, 115v/60/1-ph, 4.5 amps, cord with NEMA 5-15P, cETLus, ETL-Sanitation, ENERGY STAR
Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
