Description

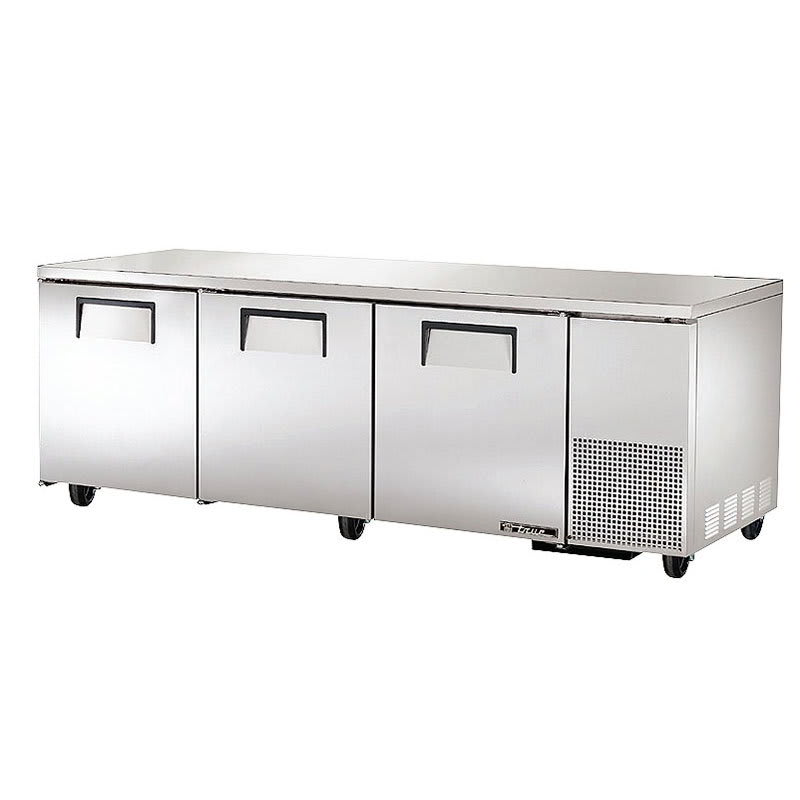

True Refrigeration TUC-93-HC Description
Equipped with electronically commutated evaporator and condenser fan motors, the True TUC-93 refrigerator moves a consistent volume of air with little heat and maintains a set temperature from 33 to 38 degrees Fahrenheit. The capillary tube system uses environmentally friendly R290 hydrocarbon refrigerant, and the evaporator is epoxy coated to eliminate the potential of corrosion. For simplified maintenance, operators have access to the condensing unit from behind the front grill. Constructed of stainless steel, the cabinet is lined with clear-coated aluminum and is insulated with polyurethane. Locks are provided on the front set of the 5-inch-diameter stem castors, and the unit has a 36-inch work surface height.
The True TUC-93 undercounter refrigerator has aluminum-lined stainless steel doors that are each fitted with a 12-inch-long, recessed handle that is foamed in place with a sheet metal interlock. Swinging within cabinet dimensions, the doors come with magnetic gaskets that are removable without tools. To support product, six heavy-duty, PVC-coated wire shelves are inside and are adjustable in 1/2-inch increments. These shelves come with four chrome-plated clips apiece.
Product Details
- 6 shelves: 2 on right, 2 on left, and 2 in center
- PVC-coated wire shelves are adjustable in 1/2-in. increments
- 4 chrome-plated clips per shelf
- Operating temperature range: 33-38 degrees F
- Fan motors move a consistent volume of air with little heat
- Condensing unit located behind front grill for convenient access
- Epoxy-coated evaporator prevents rust
- Uses R290 hydrocarbon refrigerant
- Energy-efficient, factory-balanced system with a guided airflow for uniform temperatures
- Exterior is constructed of stainless steel with a GalFan-coated steel back
- Interior is made of clear-coated aluminum liner and stainless steel floors with coved corners
- Insulated with high-density polyurethane
- 5-in.-diameter, lockable stem castors
- 36-in. work surface height
- Stainless steel doors fitted with 12-in.-long, recessed handles and sheet metal interlock
- Doors swing within cabinet dimensions
- Pre-wired at factory

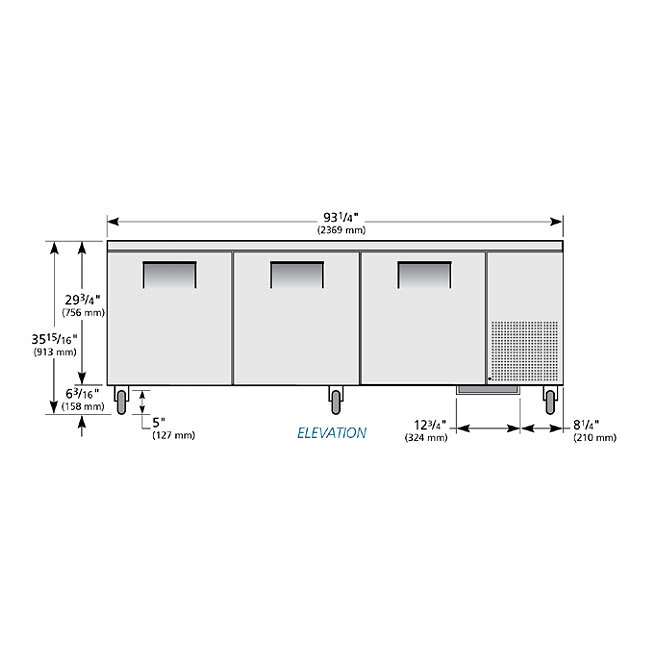

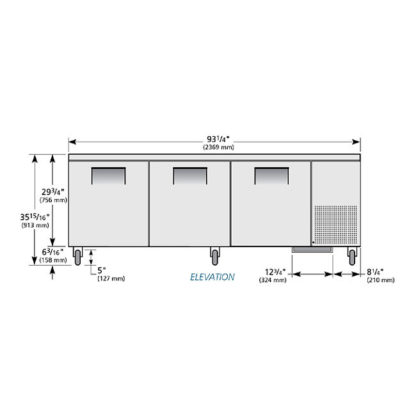

Dimensions & Utilities
- Right/left shelves: 235/8 in. W x 28 in. D
- Center shelves: 251/2 in. W x 28 in. D
- Overall: 931/4 in. W x 333/16 in. D x 3515/16 in. H
- 2.2 A, 1/5 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
Deep Undercounter Refrigerator, 33 – 38°F, side mounted self-contained refrigeration, (3) stainless steel doors, (6) PVC coated adjustable wire shelves, stainless steel top & sides, aluminum interior with stainless steel floor, 5″ castors, R290 Hydrocarbon refrigerant, 1/5 HP, 115v/60/1-ph, 2.2 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR
