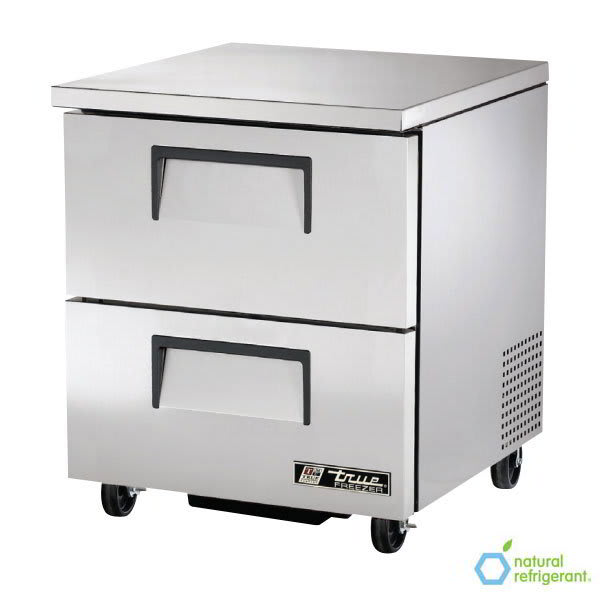

True TUC-27F-D-2-HC 28″ W Undercounter Freezer w/ (1) Section & (2) Drawers, 115v

To provide uniform temperatures, the True TUC-27F-D-2-HC undercounter freezer has an oversized refrigeration system with a factory-balanced design that efficiently guides airflow. Its slide-out condensing unit is accessible from the back, while the high-capacity system maintains -10 degrees Fahrenheit, which is ideal for ice cream and frozen foods. Time-initiated and time-terminated, an automatic defrost cycle eliminates buildup on the internal components to reduce the risk of a malfunction.

This True TUC-27F-D-2-HC drawered undercounter freezer’s capillary tube system is self-contained and uses R290 hydrocarbon refrigerant-an alternative to less eco-friendly refrigerants. Its evaporator and condenser fan motors are electronically commutated, ensuring efficiency with little energy consumption and heat production. For storage, this unit has two drawers that can each hold one full-size, 6-inch-deep pan.

Product Details

• 36-in. work surface height
• Locks on front set of 5-in.-diameter stem castors hold the unit in place
• Stainless steel front, top, and sides resist scratching and rusting
• Steel back is coated in corrosion-resistant GalFan
• 2 drawers
• Drawer slides and rollers are constructed of heavy-duty stainless steel and are detachable for cleaning
• (1) 12-in. L x 20-in. W x 6-in. D food pan per drawer (pans sold separately)
• Recessed, 12-in.-long drawer handles are foamed in place on each drawer with sheet metal interlock
• Interior is lined with clear-coated aluminum
• Stainless steel interior floor has coved corners that do not have crevices, easing cleanup
• Drawer facings, liners, and frames are made of stainless steel
• Magnetic drawer gaskets have a seamless construction and are removable without tools to ease cleanup process
• Foamed-in-place polyurethane insulation provides cold-air retention

Oversized Refrigeration System

• Guided airflow in factory-balanced design provides uniform product temperatures
• Back of cabinet provides access to condensing unit
• Operating temperature: -10 degrees F
• Automatic defrost system is time-initiated and time-terminated
• Uses R290 hydrocarbon refrigerant
• Electronically commutated, efficient evaporator and condenser fan motors move air consistently, produce little heat, reduce energy consumption, and provide motor reliability
• Corrosion-resistant, epoxy-coated evaporator

Dimensions & Utilities

• 27⁹/₁₆ in. W x 31¹/₁₆ in. D x 36 in. H
• 2.3 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

Undercounter Freezer, -10°F, (2) drawers each, accommodates 12″ x 20″ x 6″ pan (NOT included), stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, 5″ castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
