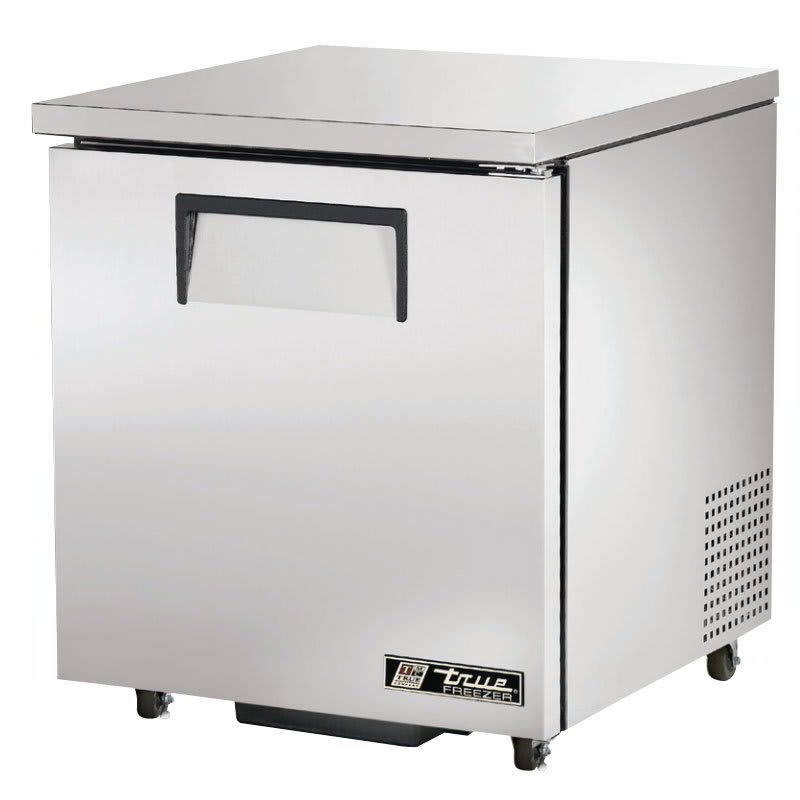

True TUC-27F-ADA-HC 27 5/8″ W Undercounter Freezer w/ (1) Section 115v

The True TUC-27F-ADA-HC undercounter freezer has an extra-large evaporator balanced with a powerful compressor and large condenser, meaning it can reliably maintain cabinet temperatures of -10 degrees Fahrenheit, an ideal level for frozen foods and ice cream. Its capillary tube system is self-contained, factory engineered, and uses environmentally friendly R290 hydrocarbon refrigerant. Starting and stopping on a time clock, its defrost system is automatic.

This refrigerator has an evaporator fan motor with a sealed, self-lubricating design, which reduces the amount of required maintenance. Its large fan blades provide efficient airflow, fast temperature recovery, and short run times for busy food service environments. To simplify maintaining the undercounter’s condensing unit, the back of the cabinet slides out. So it can fit under most counters, the True TUC-27F-ADA-HC undercounter freezer has an ADA-compliant 33¹¹/₁₆-inch height. Its door is self-closing and seals shut with a gasket in the frame. Inside, product can sit on the floor and two PVC-coated shelves, which are adjustable to accommodate tall or short items.

Product Details

• Left-hinged door opens from the right (opposite is available as well)
• Doors feature a positive seal, self-closing mechanism and a 90-degree stay-open component
• Cleanup is simplified through removable magnetic door gaskets of 1-piece construction
• High-density, polyurethane insulation foams entire cabinet structure and solid door in place
• 12-in.-long recessed handle is permanently attached with sheet metal interlock
• Exterior matches interior
• Stainless steel front, sides, and top resist scuffs and dents
• GalFan-coated steel back avoids corrosion
• Clear coated aluminum covers the interior
• Coved stainless steel floor facilitates cleaning
• 2 wire shelves constructed of heavy-duty PVC-coated material
• 4 chrome plated shelf clips per shelf
• Shelves are adjustable on ¹/₂-in. increments
• 3-in.-diameter stem castors
• 34-in. work surface height is compliant with ADA requirements

Product Features

Refrigeration System

• Operating temperature: -10 degrees F
• Capillary tube system is self-contained so all cooling components are kept together
• Uses R290 hydrocarbon refrigerant with 0 ozone depletion potential and 3 global warming potential
• Evaporator is epoxy coated to resist corrosion
• Large fan blades and evaporator fan motor produce low-velocity, high-volume airflow
• Unique design ensures fast temperature recovery and short run times for busy food service environments
• Back of the cabinet slides out for quick condenser access
• Automatic defrost is time initiated and time terminated

Dimensions & Utilities

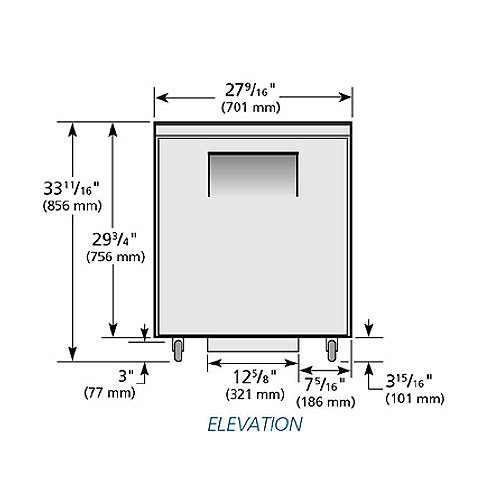

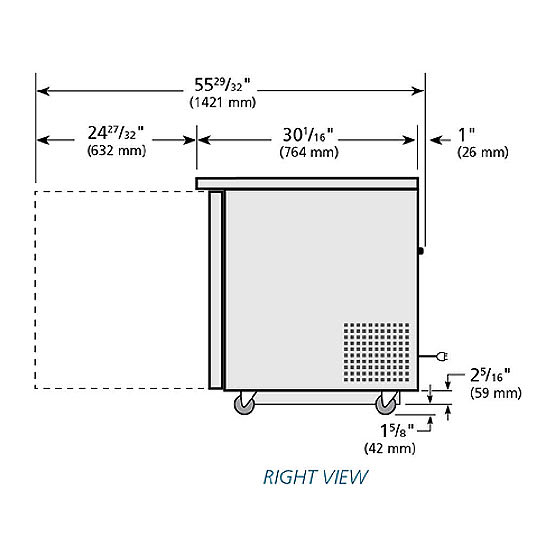

• 27⁹/₁₆ in. W x 31¹/₁₆ in. D x 33¹¹/₁₆ in. H
• 2.3 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

Undercounter Freezer, 34″ working height, -10°F, (1) stainless steel door, (2) PVC coated adjustable wire shelves, stainless steel top, front & sides, clear coated aluminum interior with stainless steel floor, 3″ castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.3 amps, NEMA 5-15P, cULus, UL EPH Classified, CE, ADA Compliant, Made in USA, ENERGY STAR
