Description

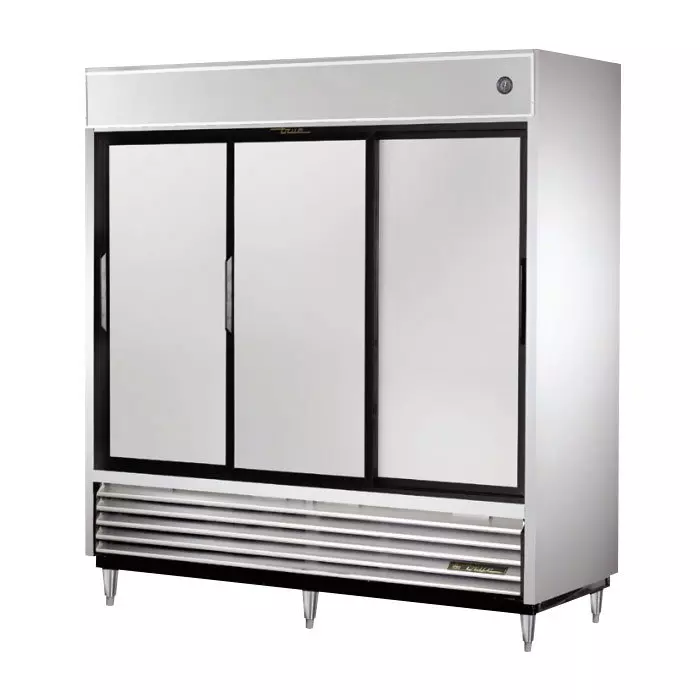

Measuring 781⁄8 inches long, the True TSD-69 TSD series reach-in refrigerator has three sections that each have three wire shelves, which are adjustable on aluminum pilasters in 1⁄2-inch increments. Stored items are refrigerated from 33 to 38 degrees Fahrenheit at a temperature chosen by the user, and fans move cold air around the items so they are cooled consistently. For visibility, interior lighting brightens the shelves.
Mounted above the doors, a rocker switch activates the safety-shielded interior lighting. This True TSD-69 three-section refrigerator has a corrosion-resistant exterior that consists of a stainless steel front, anodized aluminum sides, and a GalFan-coated steel back. Its three doors close by themselves and slide open smoothly, and the doors’ clear-coated aluminum liners match the cabinet interior’s liner. Insulated with polyurethane foam, the doors and cabinet strengthen the structure and trap cold air inside.
Product Details
- Part of the TSD series
- Safety-shielded interior lighting is controlled by a rocker switch that is mounted above the doors
- Stainless steel front with anodized aluminum ends
- Corrosion-resistant GalFan coating on steel back
- Doors are fitted with 12-in.-long, molded plastic handle
- 9 heavy-duty, PVC-coated wire shelves
- Shelves are adjustable in 1⁄2-in. increments
- Shelf support pilasters are constructed of aluminum
- 4 chrome-plated clips per shelf
- Steel frame rail is coated in black powder for corrosion protection
- Self-closing doors have a counterbalanced weight system for smooth, positive closure
- Sliding doors ride on the stainless steel V-channel with stainless steel bearings
- Doors come fitted within plastic channel frame
- Digital temperature display on exterior
- High-density polyurethane insulation foams doors and cabinet structure
- Attractive interior is coated with clear aluminum liner
- Coved corners on stainless steel floor reduce debris buildup
- Frame rail comes fitted with 6-in. legs
- NSF/ANSI Standard 7 compliant for open food products
- CE approved; cULus and UL-EPH listed
- Made with innovation in the U.S.
Refrigeration System
- Epoxy-coated evaporator reduces potential for corrosion
- Self-lubricating cast iron evaporator fan motor
- Large fan blades increase energy efficiency with low-velocity, high-volume airflow
- Provides speedy temperature recovery and quick run times
- Temperature holding range: 33-38 degrees F
- Capillary tube system is self-contained and uses environmentally friendly R134A refrigerant
- Condensing unit is bottom mounted for convenient maintenance
- Compressor runs in coolest, most grease-free area of kitchen
- Storage area is available on top of unit
| Compressor Location | Bottom |
| Cubic Feet | 69 |
| Depth (in) | 29.63 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
