Description

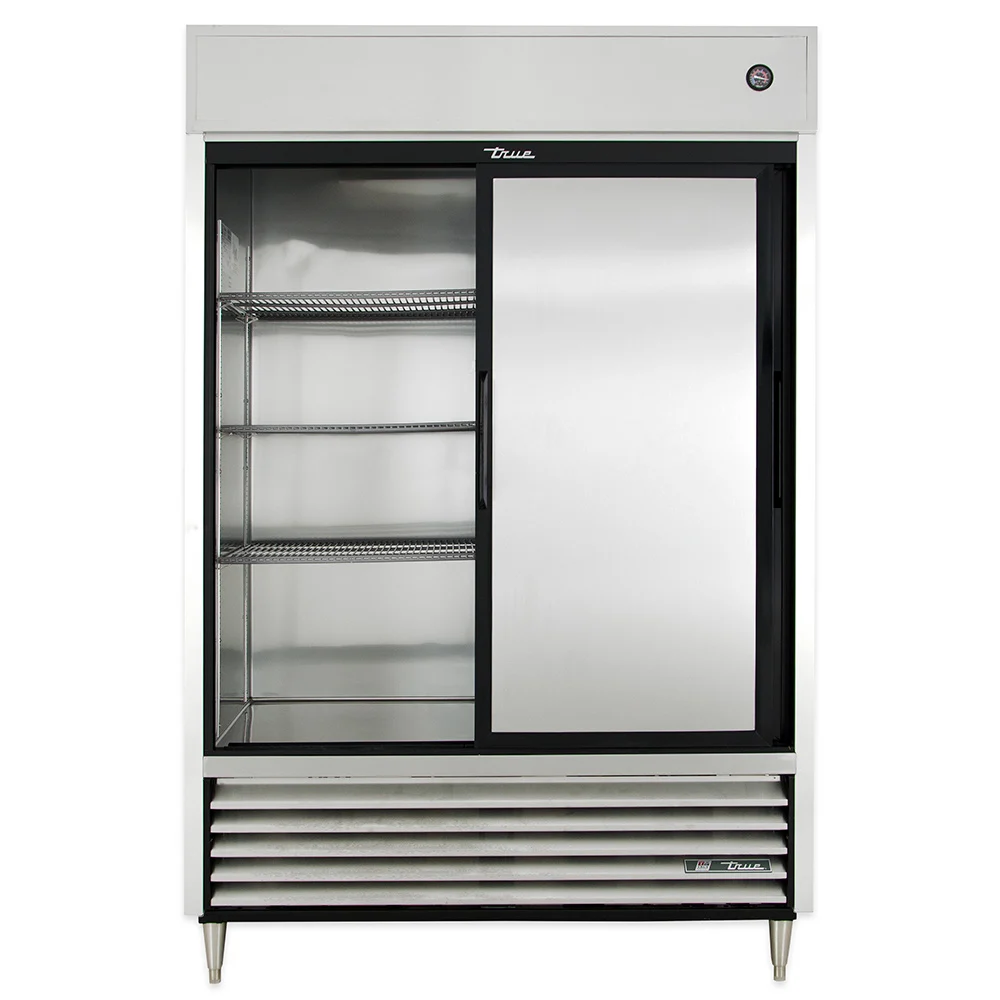

For durability, the True TSD-47-HC TSD series reach-in refrigerator has a dent- and corrosion-resistant exterior, consisting of stainless steel, anodized aluminum, and GalFan-coated steel. Its steel frame rail is heavy-duty to prevent bends and warps, while polyurethane insulation is foamed in place to resist sagging. To ensure smooth operation, the two doors slide on stainless steel bearings and close by themselves to prevent cold-air loss. Inside, products are illuminated by LED lighting and supported on six shelves that can be adjusted in 1⁄2-inch increments. These shelves are coated with PVC for strength and rust resistance, and the product can also sit on the floor, which is made of stainless steel that is quick to clean in case of leaks.
To maintain a set temperature between 33 and 38 degrees Fahrenheit, the True TSD-47-HC two-section refrigerator uses R290 hydrocarbon refrigerant in its capillary tubes. Refrigerant runs through the tubes to remove heat, and the resulting cold air is circulated through the interior by fans. These fans have electronically commutated motors, which means they use less energy and generate less heat than traditional motors. Because the condensing unit is mounted on the bottom, it is conveniently accessible and enables storage on top of the refrigerator.
Product Details
- Part of the TSD series
- Corrosion-resistant exterior with stainless steel front, anodized aluminum sides, and GalFan-coated steel back
- Interior is covered in clear aluminum, except for the stainless steel floor
- Coved corners in the floor reduce debris buildup
- Dense, foamed-in-place polyurethane insulation blocks out warm air
- Sliding, self-closing doors
- Stainless steel channels and bearings are durable
- LED interior lighting is safety shielded against breakage
- 6 wire shelves are coated in PVC for corrosion protection
- Shelves are adjustable in 1⁄2-in. increments
- Sturdy frame rail with 6-in. legs
- NSF/ANSI Standard 7 compliant for holding open food product
- cULus and UL-EPH listed
- Made with innovation in the U.S.
Bottom-mounted Refrigeration System
- External digital display shows internal temperatures
- Temperature holding range: 33-38 degrees F
- Cools with R290 hydrocarbon refrigerant
- Fans produce little heat and use little energy because they have electronically commutated motors
- Self-contained to ensure components are accessible for maintenance
- Bottommost condenser placement raises the floor to a comfortable height
| Compressor Location | Bottom |
| Cubic Feet | 47 |
| Depth (in) | 29.63 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
