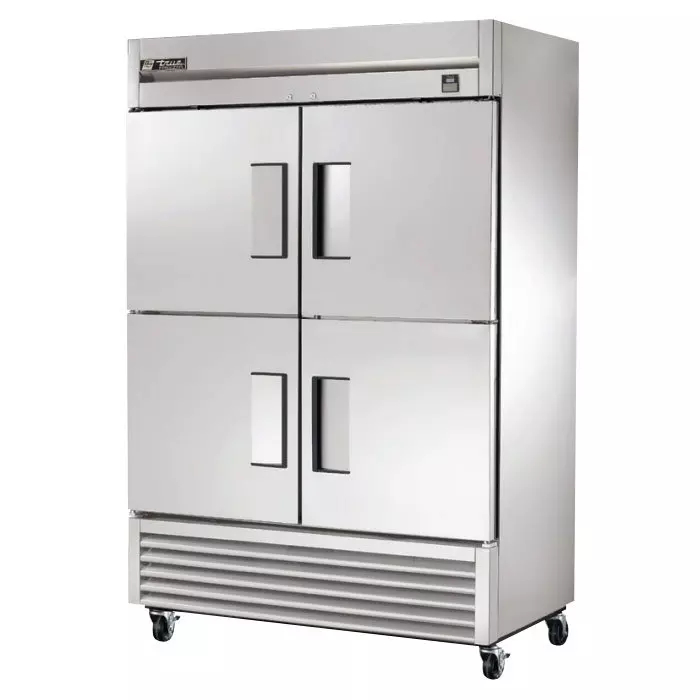

True TS-49F-4-HC 54 1/8″ Two Section Reach-In Freezer

Description

The True TS-49F-4-HC two-section reach-in freezer includes six shelves that have a wire design to provide airflow through small gaps, evenly cooling stored items. These shelves are PVC coated for corrosion resistance and can be adjusted to accommodate different items. Airflow guards are integrated into the cabinet, preventing users from placing items in the path of air flow and obstructing it. Since the interior is made of stainless steel, it simplifies cleaning and is durable to support heavy use. This two-section unit has four doors, With two doors in each section, the unit has four doors total, limiting access and retaining more cold air than models with full doors.

For frozen food and ice cream, this True TS-49F-4-HC reach-in freezer operates at -10 degrees Fahrenheit, a temperature that can be monitored on the digital exterior display. The unit uses R290 hydrocarbon refrigerant to maintain the correct temperature, the unit uses an eco-friendly R290 refrigerant. Cold air is evenly moved through the cabinet with efficient, electrically-commutated fans. Because the condensing unit is mounted at the bottom, it is accessible for maintenance. Defrost cycles are needed in freezers to remove buildup that comes from condensate water freezing, and in this unit, the defrost system is automatic, starting based on a timer and shutting off when the temperature is back to the right level.

Product Details

• 6 PVC-coated wire shelves are adjustable in ¹⁄₂-in. increments
• Rear airflow guards prevent products from obstructing the flow of cold air
• LED interior lighting increases visibility in the cabinet
• Durable stainless steel interior simplifies cleaning
• 4 half doors self-close to retain cold air
• 12-in. recessed door handles
• 1-piece, magnetic door gaskets seal in cold air and are removable without tools
• Stainless steel exterior front, doors, and sides
• GalFan-coated steel back
• Foamed-in-place polyurethane insulation helps keep cold air in the cabinet
• 4-in. castors with locking front set
• cULus and UL-EPH listed; ENERGY STAR certified
• Made with innovation in the U.S.

High-capacity Refrigeration System

• Operating temperature: -10 degrees F
• External digital temperature display
• R290 hydrocarbon refrigerant
• Evaporator and condenser fan motors are electronically commutated to reduce energy consumption and minimize heat production
• Epoxy coating on the evaporator provides corrosion resistance
• Condensing unit is bottom mounted and maintenance accessible
• Time-initiated, temperature-terminated automatic defrost

Dimensions & Utilities

• Shelves: 24⁹⁄₁₆ in. W x 22³⁄₈ in. D
• Overall: 54¹⁄₈ in. W x 29¹⁄₂ in. D x 78³⁄₈ in. H
• 9.6 A, 1 HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Documents:

• Spec Sheet
