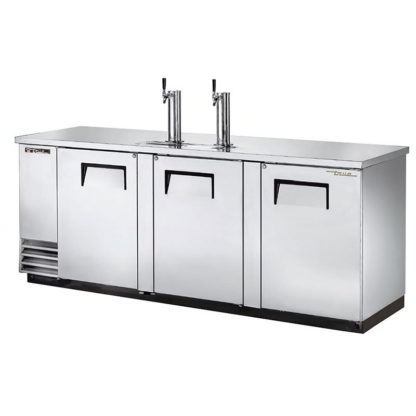

True TDD-4-S-HC 90″ Draft Beer System w/ (4) Keg Capacity – (2) Columns, Stainless, 115v

Using R290 hydrocarbon refrigerant and a capillary tube system, the True TDD-4-S-HC draft beer system can chill four half-barrel kegs at a set temperature between 33 and 38 degrees Fahrenheit. As kegs are loaded into the cabinet, a threshold protector prevents scratches, and the stainless steel floor has a lip to catch spills, facilitating cleanup. LED lights provide visibility inside, and the doors lock for security.

Since there are two insulated towers, the True TDD-4-S-HC draft beer system can serve two types of beers at once. Beer flows up through the columns and stays cool with a direct cold air supply. The top, front, and sides are constructed of stainless steel that is quick to clean, and additional space on the countertop enables employees to prepare drinks and garnishes. For warp resistance, the unit has a heavy-duty frame rail, and polyurethane insulation is foamed in place to prevent sagging. Magnetic door gaskets can be cleaned and replaced quickly without tools. The condensing unit slides out from behind the front grill to streamline maintenance, and a T-drain is on the front.

Product Details

• 4 half-barrel keg capacity
• 2 stainless steel, insulated beer towers
• Foaming is reduced by cold air that flows directly into towers
• LED lighting illuminates the cabinet
• Doors lock for security
• ¹/₂-in. barbed T-drain helps with cleaning
• 2-way tapper manifold connects the keg lines to CO₂ lines

Durable Construction

• Stainless steel countertop is quick to wipe down
• Exterior is made of stainless steel and aluminum to resist scratches, dents, and corrosion
• Warp-resistant steel frame rail
• Aluminum and stainless steel interior resists corrosion
• Door threshold protector prevents damage when loading product
• 12-in. handles provide interior access
• Dense polyurethane insulation and door gaskets retain cold air

Refrigeration System

• Temperature holding range: 33-38 degrees F
• Uses R290 hydrocarbon refrigerant runs through the capillary tube system
• Self-contained condensing unit for simplified maintenance
• Fans consume little energy while moving a consistent amount of air
• Epoxy-coated evaporator resists corrosion

Dimensions & Utilities

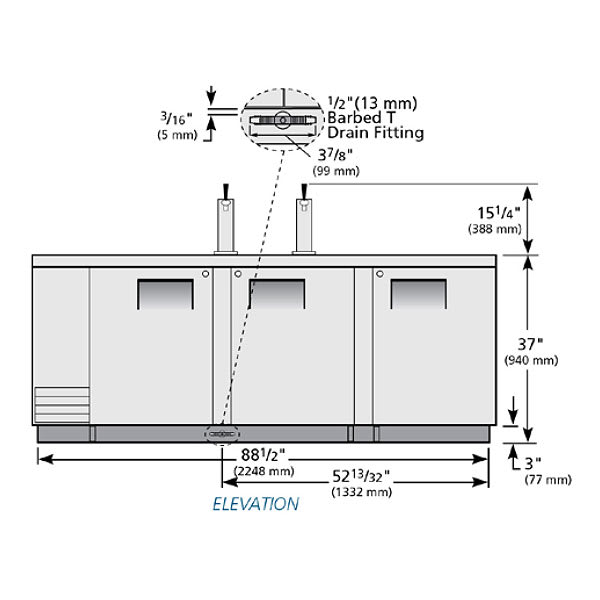

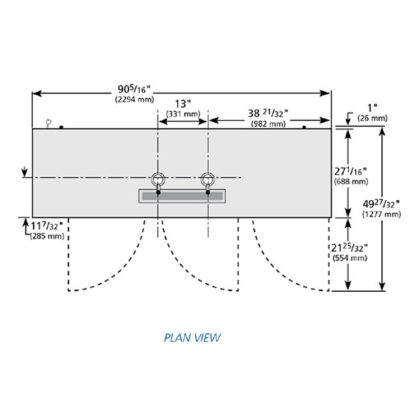

• 90⁵/₁₆ in. W x 28 ¹¹/₁₆ in. D x 52³/₄ in. H
• 2.8 A, ¹/₄ HP
• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top, (3) solid hinged doors with locks, (2) 3″ dia. insulated beer columns with single faucet draft arm, stainless steel front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR
