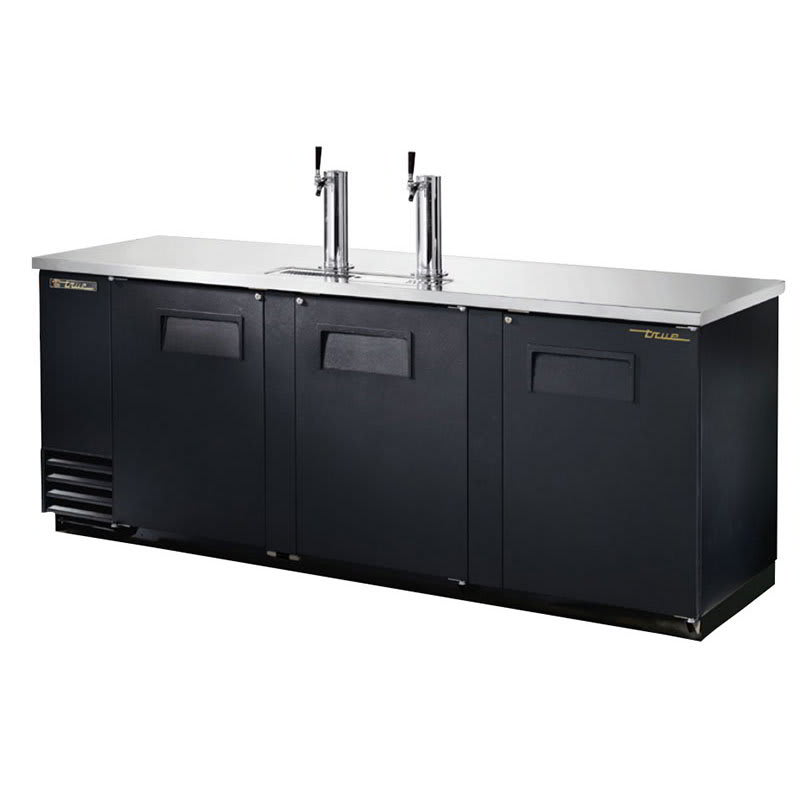

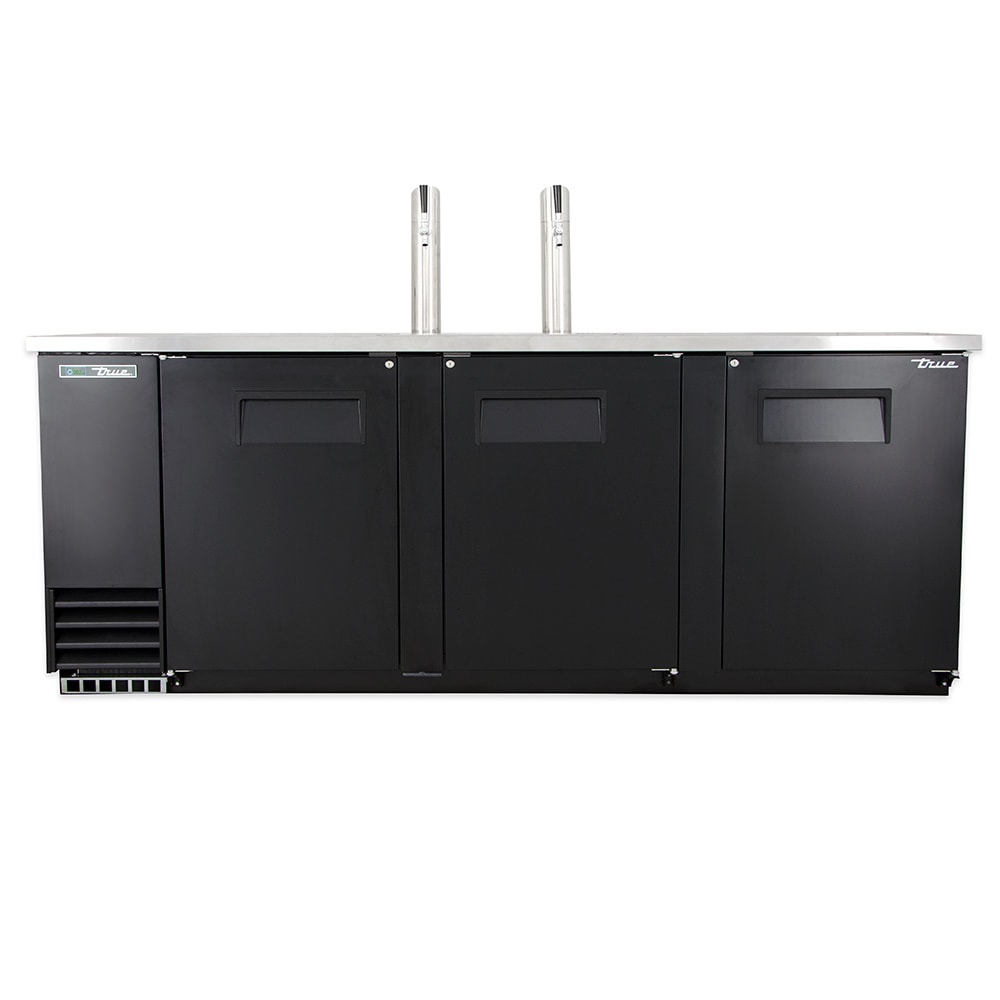

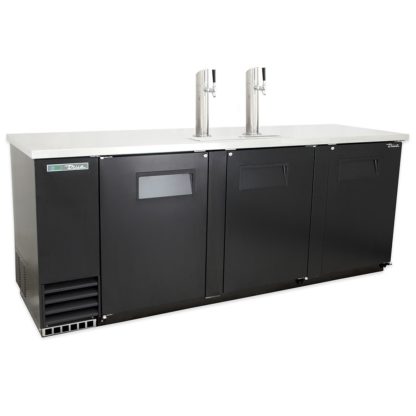

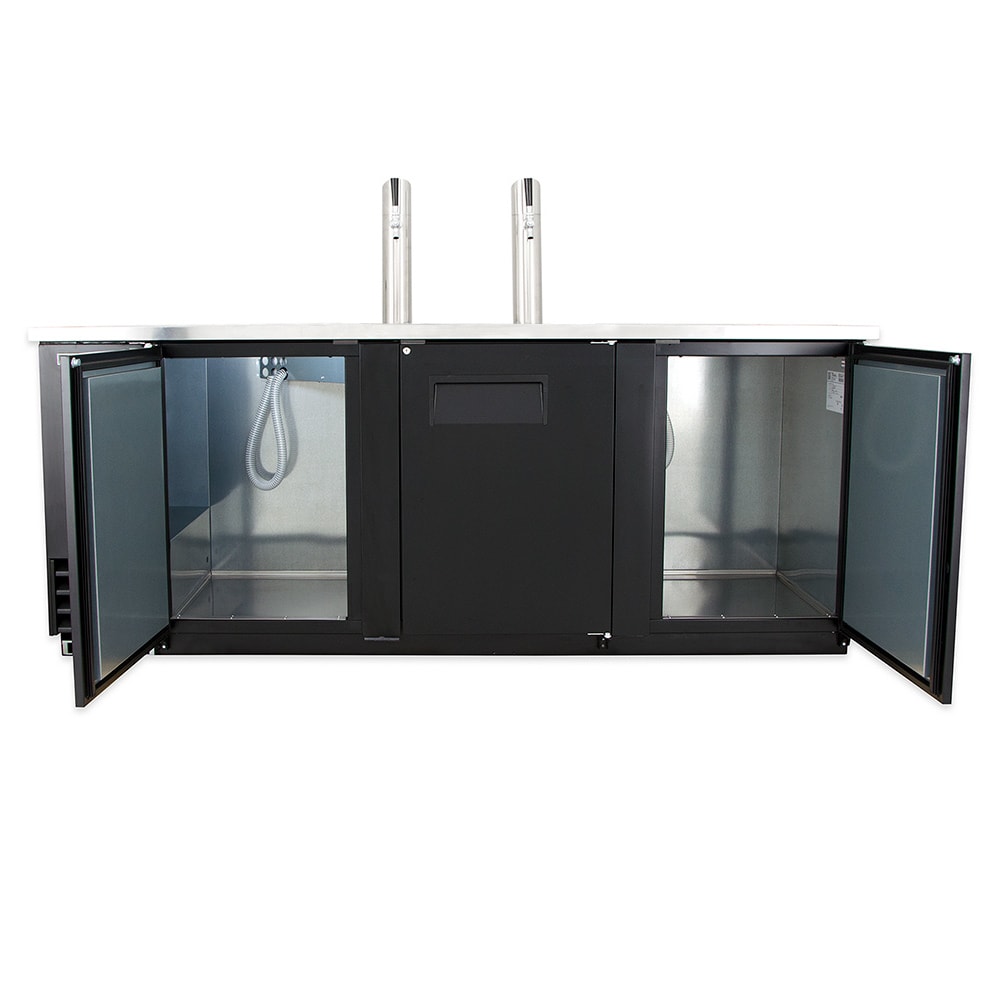

True TDD-4-HC 90″ Draft Beer System w/ (4) Keg Capacity – (2) Columns, Black, 115v

The True TDD-4-HC draft beer system has a four half-barrel keg capacity, and its exterior front and sides are constructed of laminated black vinyl, with a stainless steel countertop that is durable and quick to clean. To prevent damage when loading and unloading product, the galvanized steel interior has a door threshold protector. Each of the three doors is fitted with a 12-inch-long, recessed handle that is permanently attached and door locks to protect kegs from theft.

The draft beer system uses a capillary tube refrigeration system and R290 hydrocarbon refrigerant to ensure products are kept cool, while energy-efficient fans circulate cold air to maintain a set temperature between 33 and 38 degrees Fahrenheit. The True TDD-4-HC draft beer system has two 3-inch-diameter, insulated stainless steel beer columns, and to reduce foaming, cold air is directed into the columns.

Product Details

• 4 half-barrel keg capacity

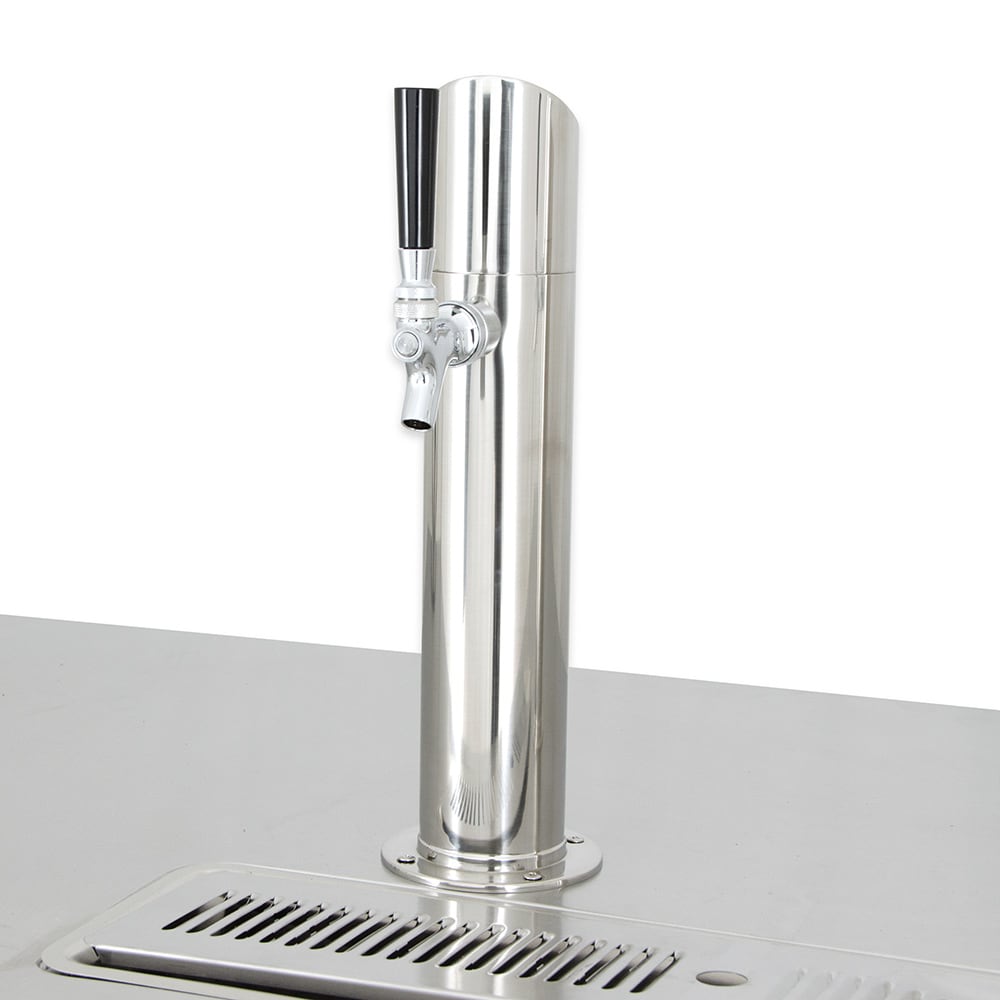

• 2 stainless steel beer columns have cold air directed in them to reduce foaming
• Columns have a 3-in. diameter
• Self-contained refrigeration system keeps parts together for efficient maintenance
• Capillary tubes regulate flow of R290 hydrocarbon refrigerant

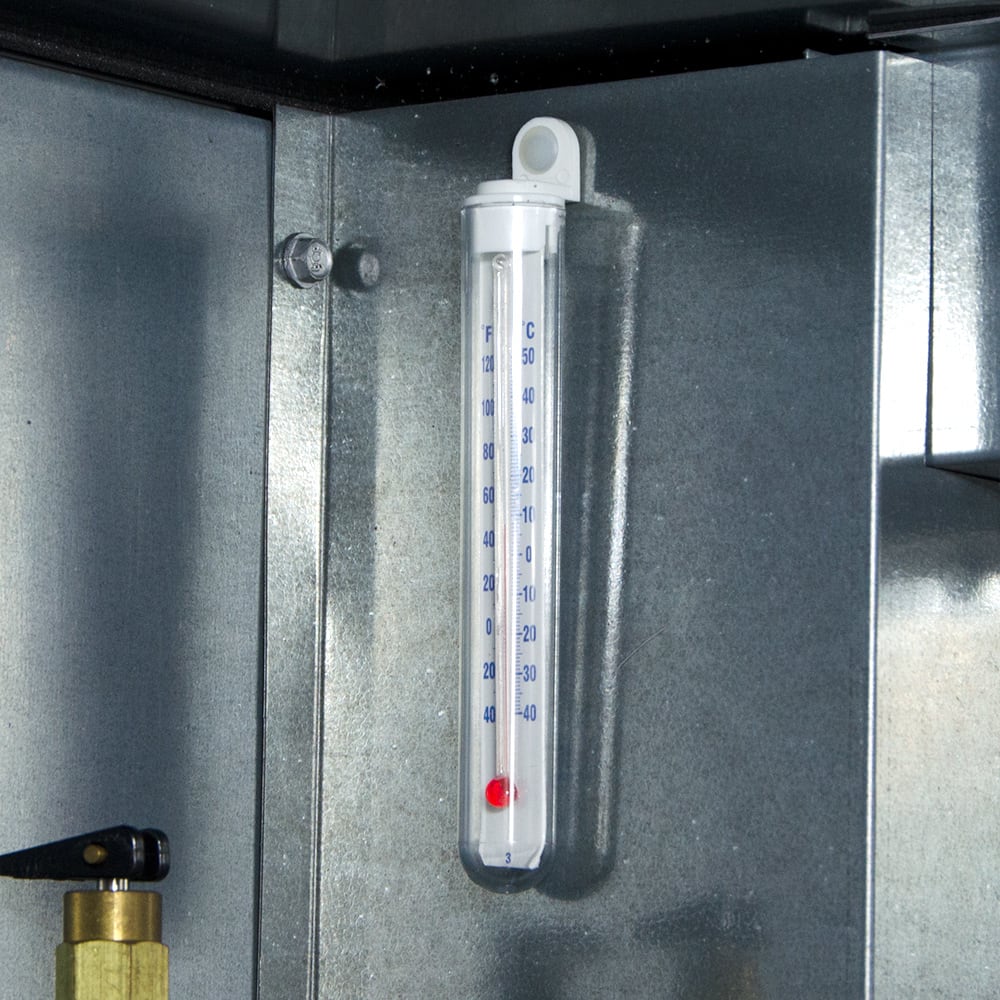

• Temperature holding range: 33-38 degrees F

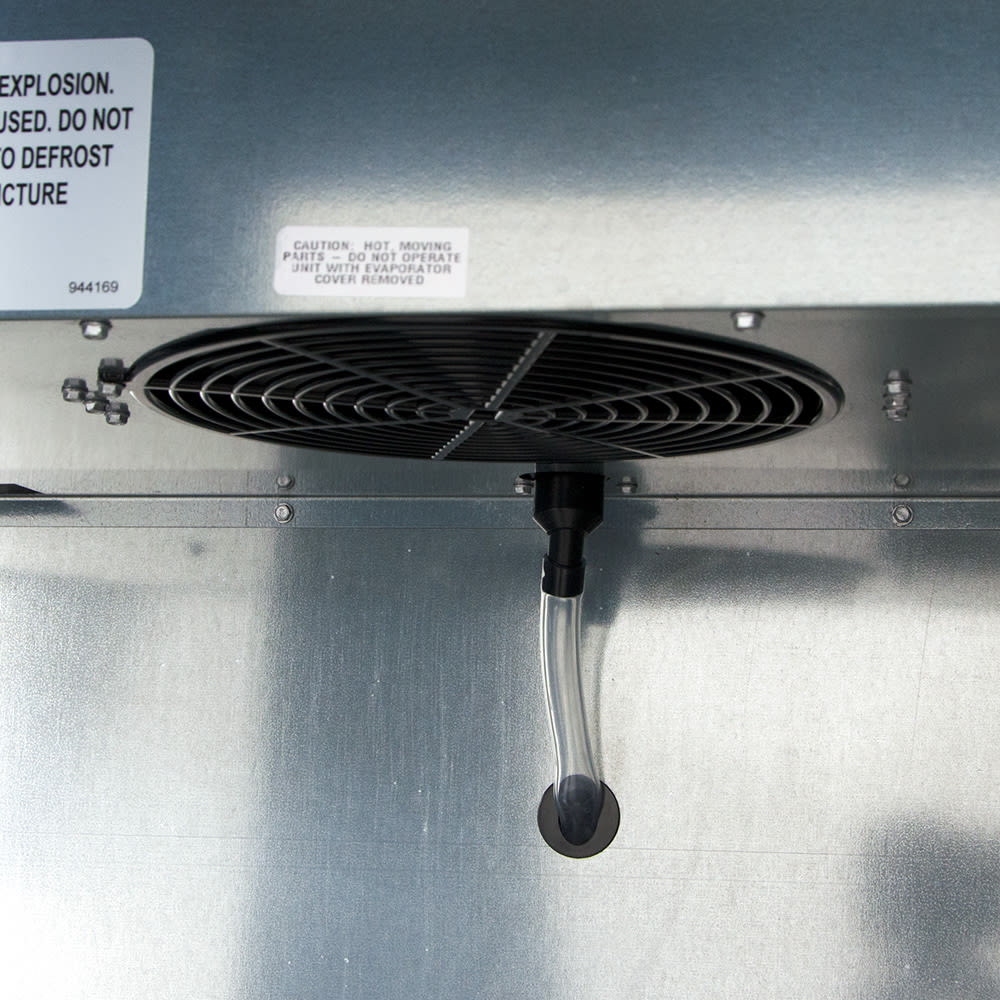

• Electronically commutated fan motors provide consistent airflow
• Epoxy-coated evaporator resists corrosion

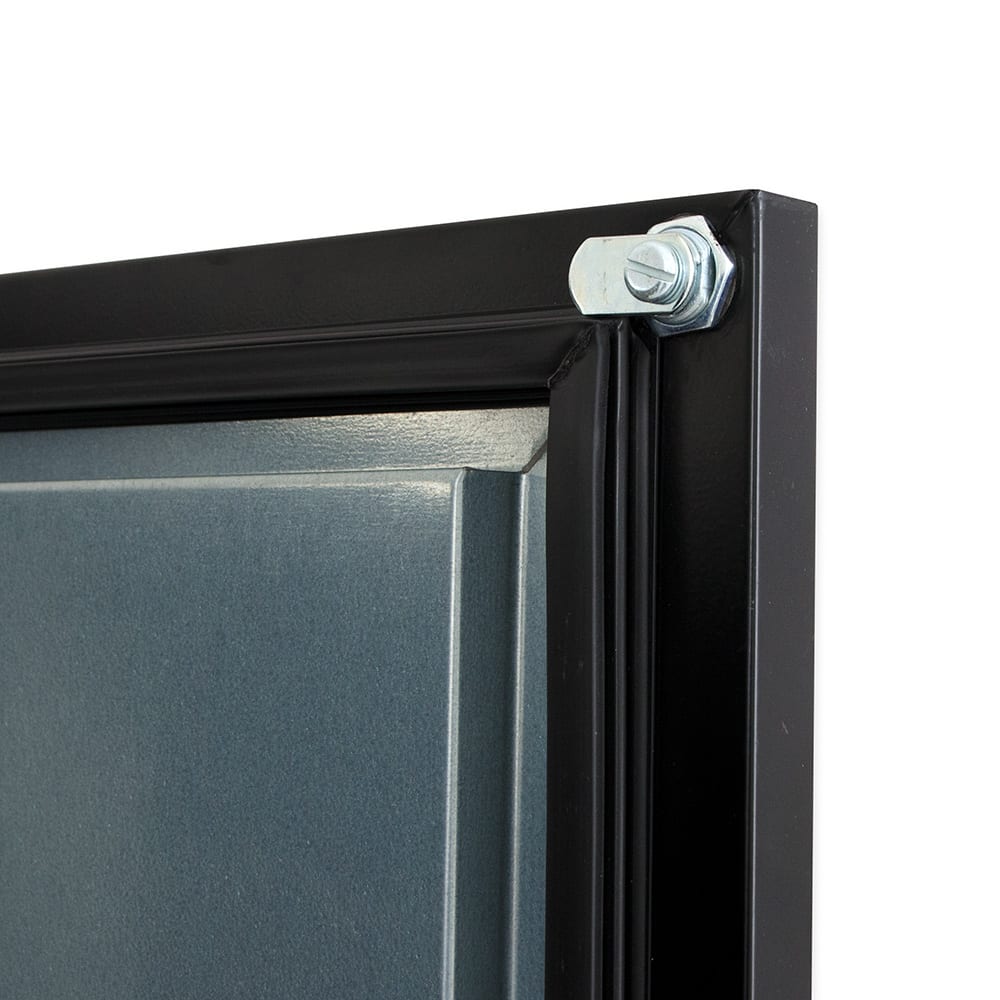

• Standard door locks prevent unauthorized access

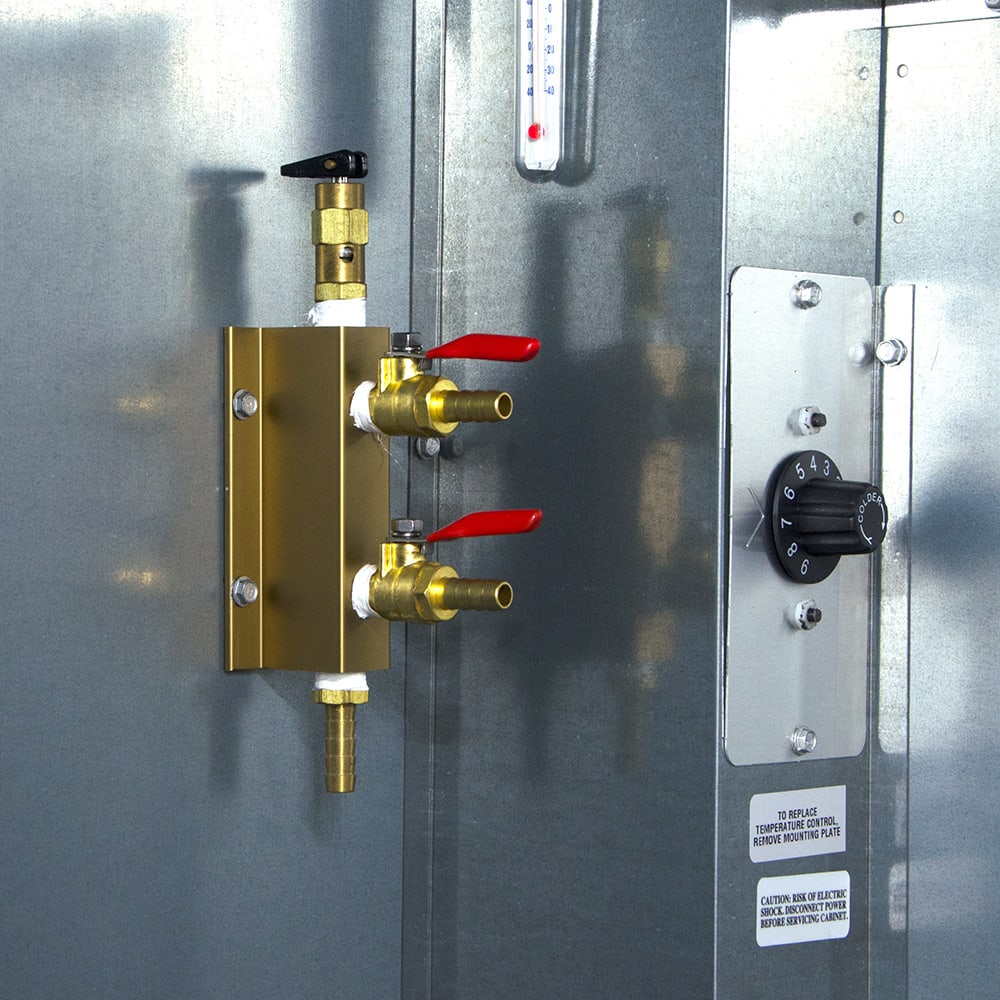

• Includes 2-way tapper manifold to connect keg lines to CO₂

Product Features

Cabinet Construction

• Exterior is resistant to wear since it has heavy-duty black vinyl front and sides

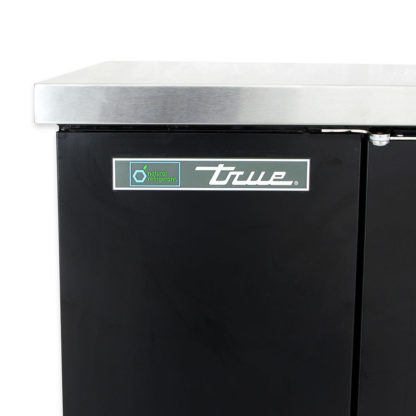

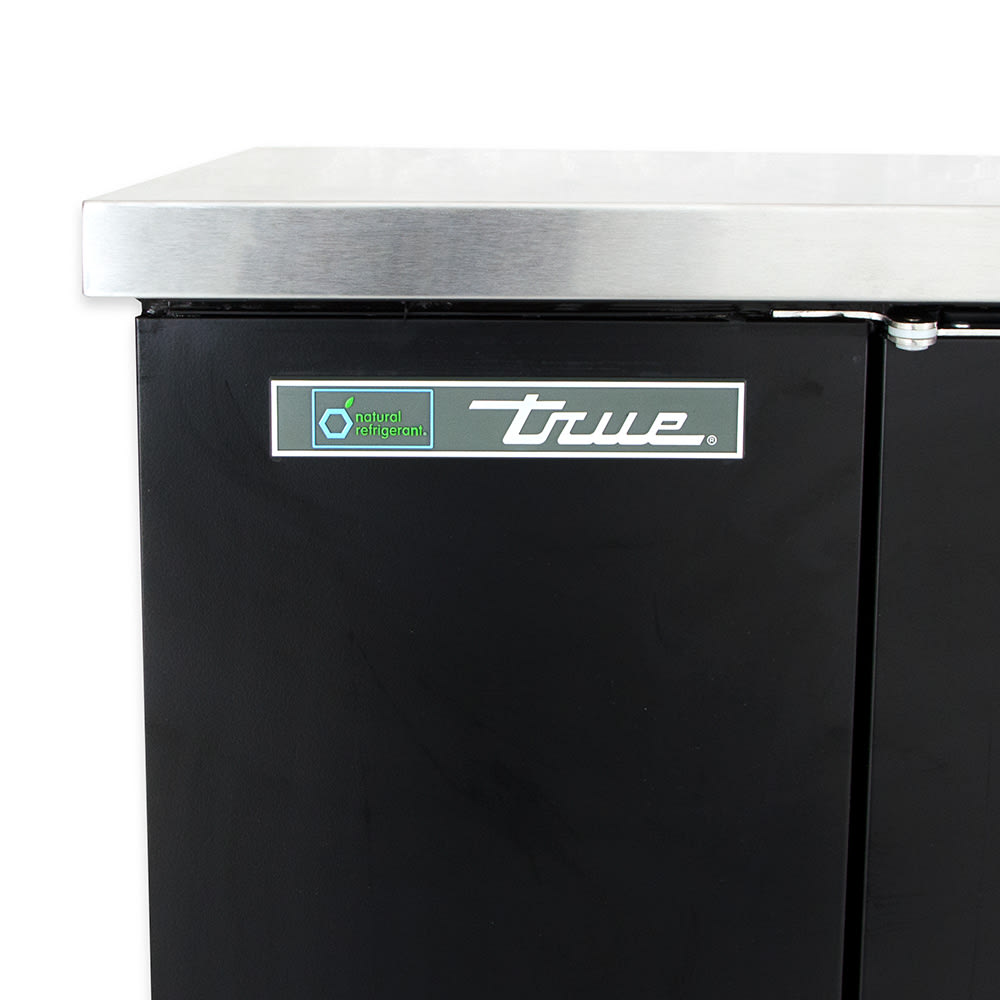

• Stainless steel countertop is durable and quick to clean

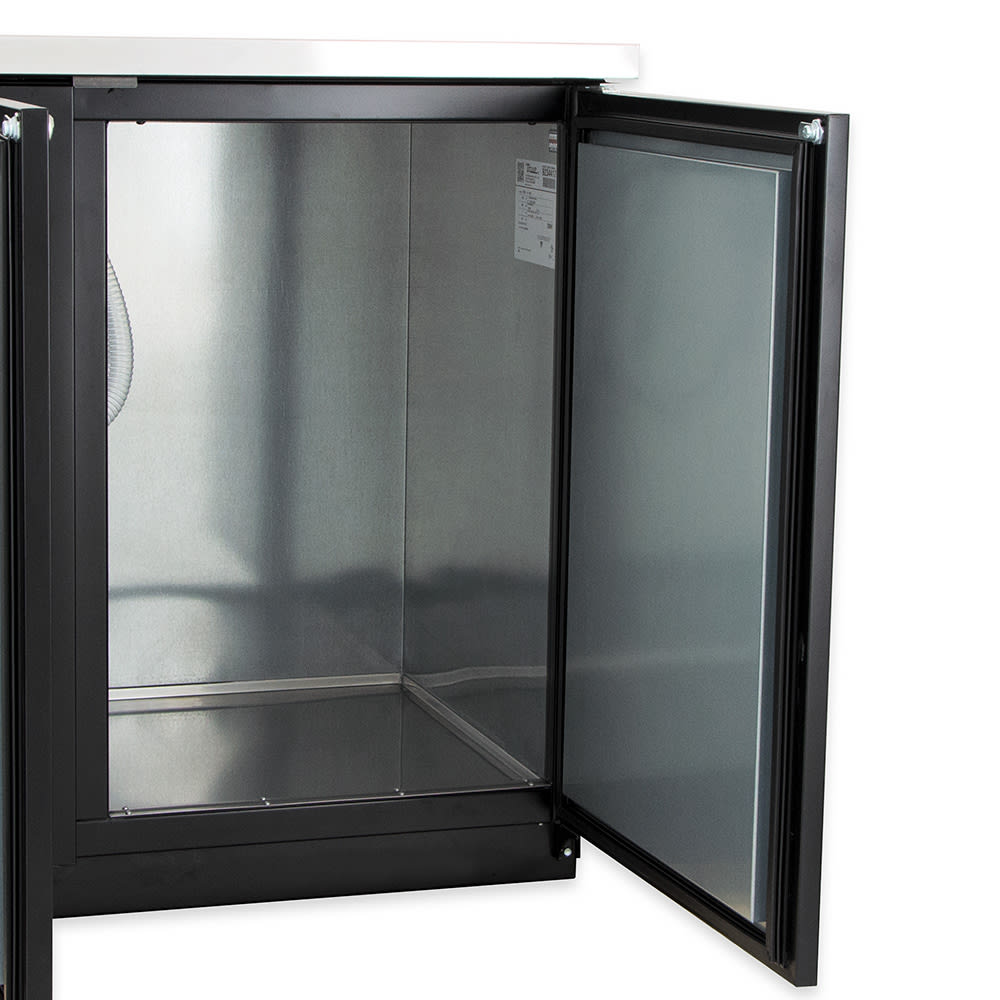

• Heavy-duty stainless steel interior floor is corrosion resistant

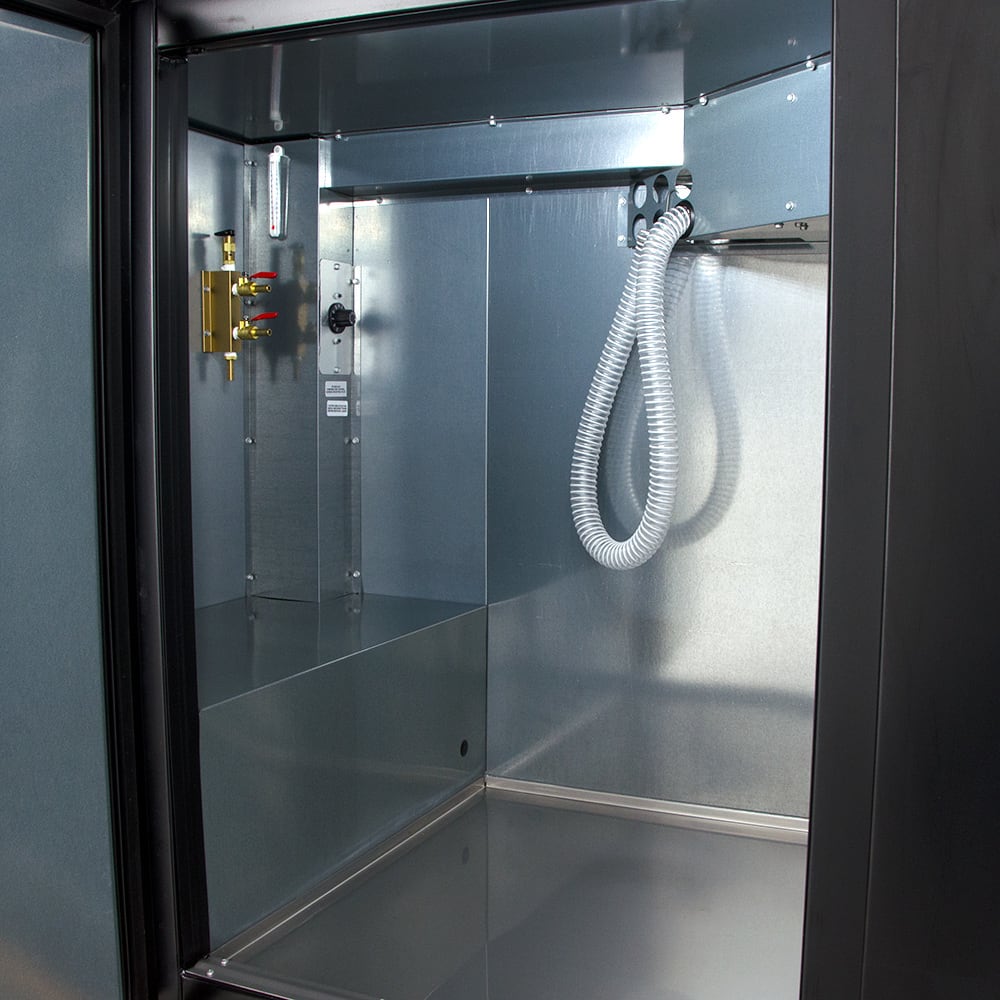

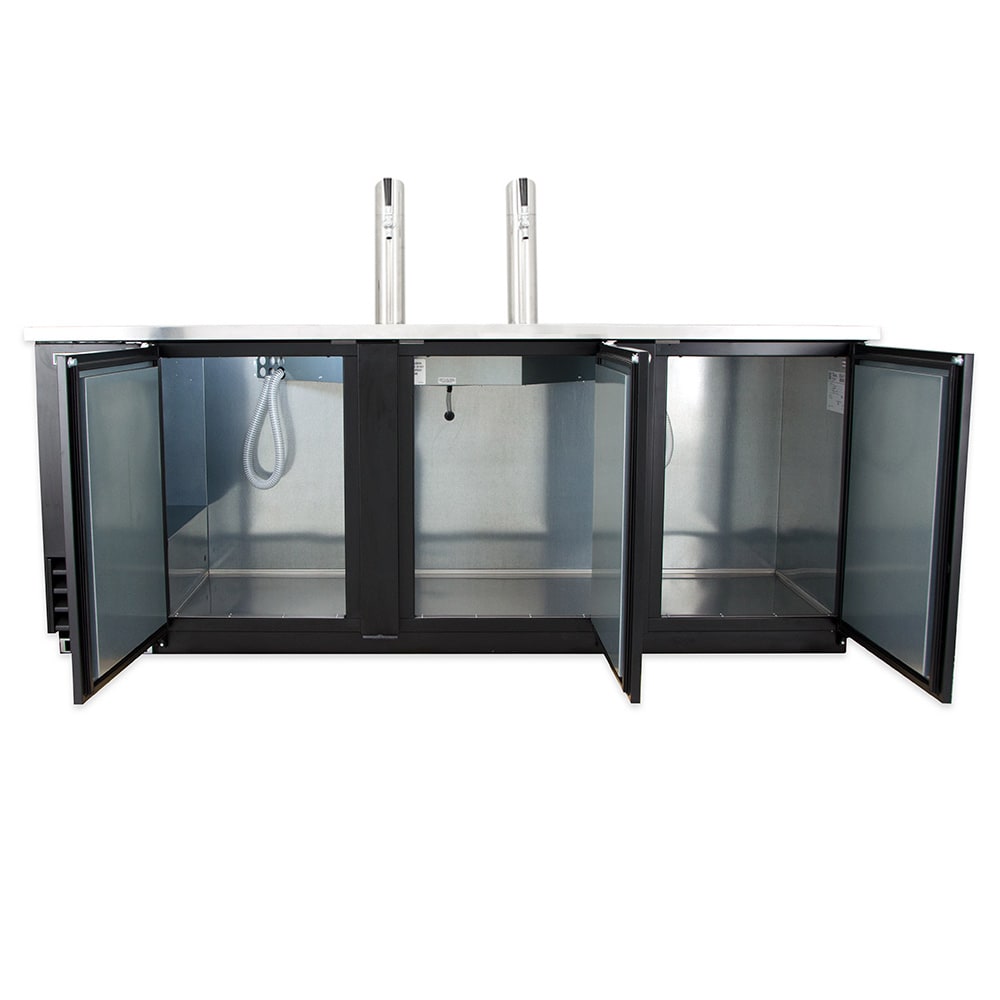

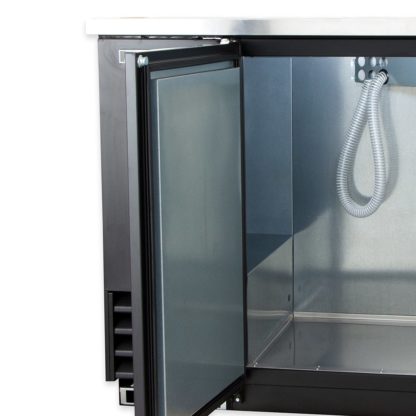

• Galvanized steel interior walls are durable for heavy use
• Door threshold protector prevents damage when loading and unloading product
• Entire cabinet is insulated with foamed-in-place polyurethane to retain cold air
• Welded steel frame with black powder coating improves cabinet structure

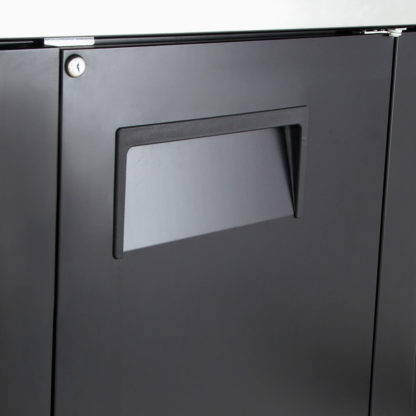

• 12-in.-long, recessed handles are foamed in place using sheet metal interlocks for permanent attachment

Dimensions & Utilities

• 90⁵/₁₆ in. W x 28 ¹¹/₁₆ in. D x 52³/₄ in. H
• 2.8 A, ¹/₄ HP

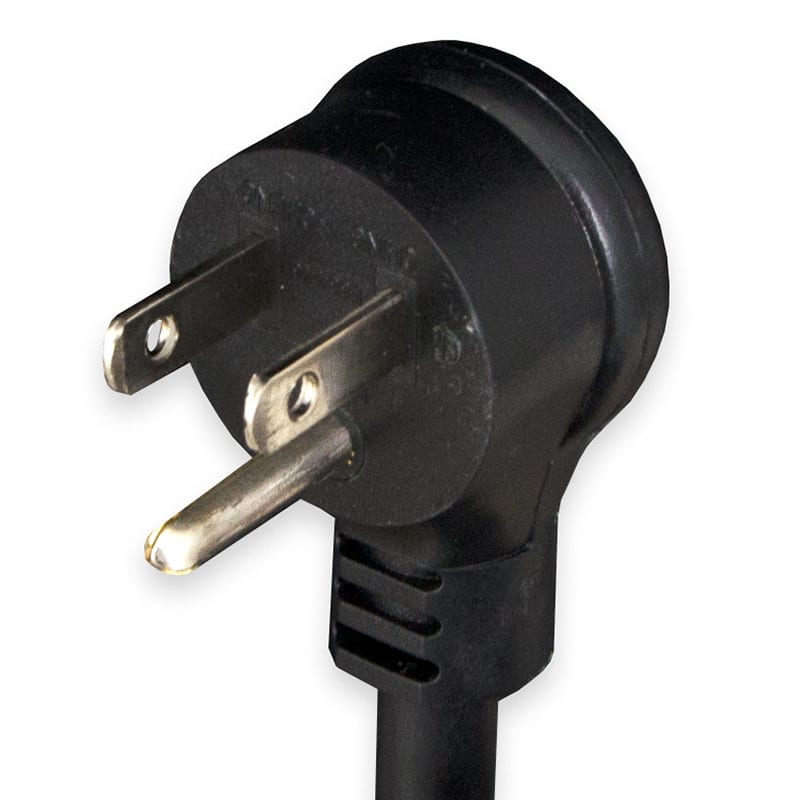

• 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug

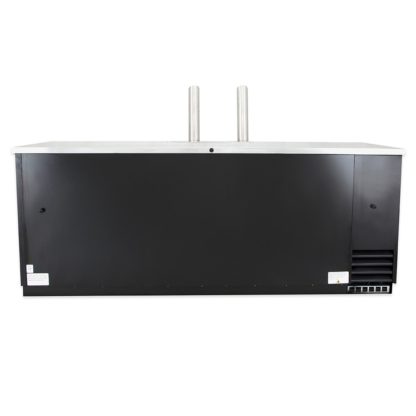

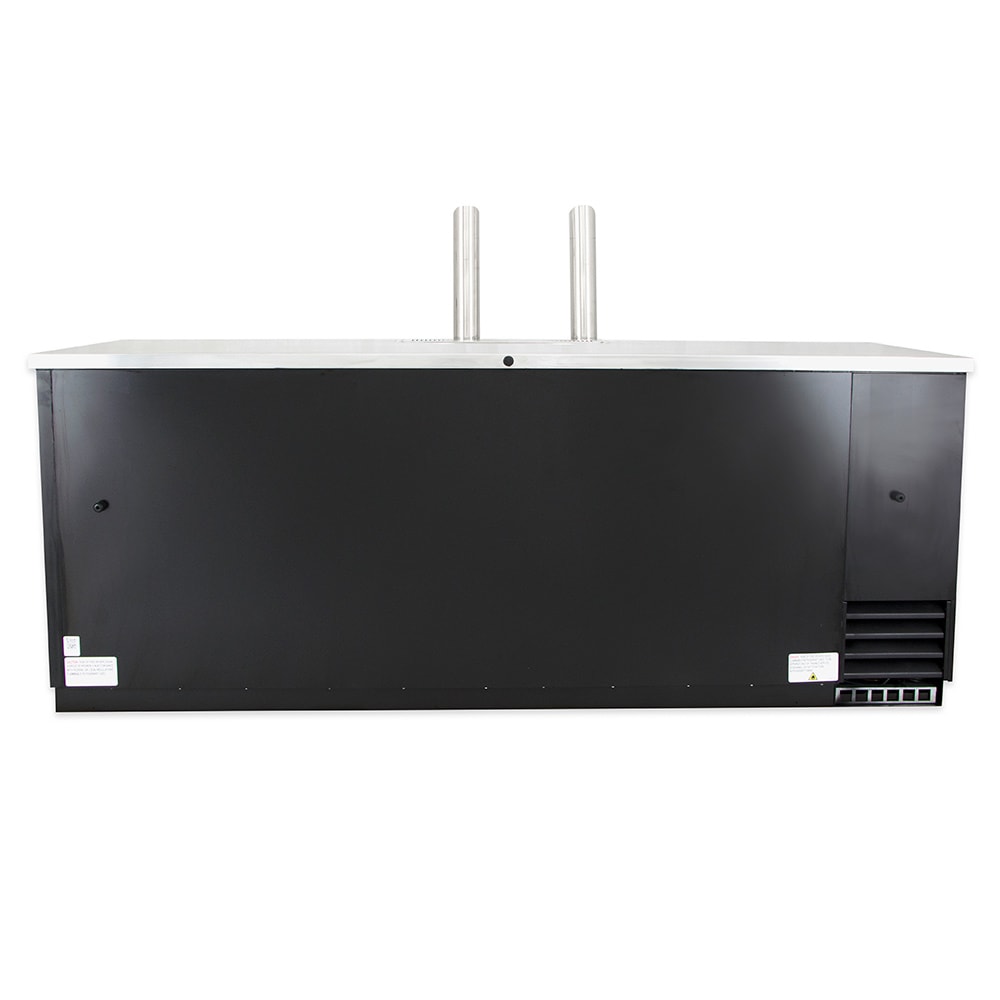

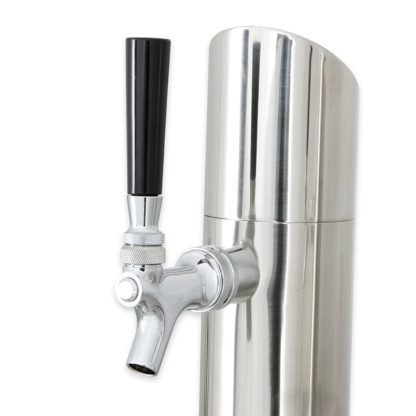

Draft Beer Cooler, (4) 1/2 keg capacity, stainless steel counter top, (3) solid hinged doors with locks, (2) 3″ dia. insulated beer columns with single faucet draft arm, black vinyl front & sides exterior, aluminum back, galvanized interior with stainless steel floor, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA, ENERGY STAR
