Description

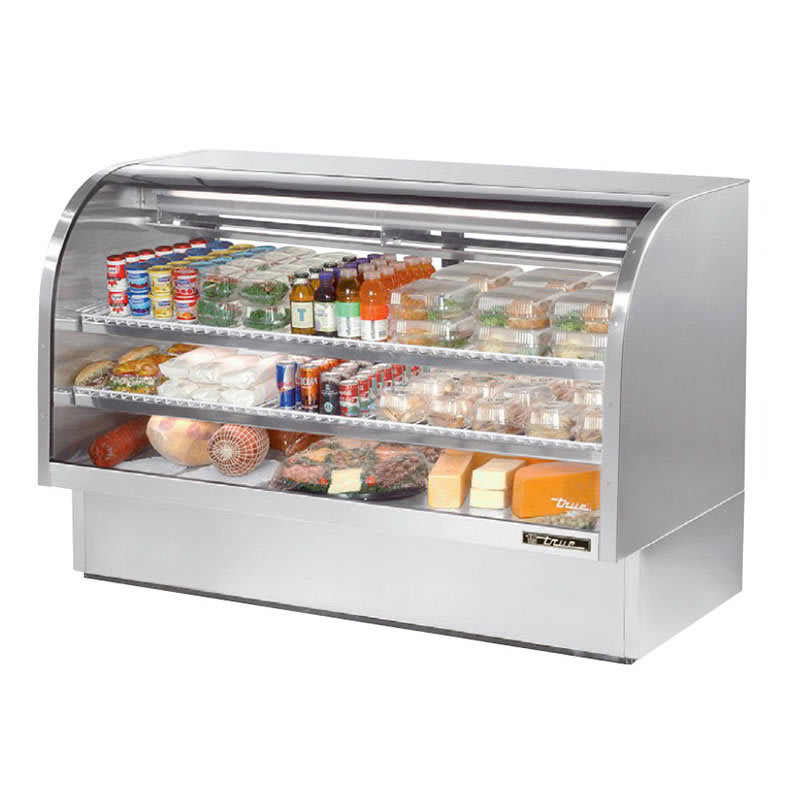

The True TCGG-72-S-LD full-service deli case has a durable stainless steel exterior with double-pane, curved glass that is insulated to retain cold air. Also constructed of stainless steel, the interior is insulated with foamed-in-place polyurethane. Coved corners on the floor aid in cleaning since they do not gather debris. The unit’s adjustable, cantilevered shelves are coated in PVC, which makes them sturdy, and the rear doors are composed of thermal glass inserts with mitered plastic channel frames. These doors self-close and slide on stainless steel V-channels.
The True TCGG-72-S-LD full-service deli case has a temperature range of 38 to 40 degrees Fahrenheit, which is maintained by a self-contained capillary tube system that holds and meters R134A refrigerant. This unit has an extra-large evaporator coil, a high-horsepower compressor, and a large condenser to help maintain cool temperatures. To aid in servicing, the condensing unit slides out and can be accessed from behind a panel at the rear of the unit. The gravity coil refrigeration system is high humidity, suitable for housing salads, deli meats, and cheeses.
Product Details
- Exterior front, sides, back, and top constructed of stainless steel
- Interior sides and floor constructed of stainless steel
- Floor has coved corners that do not gather debris
- Foamed-in-place polyurethane insulation retains cold air
- Insulated, double-pane curved glass provides product visibility and additional insulation
- Black powder-coated steel frame rail is fitted with leg levelers
- 2 adjustable, cantilevered shelves coated in PVC for strength
- Rear doors composed of double-pane thermal glass inserts on mitered plastic channel frames
- Doors self-close and have a counter-balanced weight system that ensures smooth closure
- Doors fit within plastic channel frame and ride on stainless steel V-channel with stainless steel bearings
- 3 LED light sources illuminate the interior
Refrigeration System
- High-humidity gravity coil refrigeration system is useful for chilling salads, deli meats, and cheese
- Temperature holding range: 38-40 degrees F
- Self-contained capillary tube system meters refrigerant
- Uses environmentally friendly R134A refrigerant
- Extra-large evaporator coil balanced with a high-horsepower compressor and large condenser maintain cool temperatures
- Defrost system is automatic, time initiated, and time terminated
- Condensing unit behind panel in the back of the deli case slides out for servicing
- Epoxy-coated evaporator is resistant to corrosion
Dimensions & Utilities
- Shelves: 667⁄8 in. W x 225⁄32 in. D

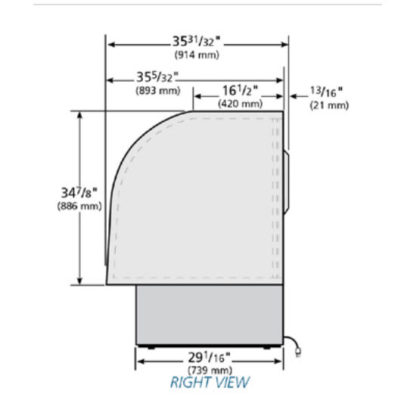

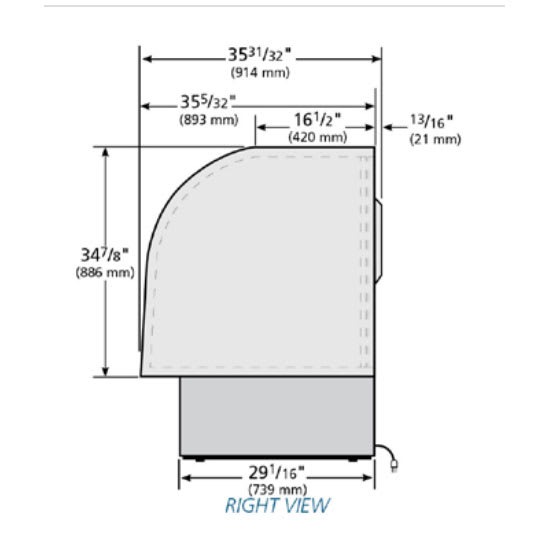

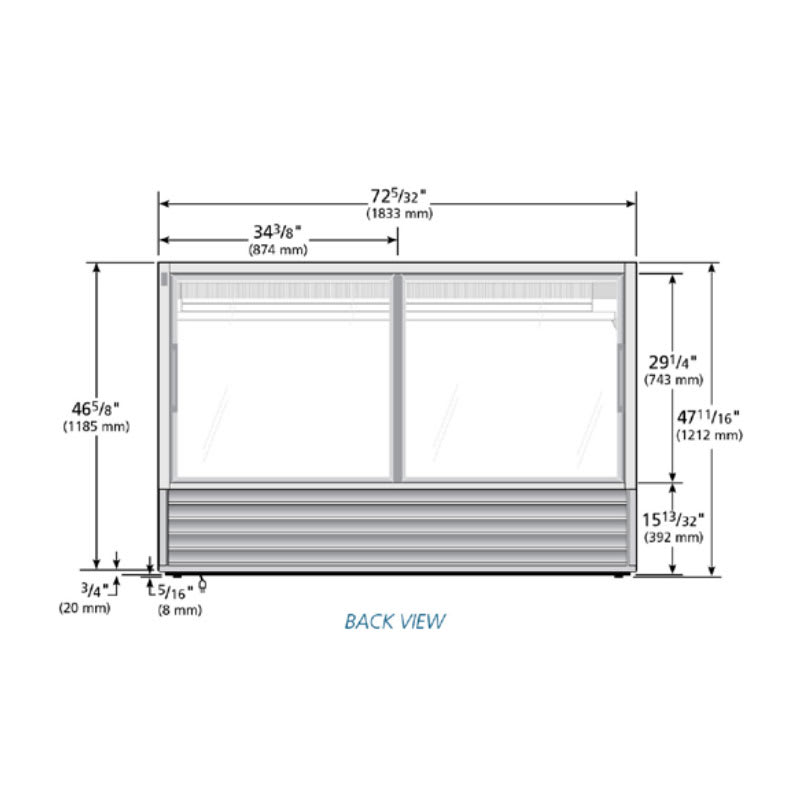

- Overall: 721⁄4 in. W x 361⁄8 in. D x 473⁄4 in. H
- 16 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-20P plug
Curved Glass Deli Case, 72-1/4″W, service type, self-contained refrigeration, gravity coil 55% RH, envir. 75°F, (2) sliding Low-E thermal glass rear doors, (2) adjustable white wire shelves, LED interior lights, stainless steel interior & exterior, stainless steel floor with coved corners, 3/4 HP, 115v/60/1-ph, 16.0 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA
