Description
True Refrigeration TBB-24-72G-HC-LD

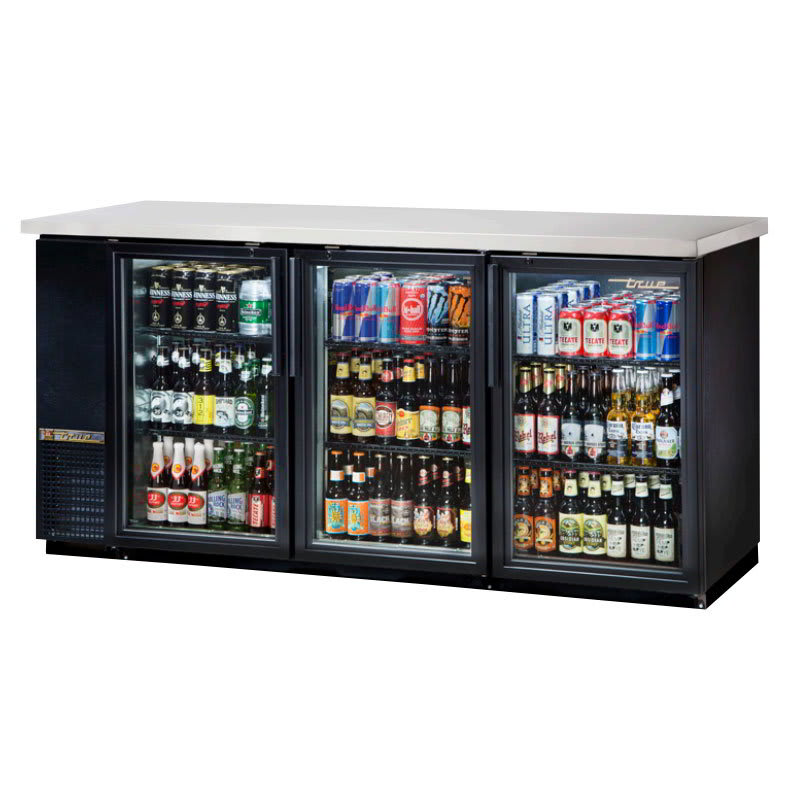

The True TBB-24-72G-HC-LD three-section bar refrigerator has three glass doors that can be used to merchandise products in customer-facing applications. LED lights shine on product to enhance visibility as it sits on six adjustable PVC-coated shelves. This unit can accommodate 105 six-packs of 12-ounce cans or three half-barrel kegs when the shelves are removed. Surfaces in the cabinet are stainless steel and steel coated to resist rusting. To prevent damage when loading product, a door threshold protector is built into the unit.
In addition to a black laminate vinyl exterior, this unit has a stainless steel countertop that can be used as a work station or a place to hold the register. Structure is added by the steel frame rail, and cold air stays inside due to foamed-in-place polyurethane insulation. A capillary tube system sends R290 hydrocarbon refrigerant through the True TBB-24-72G-HC-LD three-section back bar cooler so that it maintains a user-set temperature between 33 and 38 degrees Fahrenheit. For cleaning or servicing, the condenser can be reached by sliding it out from behind the grille.
Product Details
- Can accommodate (105) 6-packs of 12-oz. cans or 3 half-barrel kegs
- 6 PVC-coated wire shelves are adjustable in 1/2-in. increments
- Capillary tube system uses R290 hydrocarbon refrigerant
- Temperature holding range: 33-38 degrees F
- Consistent amount of air is produced by the condenser and evaporator fan motors
- Epoxy-coated, corrosion-resistant evaporator
- Front grille comes out to provide access to the refrigeration system
- Products are visible with LED interior lights
Product Features
Heavy-duty Construction
- Resists chipping and peeling with its laminated black vinyl exterior
- Interior floor is stainless steel for quick cleanup
- Door threshold protector reduces the risk of damage from loading and unloading product
- High-density polyurethane insulation retains cold air
- Structure is added through the steel frame rail
- Reduce the risk of cold air leaking out with magnetic gaskets
- 3 swing doors each have a 12-in. extruded aluminum handle
- Glass doors enable users to see product without releasing cold air
- Prevent tampering with door locks

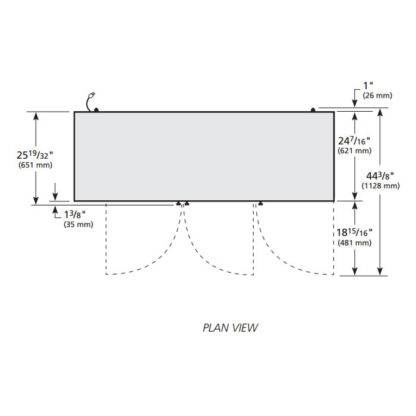

Dimensions & Utilities
- Right and left shelves: 19 in. W x 161/4 in. D
- Center shelves: 195/8 in. W x 161/4 in. D

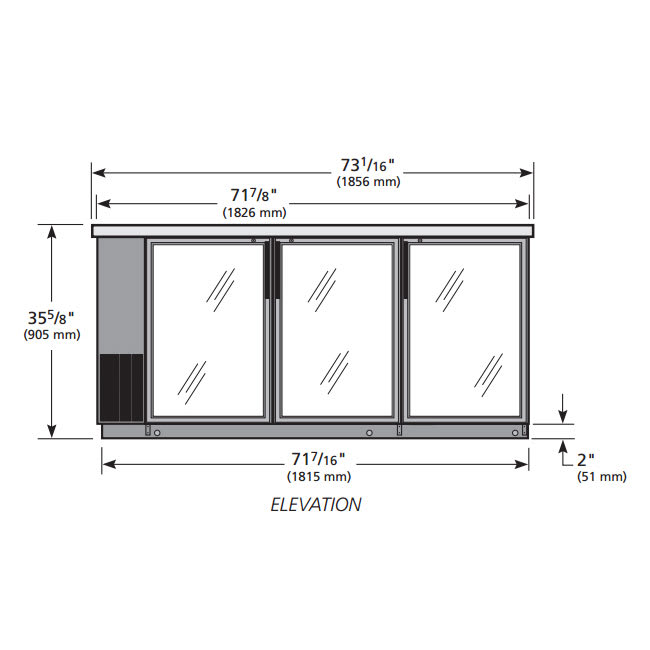

- Overall: 731/8 in. W x 267/8 in. D x 355/8 in. H
- 2.7 A, 1/4 HP
- 115 V/60 Hz/1 ph, 7-ft. cord with a NEMA 5-15P plug
Back Bar Cooler, three-section, 73-1/8″W, (105) 6-packs or (3) 1/2 keg capacity, (6) wire shelves, condensing unit on left, stainless steel top, (3) glass doors with locks, LED interior light, galvanized interior with stainless steel floor, black powder coated cold-rolled steel exterior, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 2.7 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
