Description

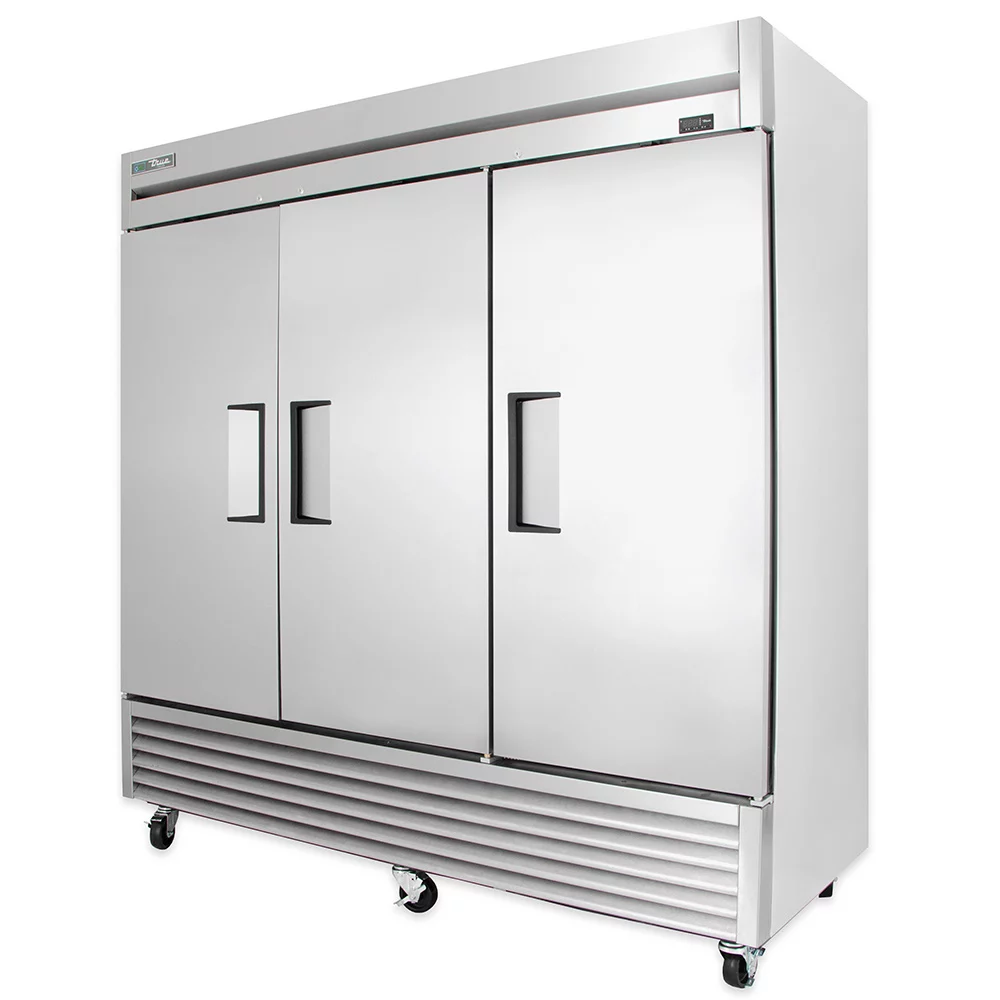

The True T-72-HC three-section refrigerator is built with a powerful compressor and large evaporator and condenser coils to maintain cabinet temperatures between 33 and 38 degrees Fahrenheit. A self-contained capillary tube system in the unit holds and controls the flow of R290 hydrocarbon refrigerant. For movement, 4-inch-diameter stem castors are bottom mounted and the front set locks for stability. Each door has a magnetic gasket that snaps into the frame to prevent cold air from seeping out.

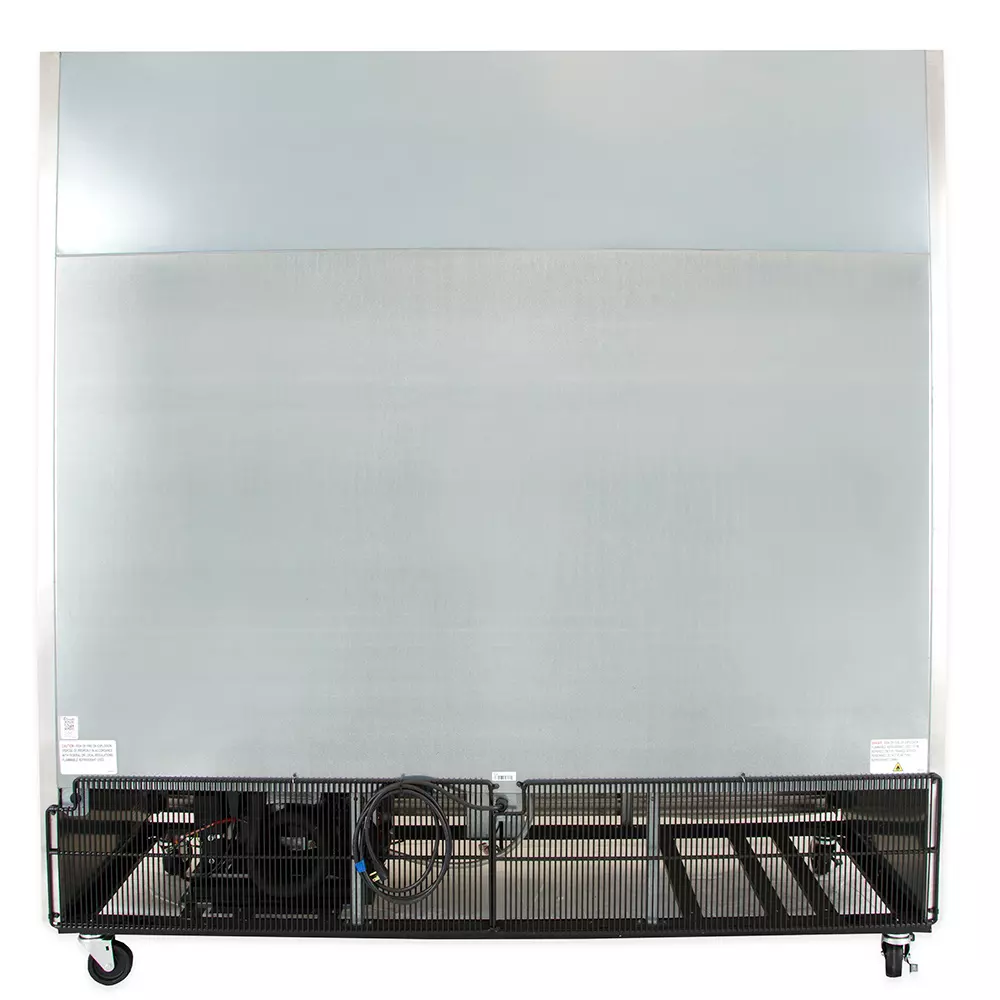

The equipment’s condensing unit is located in the bottom of the cabinet, so critical components are accessible for cleaning and maintenance. A bottom-mounted condensing unit also means the unit runs in the coolest part of the kitchen where it is less likely to capture airborne grease. For energy-efficiency, the True T-72-HC reach-in refrigerator is insulated with foamed-in-place polyurethane insulation.
Product Details
- Self-contained capillary tube system uses R290 hydrocarbon refrigerant
- Temperature range: 33-38 degrees F
- Powerful horsepower compressor is balanced with a large condenser and evaporator coils for quick temperature recovery
- Large evaporator fans powered by sealed, self-lubricating, cast iron motors move air through cabinet consistently for even temperatures
- Bottom-mounted condensing unit is accessible for cleaning and maintenance
- 4-in.-dia. stem castors enable the unit to be wheeled out for cleaning underneath
- 9 gray PVC-coated wire shelves are included
- Each shelf mounts on 4 chrome-plated clips and is adjustable along support pilaster on 1⁄2-in. increments
- Cabinet interior is illuminated with incandescent lighting, which is safety-shielded for break protection

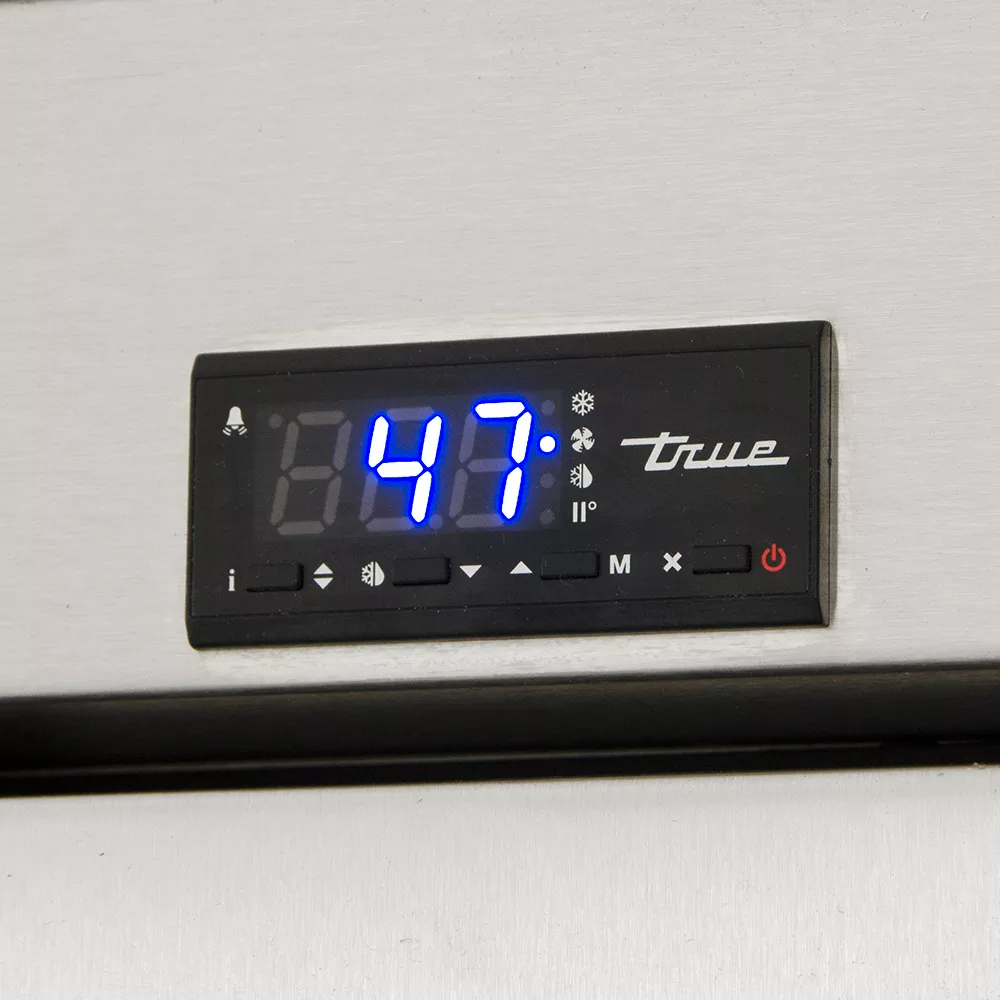

- Exterior temperature display shows internal temperatures
- Epoxy-coated evaporator is corrosion protection
- NSF/ANSI Standard 7 compliant to hold open food products
- cULus and UL-EPH listed
- Made with innovation in the U.S.
Durable Doors and Cabinet
- Finished with durable stainless steel fronts
- Interiors are lined with durable, clear-coated aluminum to simplify cleaning
- Cabinet ends, back, and top are finished in anodized aluminum
- Interior floor is made of stainless steel with coved corners
- Cabinet structure is insulated with foamed-in-place polyurethane
- Heavy-duty steel frame rail is powder-coated black for rust resistance
- 12-in. recessed door handles are attached with a sheet metal interlock to ensure they stay permanently attached
- Doors are self-closing to prevent cool air loss
- Door gaskets snap into place with magnets and are removable without tools for cleaning
Dimensions & Utilities
- Shelves: 241⁄8 in. W x 223⁄8 in. D
- Overall: 781⁄8 in. W x 291⁄2 in. D x 835⁄16 in. H
- 6.9 A, 3⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
| Manufacturer | True Refrigeration |
| Color | Silver |
| Compressor Location | Bottom |
| Cubic Feet | 72 |
| Depth (in) | 29.5 |
| Door Type | Solid |
| Doors | Full |
| Evaporator Type | Capillary Tube |
| Height (in) | 78.38 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Interior Material | Aluminum |
| NEMA | 5-15P |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
| Rating | Better |
| Refrigerant | R290 |
| Sections | 3 |
| Supports | Casters |
| Thermometer Type | Digital |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 78.13 |
| Product | Reach-In Refrigerators |
| Type | Reach In |
| Weight | 575.00 |
