Description

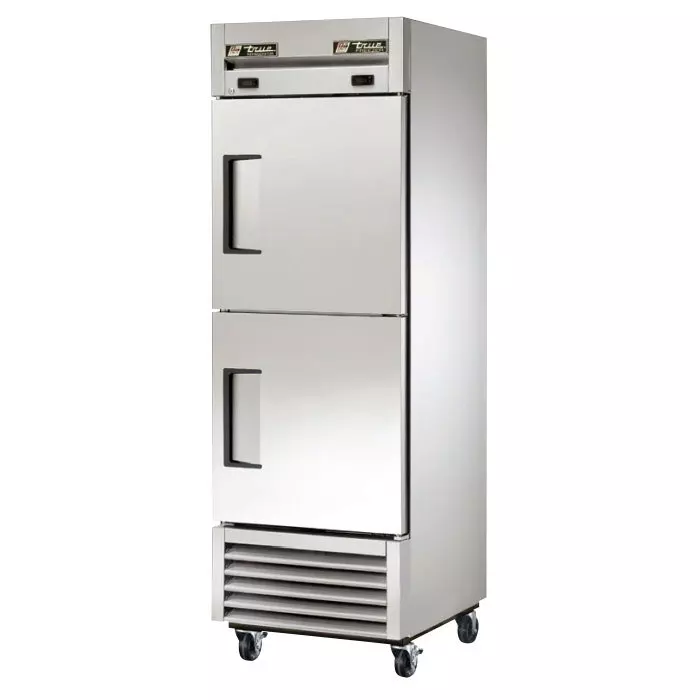

This True T-23DT-HC dual-temperature refrigerator freezer is ideal for establishments that need both units and have a small footprint to fill. While the lower freezer section maintains -10 degrees Fahrenheit, the refrigerated section on top maintains a temperature range from 33 to 38 degrees Fahrenheit. These temperatures are controlled by R290 hydrocarbon refrigerant through a capillary tube system, and air is evenly distributed by condenser and evaporator fan motors.

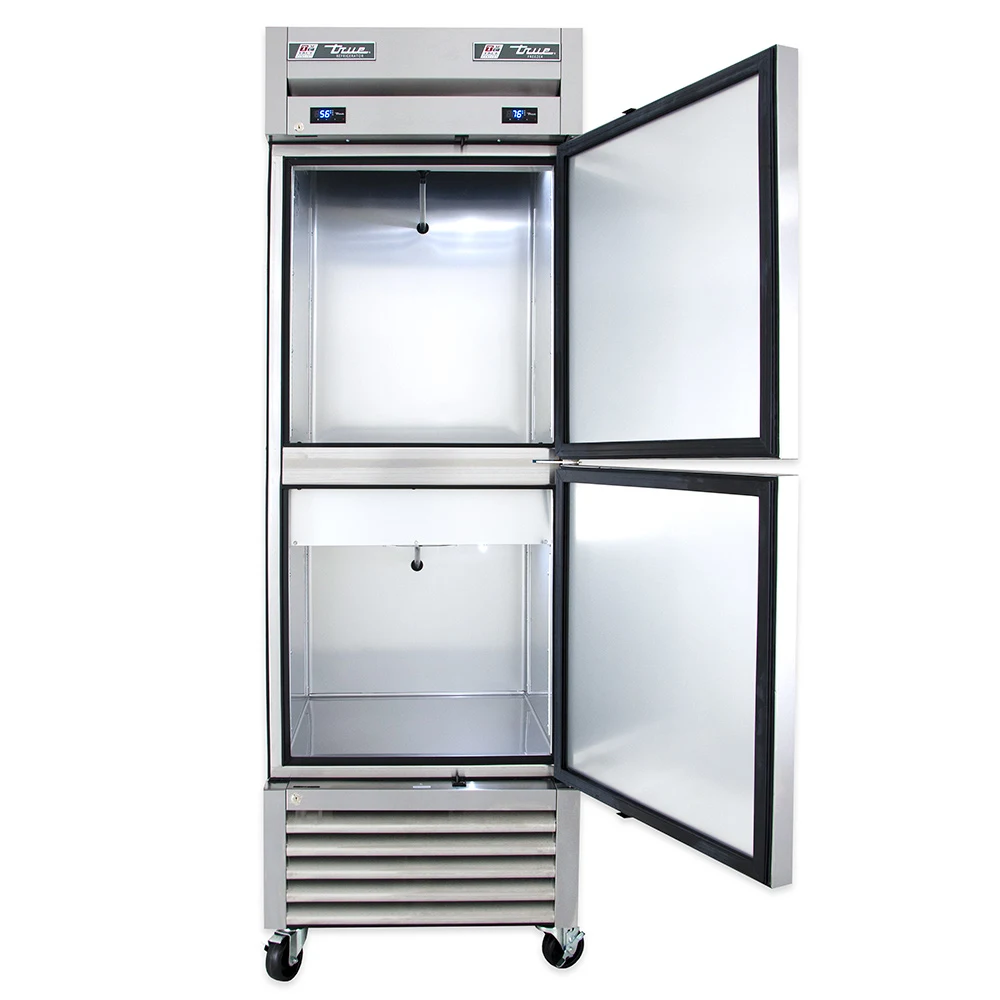

Each interior section of the T-23DT-HC refrigerator freezer is lined with clear-coat aluminum. Both floors are made of stainless steel with coved corners, and the entire unit is NSF/ANSI Standard 7 compliant for holding open foods. To provide visibility, each section has LED interior lights, while product is stored on three adjustable, PVC-coated shelves. Both doors are hinged on the right, so they open on the left, and there are two solid, right-hinged doors.
Product Details
- 2 solid, right-hinged half doors
- Stainless steel door exterior
- Aluminum door liners are made of the same clear-coated aluminum as cabinet liner
- Torsion-type closure system prevents doors from being inadvertently left open
- Door locks protect contents while equipment is left unattended
- Recessed door handles measure 12 in. long and are foamed in place with a sheet metal interlock for permanent attachment
- Magnetic door gaskets are constructed of one piece and removable without tools
- Exterior is built with a stainless steel front for durability and corrosion resistance
- Cabinet interior is lined with clear-coat aluminum
- Stainless steel floor has coved corners to simplify cleaning
- Cabinet is insulated with foamed-in-place polyurethane
- Black, powder-coated steel frame is welded for durability
- 4-in. stem castors are fitted to frame rail and the front pair lock
- Freezer frame and door are fitted with low-wattage heater to prevent condensation
- 3 gray PVC-coated shelves hold product
- Shelves are adjustable on support pilasters in 1⁄2-in. increments
- LED interior lights provide visibility
- NSF/ANSI Standard 7 compliant to hold open food products
- cULus and UL-EPH listed
- Made with innovation in the U.S.
Self-contained Refrigeration Systems
- Dual-temperature unit with refrigerator top section and freezer bottom section
- Two self-contained capillary tube systems maintain each section’s temperature
- Refrigerator temperature range: 33-38 degrees F
- Freezer operating temperature: -10 degrees F
- Exterior temperature displays indicate the holding temperature of each section
- Uses R290 hydrocarbon refrigerant
- Electronically commutated fan motors move a consistent volume of air through the cabinet to evenly cool compartments
- Freezer defrosts automatically with a time-initiated, temperature-terminated system
- Evaporators are epoxy coated for corrosion protection
| Compressor Location | Bottom |
| Cubic Feet | 19 |
| Depth (in) | 29.5 |
| Door Design | Half |
| Door Type | Solid |
| Height (in) | 78.38 |
| Hertz | 60 |
| Interior Material | Aluminum |
| Made in USA | Yes |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
