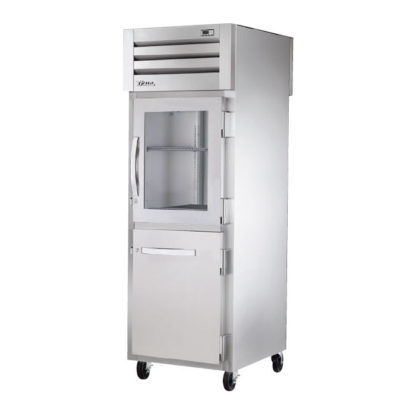

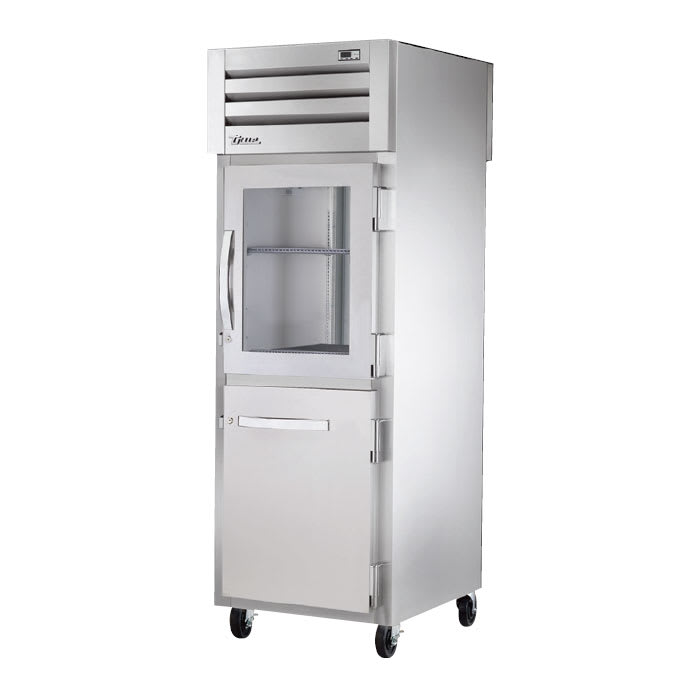

True Refrigeration STR1RPT-1HG/1HS-1G-HC
To cool products, the True STR1RPT-1HG/1HS-1G-HC Spec Series® one-section pass-thru refrigerator uses a capillary tube system. This system is self-contained, so all the cooling parts sit in one place. Keeping the interior at a set temperature between 33 and 38 degrees Fahrenheit, R290 hydrocarbon refrigerant moves through the coils. Condenser and evaporator fans blow consistently to circulate cold air through the cabinet, where it can move around products and between the gaps of the wire shelves. For durability, these shelves have a chrome-plated finish, and LED lighting keeps the interior bright so that employees can find items quickly. To prevent unauthorized access, each door has a bolt lock.
The True STR1RPT-1HG/1HS-1G-HC single-section pass-thru refrigerator is made of stainless steel, which is dent and corrosion resistant. Its front has two half doors—glass and stainless steel—and the back has one glass full door. The glass doors are thermal insulated and double paned, providing visibility and blocking heat. Each door has a heavy-duty handle, so it can be opened and closed many times without being loosened or damaged. Cam-lift hinges close the doors when they are opened less than 120 degrees, and a stay-open mechanism keeps the doors propped open when they are pulled past 120 degrees. When cleaning the refrigerator, the door gaskets can be removed without tools, and the floor underneath can be reached by moving the unit on its castors.
Product Details
- Part of the Spec Series
- Made of stainless steel to avoid denting and rusting
- Polyurethane insulation is foamed in the cabinet’s walls
- 3 wire shelves are plated with chrome for strength
- LED lights provide visibility
- Castors enable movement
- Front 2 castors can lock in place
Pass-thru Doors
- Front has a glass half door on top with a solid stainless steel half door on bottom
- Back has a glass full door
- All glass is double paned and thermal insulated
- Equipped with heavy-duty handles and bolt-style locks
- Self-close under 120 degrees
- Stay open past 120 degrees
- Gaskets are magnetic and removable
Refrigeration System
- Temperature holding range: 33-38 degrees F
- Digital temperature display and electronic controls
- Self-contained system holds all cooling components in the same place
- Capillary tubes control R290 hydrocarbon refrigerant flow
- Evaporator and condenser fan motors cool contents evenly
- Evaporator is epoxy coated and rust resistant
- Top mounted to prevent system from pulling in floor debris
Dimensions & Utilities
- Shelves: 265⁄16 in. W x 219⁄16 in. D
- Overall: 271⁄2 in. W x 397⁄16 in. D x 841⁄8 in. H
- 3.8 A, 1⁄4 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
SPEC SERIES® Refrigerator, pass-thru, one-section, (1) glass & (1) stainless steel half doors front, (1) glass door rear, locks, cam-lift hinges, digital temperature control, (1) interior kit, LED interior lights, stainless steel front & sides, stainless steel interior, 5″ castors, R290 Hydrocarbon refrigerant, 1/4 HP, 115v/60/1-ph, 3.8 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
