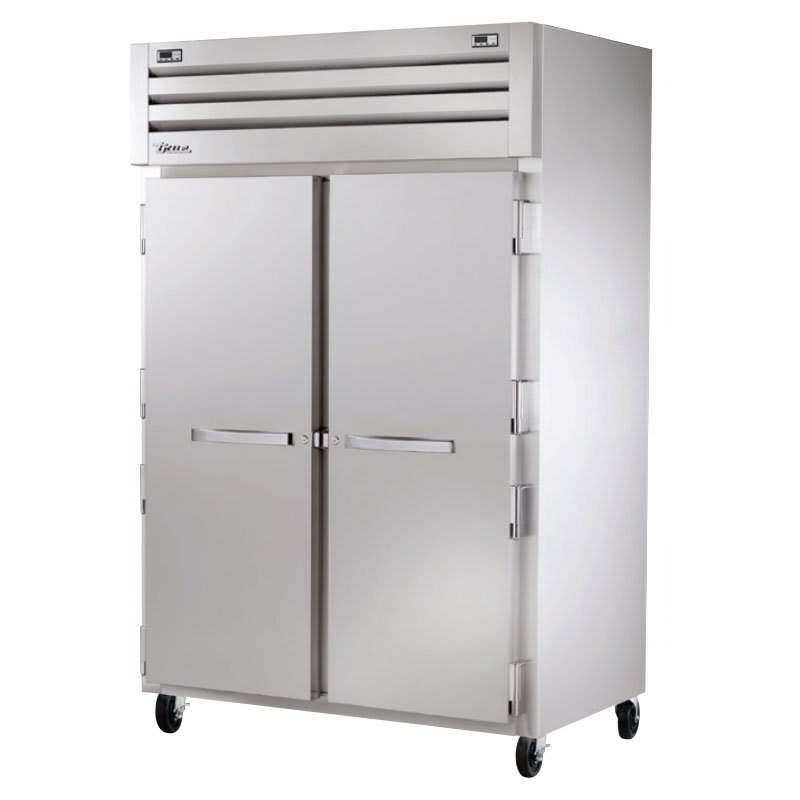

True STG2DT-2S 53″ Two Section Commercial Refrigerator Freezer – Solid Doors, Top Compressor, 115v

The True STG2DT-2S Spec Series® two-section refrigerator freezer has two independent capillary tube systems that control the flow of R134A refrigerant to the refrigerator and R404A refrigerant to the freezer. Its refrigeration system is mounted on top to prevent the condenser from taking in dirt and debris. The refrigerator holds 33 to 38 degrees Fahrenheit and the freezer maintains -10 degrees Fahrenheit. To efficiently move air, the evaporator and condenser fan motors are electronically commutated, using little energy and creating marginal heat. The freezer has a defrost cycle that runs at a set time and stops when the needed temperature is reached.

This unit has two stainless steel doors with locks to minimize theft and tampering. Cold air is sealed inside with one-piece magnetic gaskets, which can be removed without tools. The doors can stay open past 120 degrees for loading and unloading, and they close on their own if left open under 120 degrees. Inside, six PVC-coated wire shelves support product. LED lights ensure product is visible.

To retain temperatures, this True STG2DT-2S reach-in, dual-temperature refrigerator freezer is foamed with polyurethane insulation. Its exterior door is stainless steel and its sides are aluminum, resisting corrosion and dents. The interior walls and back are aluminum with a stainless steel floor and ceiling that are simple to wipe down. For movement, 5-inch-diameter castors are in place and the front set locks for stability.

Product Details

• Part of the Spec Series
• Stainless steel exterior door with matching aluminum sides
• Aluminum interior back and walls with stainless steel ceiling and floor
• Polyurethane foam insulation retains temperatures
• 5-in.-diameter castors with locking front set
• 6 PVC-coated wire shelves hold product
• Door locks prevent theft and tampering
• Metal door handles provide a durable grip
• Doors can stay open 120 degrees and close on their own
• 1-piece magnetic gaskets can be removed without tools
• LED lights brighten the interior
• 2 digital temperature displays (1 for the refrigerator and 1 for the freezer)

Refrigeration System

• Refrigerator uses R134A refrigerant; freezer uses R404A refrigerant
• Refrigerator temperature range: 33-38 degrees F
• Freezer operating temperature: -10 degrees F
• 2 independent capillary tube systems hold and regulate the flow of refrigerant
• Electronically commutated condenser and evaporator fan motors circulate air while reducing energy consumption and heat production
• Top mounted to keep it apart from floor debris and the food zone
• Epoxy-coated evaporator resists corrosion
• Freezer has an automatic defrost feature that is time initiated and temperature terminated
• Evaporator fan motor delays while the defrost cycle is running

Dimensions & Utilities

• 52⁵⁄₈ in. W x 35¹⁄₄ in. D x 84¹⁄₈ in. H
• 11.6 A, ¹⁄₂ HP refrigerator, ¹⁄₂ HP freezer
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

SPEC SERIES® Refrigerator/Freezer, reach-in, two-section, (2) stainless steel doors, locks, cam-lift hinges, digital temperature control, (6) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5″ castors, R 1/3HP, F 1/2HP, 115v/60/1-ph, 11.6 amps, NEMA 5-20P, cULus, UL EPH Classified, Made in USA
