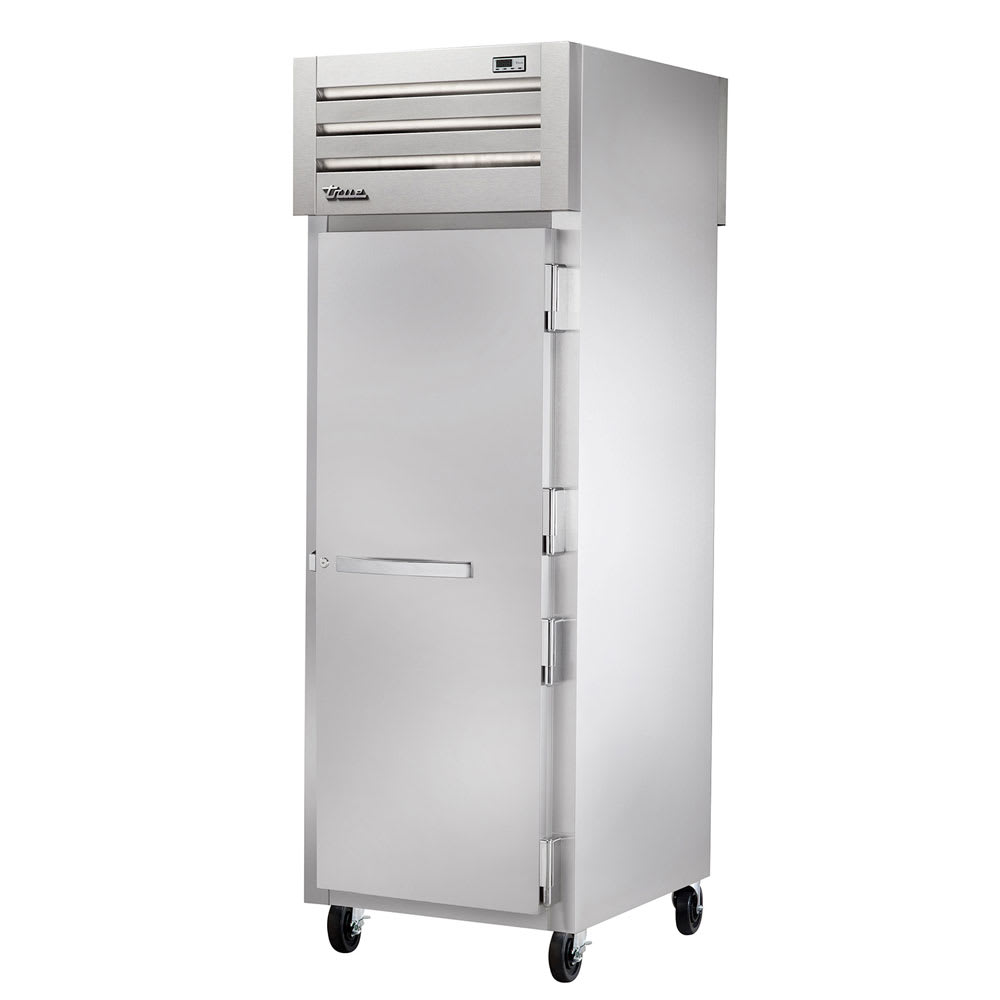

True STG1FPT-1S-1S 27″ One Section Pass Thru Freezer, (1) Solid Door, 115v

The True STG1FPT-1S-1S SPEC SERIES® pass-thru freezer has durable, stainless steel doors and a front with corrosion-resistant aluminum sides. For access from the front and back, the unit has a pass-thru design, while the interior consists of aluminum side walls and back with a stainless steel floor and ceiling. To retain cold air, the unit is insulated with environmentally friendly foamed-in-place polyurethane. Inside, three PVC-coated wire shelves provide storage space for products, and a digital display is located on the exterior for temperature monitoring.

Self-closing doors on the True STG1FPT-1S-1S pass-thru freezer stay open at a 120-degree angle to assist with loading product. Bolt-style door locks prevent theft, while the magnetic door gasket creates a seal around the doors. A top-mounted refrigeration system has a self-contained capillary tube system that uses R404A refrigerant to cool the unit, maintaining a temperature of -10 degrees Fahrenheit. Electronically commutated evaporator and condenser fan motors move a consistent air volume to produce less heat and conserve energy better than other motors.

Product Details

• Part of the SPEC SERIES
• Exterior constructed of stainless steel door and front with aluminum sides
• Interior constructed of aluminum side walls and back with stainless steel floor and ceiling
• 3 heavy-duty, PVC-coated wire shelves
• Environmentally friendly, foamed-in-place polyurethane insulation
• Self-closing doors stay open at 120 degrees
• Bolt-style door locks prevent theft
• Magnetic door gaskets are removable without tools
• 4 external, cam-lift door hinges
• Exterior digital display monitors temperature
• LED lighting illuminates the interior
• 5-in. plate castors have locks on the front set

Refrigeration System

• Self-contained capillary tube system
• Operating temperature: -10 degrees F
• Electronically commutated evaporator and condenser fan motors reduce energy consumption and offer more motor reliability
• Top-mounted to maximize interior capacity
• Time-initiated, temperature-terminated automatic defrost system
• Uses R404A refrigerant

Dimensions & Utilities

• 27¹⁄₂ in. W x 39¹⁄₈ in. D x 84¹⁄₈ in. H
• 8.7 A, ³⁄₄ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

SPEC SERIES® Freezer, pass-thru, one-section, (1) stainless steel door front & rear with locks, cam-lift hinges, digital temperature control, (3) gray shelves, LED interior lights, stainless steel front, aluminum sides, aluminum interior, 5″ castors, 3/4 HP, 115v/60/1-ph, 8.7 amps, NEMA 5-15P, cULus, UL EPH Classified, Made in USA
