Description

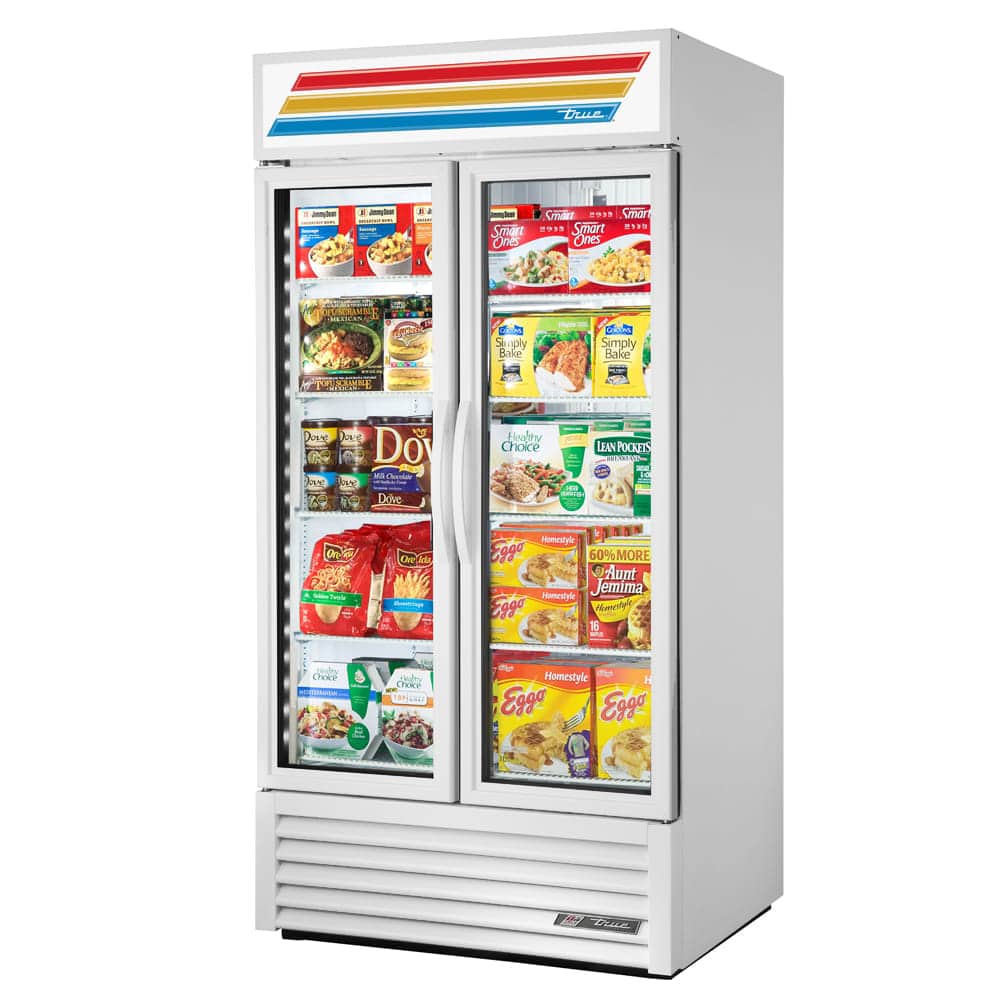

True Refrigeration GDM-35-HC~TSL01 Description
The high horsepower of the True GDM-35-HC~TSL01 glass door merchandiser provides temperatures ranging from 33 to 38 degrees Fahrenheit, keeping stock at safe levels. Condenser and evaporator fan motors ensure fast temperature cool down and fast recovery with high-volume usage, giving operators a sense of stability and reliability. To keep the cabinet temperature cool, the refrigeration system uses eco-friendly R290 hydrocarbon refrigerant, and the condensing unit is mounted on the bottom of the cabinet for maintenance and cleaning. Behind the two double-pane, thermal-insulated glass doors is a brightly illuminated, white aluminum interior with a stainless steel floor. Eight heavy-duty wire shelves are coated in durable PVC and adjustable on 1⁄2-inch increments to support displayed items. To protect the cabinet from corrosion and degradation, the heavy-duty steel frame has a White powder coating. Since the unit has a bottom-mounted condenser, the lower shelf is raised to a no-stoop height, so customers can clearly see and access refrigerated products. An eye-catching, illuminated sign panel is a great way to gain customer attention, and the True GDM-35-HC~TSL01 glass door merchandiser has LED interior lights to brighten the interior, enhancing product visibility.
Product Details
- 8 PVC-coated wire shelves are adjustable on 1⁄2-in. increments
- Each shelf includes 4 chrome-plated shelf clips
- Lower floor shelf slightly raises products for visibility
- Exterior sign panel lights up to attract customers
- Each door has a 12-in. handle that eases door opening
- Self-closing doors help keep cool air in the cabinet
- Removable door gaskets are magnetic for cleaning and replacing
- Gaskets help trap cold air
- Products are visible because of the safety-shielded LED interior lights
- NSF-7 compliant to display and store packaged and bottled products
- CE approved; cULus and UL-EPH listed
- Made with innovation in the U.S.
Reliable Refrigeration System
- Refrigeration system maintains even temperatures for ideal product preservation
- Self-contained capillary tube system uses environmentally friendly R290 refrigerant
- Temperature range: 33-38 degrees F
- Evaporator and condenser fan motors ensure fast temperature recovery and cool downtime by producing a more consistent volume of air
- Evaporator is coated in epoxy to resist corrosion
- Bottom-mounted condensing unit eases maintenance
Cabinet Construction
- Stainless steel floor has a built-in drain to simplify cleaning
- White powder-coated steel exterior is durable and permanent
- White aluminum interior liner avoids peeling and chipping
- Polyurethane insulation keeps cold air in the cabinet
- Insulation is foamed in place to give the cabinet sturdiness
- Heavy-duty steel frame rail is White powder coated to resist corrosion
- Leg levelers enable installation on uneven flooring
- Mitered plastic channel frames on the double pane, thermal insulated glass doors
Dimensions & Utilities
- Shelves: 171⁄4 in. W x 211⁄8 in. D
- Overall: 391⁄2 in. W x 297⁄8 in. D x 785⁄8 in. H
- 6.5 A, 1⁄2 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
| Manufacturer | True Refrigeration |
| Color | White |
| Compressor Location | Bottom |
| Cubic Feet | 35 |
| Depth (in) | 29 7/8 |
| Door Design | Swing |
| Height (in) | 78 5/8 |
| Hertz | 60 |
| Hinge Configuration | Left/Right |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
| Sections | 2 |
| Shelving Type | Wire |
| Special Features | LED Lighting |
| Voltage | 115 |
| Warranty | 3-year Parts & Labor; additional 2 year warranty on compressor |
| Width (in) | 39 1/2 |
| Product | Display Refrigerators |
| Series | GDM Series |
| Weight | 370.00 |
