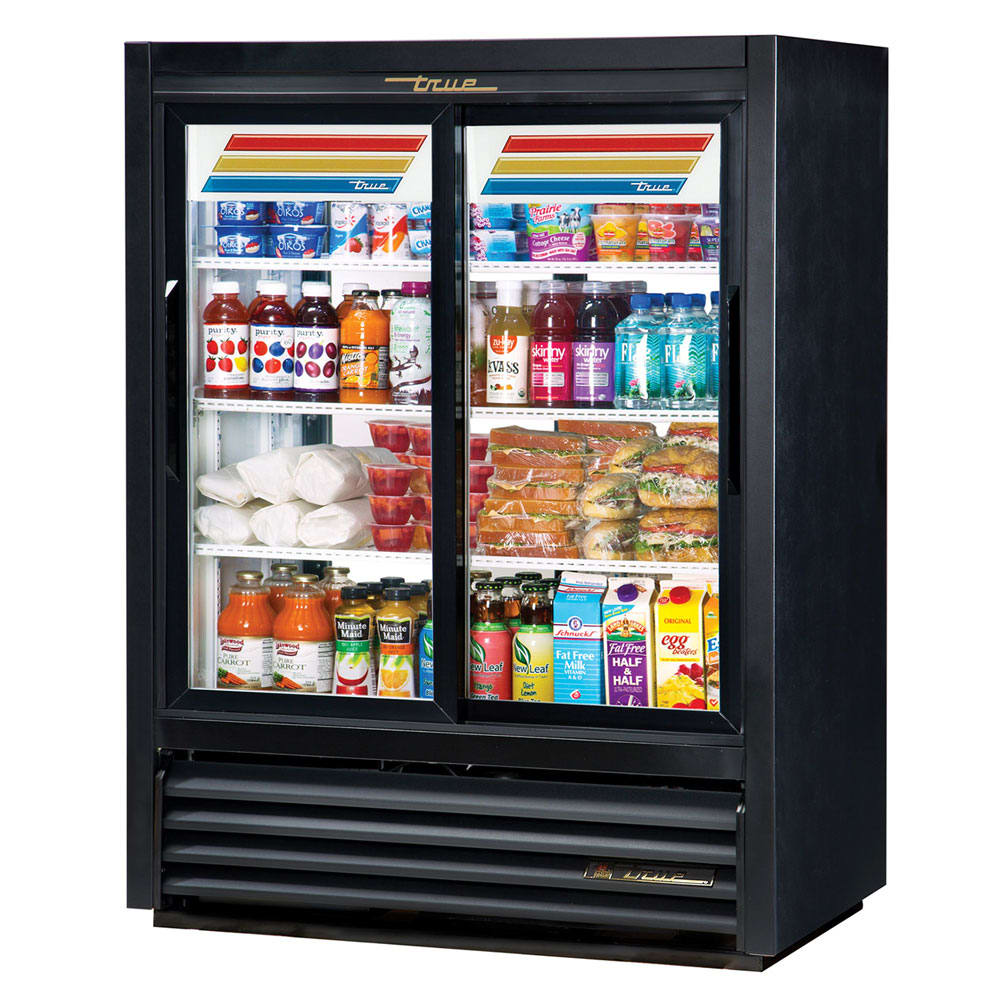

True GDM-33CPT-54-HC-LD 40″ Two Section Glass Door Merchandiser

Description

The True GDM-33CPT-54-LD two-section glass door merchandiser holds product at ideal temperatures ranging from 33 to 38 degrees Fahrenheit. An extra-large evaporator, high-horsepower compressor, and large condenser help maintain these temperatures. Its self-lubricated, sealed evaporator fan motor and large fan blades provide a low-velocity, high-volume airflow design, which quickly cools warm products, recovers cold temperatures, and maintains consistent holding temperatures. A self-contained capillary tube system uses environmentally friendly R134A refrigerant.

Three heavy-duty, PVC-coated wire shelves are adjustable on ¹⁄₂-inch increments to fit varying product sizes. This True GDM-33CPT-54-LD two-section glass door merchandiser has a sturdy, black laminated vinyl exterior and durable white aluminum interior. Polyurethane insulation is foamed in place throughout the cabinet to keep cold air inside the case, while the stainless steel floor resists corrosions and scratches.

Product Details

• 2 front and 2 back doors have double-pane, thermal-insulated glass that keeps cold air inside and provides cabinet visibility
• Self-closing doors help keep cold air in
• Each door has a 12-in. handle for access
• 3 heavy-duty, PVC-coated wire shelves are on ¹⁄₂-in. increments
• 4 chrome-plated shelf clips for each shelf
• LED interior lights help highlight products
• Door sign decal helps grab customer attention
• Heavy-duty steel frame rail is black powder coated to protect against corrosion and is fitted with leg levelers to stabilize the cabinet
• Whole cabinet has foamed-in-place, high-density polyurethane insulation that traps cold air
• Durable white aluminum interior liner and stainless steel floor
• Heavy-duty, black laminated vinyl exterior resists chipping and peeling
• Clean-out drain is built into the cabinet floor
• NSF-7 compliant to hold and/or display packaged or bottled product
• UL-EPH and cULus listed
• Made with innovation in the U.S.

Refrigeration System

• Temperature range: 33-38 degrees F
• Self-contained capillary tube system uses environmentally friendly R134A refrigerant
• Condensing unit is mounted on the bottom of the unit for maintenance
• No-stoop lower shelf helps showcase products
• Sealed, cast iron evaporator fan motor and larger fan blades provide low-velocity, high-volume airflow
• Airflow design ensures quick pull-down temperatures, cold holding temperatures, and fast temperature recovery
• Evaporator is coated in epoxy to resist corrosion
• Condenser, compressor, and evaporator maintain even temperatures

Dimensions & Utilities

• Shelves: 34³⁄₈ in. W x 17⁷⁄₈ in. D
• Overall: 39¹⁄₂ in. W x 25⁷⁄₈ in. D x 54¹⁄₈ in. H
• 4.1 A, ¹⁄₃ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Documents:

• Spec Sheet
