Description

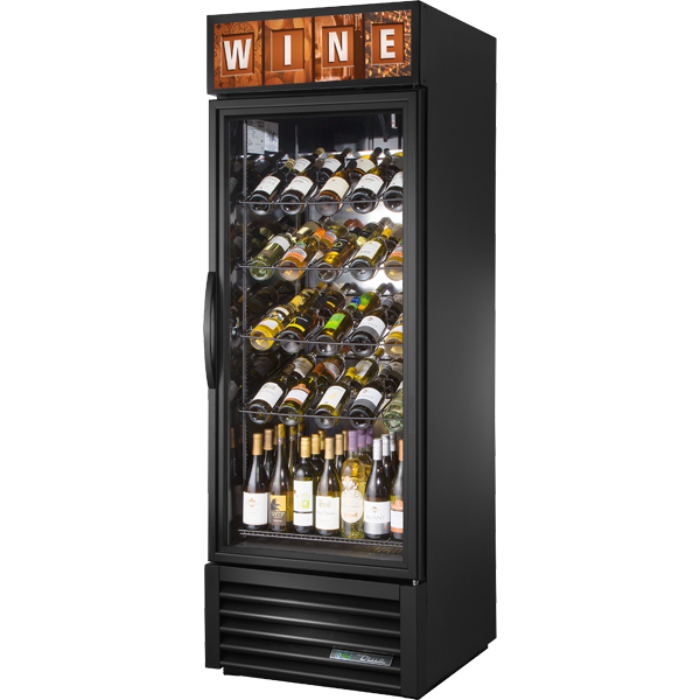

This True GDM-23W-HC~TSL01 refrigerated wine cooler has one section of cold storage that includes four adjustable wine racks and one adjustable wine shelf. Its double-pane glass door provides product visibility and is thermal insulated to keep cold air inside. To save energy, the door is self-closing, and a door lock by the 12-inch-long handle prevents theft. A magnetic gasket snaps into the frame and can be removed without tools. This wine cooler has a self-contained refrigeration system that maintains temperatures from 33 to 38 degrees Fahrenheit and a capillary tube system that controls the flow of R290 hydrocarbon refrigerant. Its bottom-mounted condenser supports quick maintenance access and raises merchandise to a comfortable height. Ensuring that the unit is not susceptible to corrosion, its evaporator is coated with epoxy. To efficiently move air, this cooler has an electronically commutated condenser and evaporator fan motors. The True GDM-23W-HC~TSL01 refrigerated wine merchandiser has a white laminated vinyl exterior that will not chip and peel. Its interior sides and top are made of black aluminum, and its floor is stainless steel. To enhance product presentation and keep wine chilled, it has a mirrored back wall and is foamed with polyurethane insulation. LED lighting illuminates the interior while an exterior sign panel lights up to attract customers.
Product Details
- White laminated vinyl exterior resists peeling and chipping
- Interior sides and top are made of black aluminum
- Stainless steel floor with a mirrored back wall
- Cabinet is foamed in place with polyurethane insulation
- Includes 4 wine racks and 1 wine shelf for adjustable display options
- LED interior lighting and exterior signage attract customers
- Built-in floor drain facilitates cleaning
- cULus listed; ENERGY STAR certified
- Made with innovation in the U.S.
Self-closing Swinging Door
- Made of low-e, double-pane glass that is thermal insulated
- Closes on its own to keep cold air inside
- 12-in. long extruded handle creates a sturdy grip
- Lock prevents theft
- Removable magnetic gasket snaps into the door frame
Refrigeration System
- Temperature range: 33-38 degrees F
- Self-contained system uses a capillary tube and R290 hydrocarbon refrigerant
- Electronically commutated motors provide high performance and consistency
- Bottom-mounted condensing unit enables quick maintenance
- Epoxy-coated evaporator resists corrosion
Dimensions & Utilities
- Racks: 229⁄16 in. L x 211⁄8 in. D
- Shelf: 229⁄16 in. L x 231⁄4 in. D
- Overall: 27 in. W x 311⁄2 in. D x 785⁄8 in. H
- 5.4 A, 1⁄3 HP
- 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug
| Bottle Capacity | 106 |
| Color | White |
| Compressor Location | Bottom |
| Cubic Feet | 36.7 |
| Depth (in) | 29.88 |
| Door Type | Glass |
| Height (in) | 78.63 |
| Hertz | 60 |
| Phase | 1 |
| Product Type | Commercial Refrigeration |
| Sections | 1 |
| Special Features | LED Lighting |
| Temperature | One Zone |
| Voltage | 115 |
| Warranty | 3 year parts & labor; 7 year compressor |
| Width (in) | 27 |
| Product | Wine Coolers |
| Type | Freestanding |
| Series | GDM Series |
| Weight | 310.00 |
