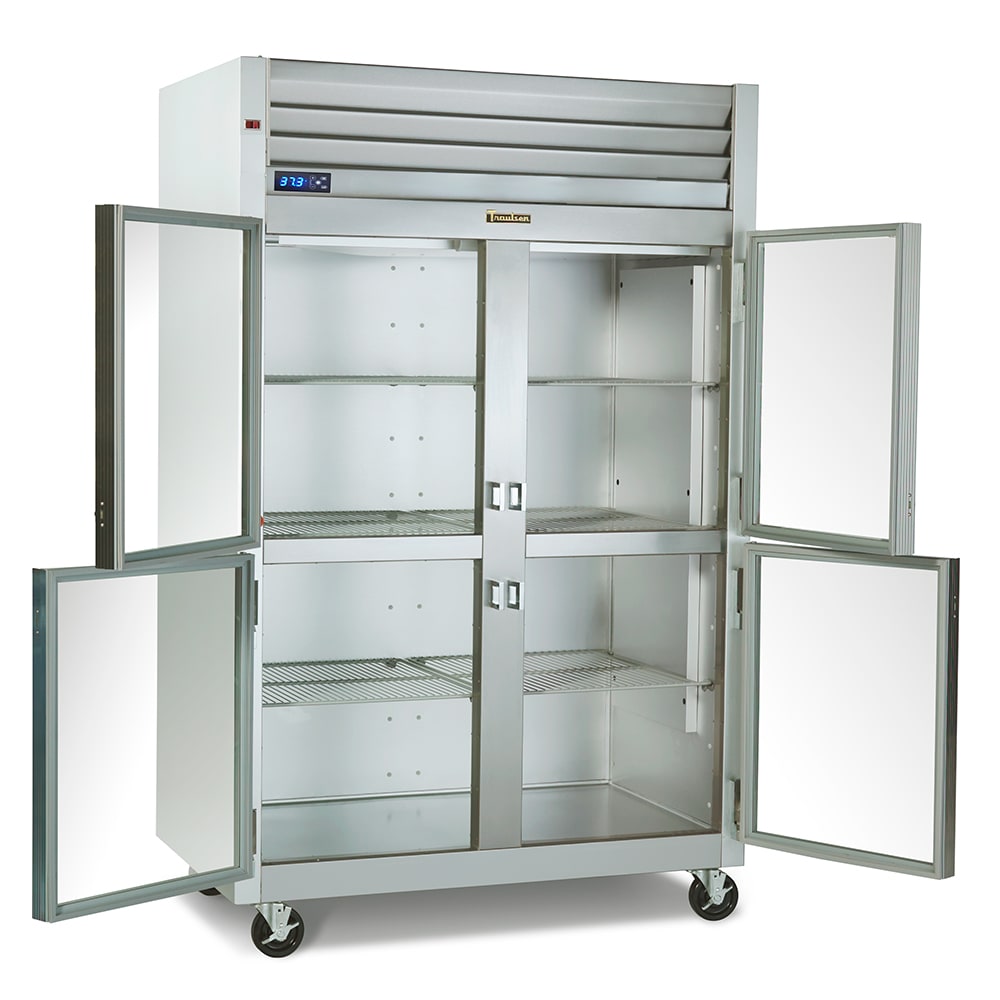

Traulsen G21004P 52″ Two Section Pass Thru Refrigerator, (4) Left/Right Hinge Glass Doors, 115v

Made completely of anodized aluminum and stainless steel, the Traulsen G21004P two-section pass-thru refrigerator resists scratches, dents, and corrosion. The cabinet comes with six shelves made of epoxy-coated steel; their wire design encourages even airflow around all product. Half-height doors on the front and back create a pass-thru design, which improves workflow between two sections of a kitchen. All the doors self-close to retain cold air and have a stay-open design at 120 degrees. Insulation in the unit is foamed in place, improving structural strength and cold-air retention.

The refrigeration system in this Traulsen G21004P two-section refrigerator is mounted on top. With this placement, the condenser operates away from dirt and dust on the floor, but it can be harder to access than bottom-mounted alternatives. Because the condenser faces the front, operators can reach it for cleaning without having to move the unit. A thermostatic expansion valve is used to meter refrigerant to the evaporator and help maintain the set temperature; this unit uses R-450A refrigerant-a non-flammable alternative to R-290 refrigerant.

Product Details

• 49.84-cu.-ft. interior space
• 6 epoxy-coated steel wire shelves
• Load-Sure Guard creates a barrier between stored items and the walls to encourage airflow
• Interior LED lighting provides product visibility
• Anodized aluminum interior
• Anodized aluminum exterior sides
• Stainless steel exterior front
• 2-in.-thick polyurethane insulation is foamed in place in the cabinet for additional strength
• 4 locking 6-in. casters
• 4,610 BTU
• Requires 12-in. top clearance

Pass-thru Door Design

• Front and rear half-height glass doors
• Left hinged on the left and right hinged on the right
• Self-closing to reduce the amount of escaping cold air
• Stay open at 120 degrees for convenient stocking and cleaning
• Long-lasting EZ Clean gaskets
• Metal handles

Refrigeration System

• Microprocessor temperature controller
• 3-digit LED display for temperature readouts in Fahrenheit or Celsius
• Temperature holding range: 34-38 degrees F
• Uses non-flammable R-450A refrigerant
• Thermostatic expansion valve accurately meters refrigerant to the evaporator to maintain the set temperature
• Top-mounted condenser
• High-humidity evaporator is outside the food zone, saving space in the cabinet for product
• Front-facing condenser coil for convenient component access

Dimensions & Utilities

• 52¹/₈ in. W x 37¹⁵/₁₆ in. D x 83⁷/₁₆ in. H
• 9.6 A, 5.63 kW, ⁵/₈ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Dealer’s Choice Display Refrigerator, Pass-thru, two-section, 49.84 cu. ft., top mounted self-contained refrigeration, control side: (4) half-height glass doors (left/right hinged), other side: (4) half-height glass doors (left/right hinged), (3) epoxy coated shelves per section (factory installed), microprocessor control with LED display, LED interior lights, stainless steel doors and louver rail, anodized aluminum sides & interior, 6″ high casters, non-flammable R-450A refrigerant, 5/8 HP, cETLus, NSF

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
