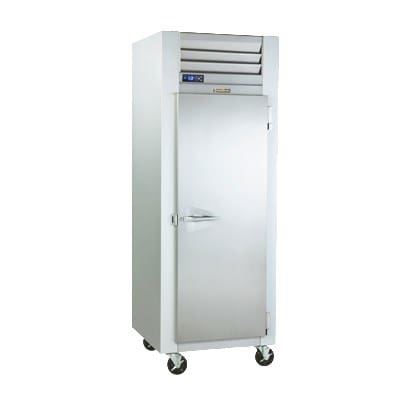

Traulsen G10014P 29 7/8 One Section Pass Thru Refrigerator, (1) Right Hinge Solid Door, 115v

The temperature in the Traulsen G10014P one-section pass-thru refrigerator ranges from 34 to 38 degrees Fahrenheit, as operators use the microprocessor controller to adjust the level. On the digital display, operators can check this level in Fahrenheit or Celsius, and R-450A refrigerant removes heat from the cabinet. It is metered by a thermostatic expansion valve based on the cabinet conditions.

In the Traulsen G10014P pass-thru refrigerator, three wire shelves hold the stored items, encouraging even airflow while the epoxy coating resists corrosion. A Load-Sure Guard in the cabinet prevents operators from storing product against the wall and disrupting flowing air. The interior and exterior sides are made of anodized aluminum, while the exterior front is made of stainless steel. This refrigerator has a door on both the front and rear, creating a pass-thru design that can connect the kitchen with the serving area. Solid and made of stainless steel, these doors retain air better than glass doors, though they do not provide interior visibility.

Product Details

• 24.85-cu.-ft. interior space
• 3 epoxy-coated steel wire shelves
• Interior Load-Sure Guard prevents users from storing product close to the walls, ensuring a consistent and uniform air pattern
• LED interior lights provide product visibility
• Foamed-in-place, 2-in.-thick high-density polyurethane insulation retains cold air
• Anodized aluminum interior
• Stainless steel exterior front has anodized aluminum sides
• 6-in. locking casters
• 1,650 BTU
• Part of the G series

Self-contained Refrigeration System

• Temperature holding range: 34-38 degrees F
• Microprocessor control system
• 3-digit LED temperature reader can be set to display in Fahrenheit or Celsius
• Uses R-450A refrigerant
• Efficient thermostatic expansion valve meters refrigerant to the evaporator coil based on interior temperature
• Top-mounted components are kept away from dust and dirt on the floor
• Removable, 1-piece louver for component access
• Condenser coil is front facing and cleanable

Pass-thru Door Design

• Left-hinged stainless steel front and rear doors
• Self-closing feature prevents doors from standing open
• Doors stay open at 120 degrees for convenient product stocking
• Long-lasting EZ Clean door gaskets
• Heaters behind the door openings reduce condensate buildup

Dimensions & Utilities

• 29⁷/₈ in. W x 38⁷/₈ in. D x 83⁷/₁₆ in. H
• 4.9 A, 2.47 kW, ¹/₅ HP
• 115 V/60 Hz/1 ph, 9-ft. cord with a NEMA 5-15P plug

Dealer’s Choice Refrigerator, Pass-thru, one-section, 24.85 cu. ft., self-contained refrigeration, control side: (1) full-height solid door (left hinged), other side: (1) full-height solid door (left hinged), (3) epoxy coated shelves (factory installed), microprocessor control with LED display, LED interior lights, stainless steel doors and louver rail, anodized aluminum sides & interior, 6″ high casters, non-flammable R-450A refrigerant, 1/5 HP, cETLus, NSF

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
