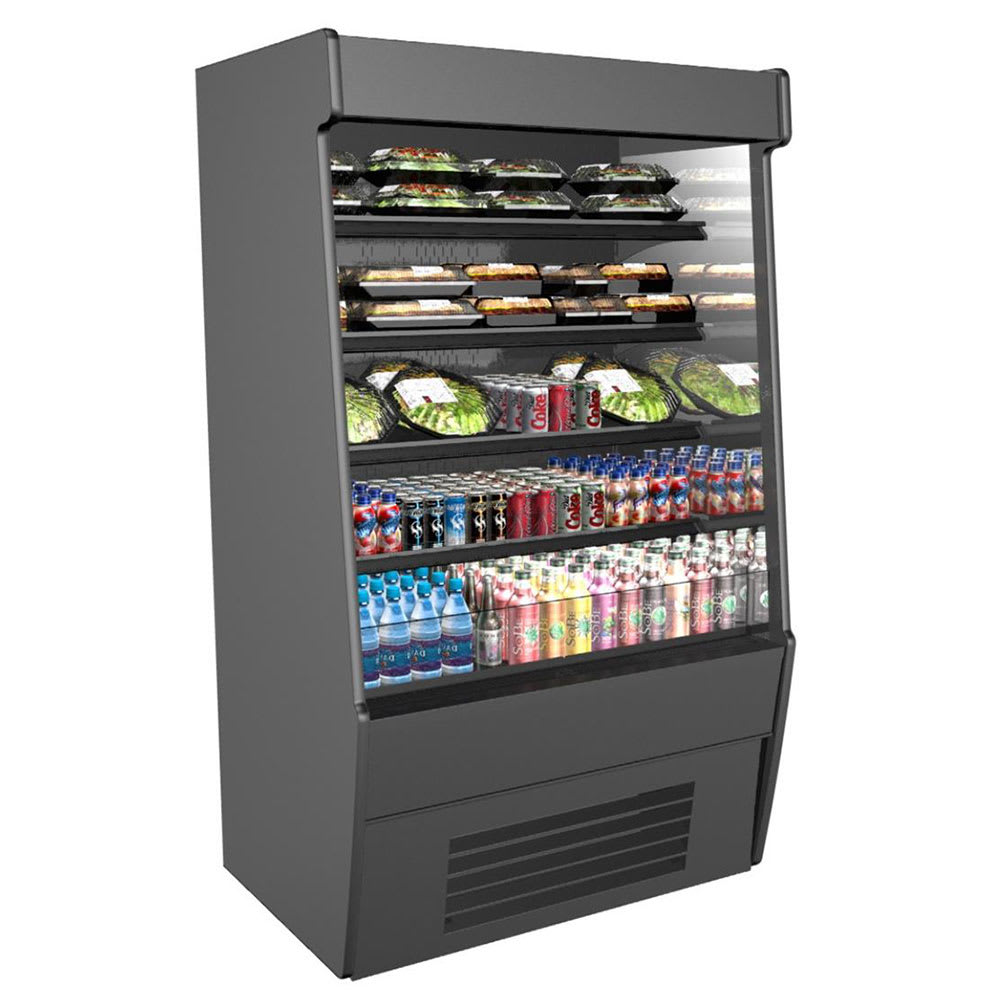

Structural Concepts CO67R-E3 71 1/4″ Vertical Open Air Cooler w/ (5) Levels, 208 240v/1ph

The Structural Concepts CO67R-E3 refrigerated self-service case is ideal for airport shops, convenience stores, and other quick service establishments where customers want to be able to grab product quickly. Since this unit does not have a door, customers are more likely to pick product from this unit, promoting impulse buys. An air curtain is used to maintain cool temperatures, usually 40 degrees Fahrenheit or less. A 4-inch, removable rear wall spacer prevents product from blocking the flow of air.

The interior and exterior of the unit come in black to blend into almost any theme, and product stands out against the neutral color. The interior end panels are mirrored so the focus stays on the product. The shelves are adjustable in 1-inch increments so various sizes of products can be accommodated. The Structural Concepts CO67R-E3 vertical open air cooler has a self-contained refrigeration system that is easy to service since all the components are built together.

Product Details

• 4-in. removable rear wall spacer keeps products from blocking air flow
• Compressor takes in air at the front and discharges at the rear
• EnergyWide self-contained refrigeration system is easy to service since all components are built together
• Condensate pan collects water from when the evaporator is defrosted
• LED lights provide visibility of products
• Deck pans are removable so the evaporator coil and refrigeration connections are fully accessible
• Shelves are adjustable in 1-in. increments and removable for cleaning
• Black interior and exterior fits into virtually any theme
• End panels have interior mirror to put focus on products
• 208-240 V/60 Hz/1 ph, 16 A, 3187 W, 6-ft. power cord with a NEMA 6-20 plug
• Overall Dimensions: 71¹/₄ in. L x 33 in. W x 79³/₄ in. H

Installation Requirements

• Front panel must have 4 in. clearance from the wall
• End panels must be tightly put together or at least 6 in. away from any structure to prevent condensation
• Do not install near exterior doors, overhead HVAC vents, or other disruptions
• Do not install in direct sunlight or near heat sources such as ovens and fryers
• Must have at least 8 in. of clearance above for air discharge

Express 3 Oasis Self-Service Refrigerated Open Air Screen Case, 71-1/4″W, 79-3/4″H, Breeze-E (Type II) with EnergyWise self-contained refrigeration system, (4) lighted removable & adjustable metal shelves, black interior & exterior, (2) full end panels, flat front, casters, cETLus, ETL-Sanitation

Note: Nominal cubic footage measurements sometimes provided by refrigeration manufacturers may not indicate actual usable space. If you require a specific capacity, please call one of our customer care representatives to ensure the unit you order meets your needs.
