Description

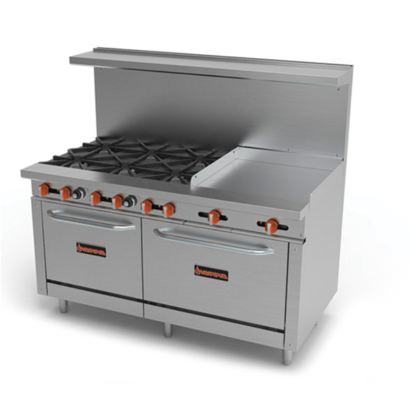

The Sierra Range features an all-stainless steel interior and exterior construction, in addition to the porcelain oven decks and oven door liners which allow for the easiest clean-ups. This range features a 24” griddle section with 39,000 BTU of cooking power. It includes 30,000 BTU heavy duty cast iron top burners and two 32,000 BTU ovens, each accepting 18″ by 26″ sheet pans. The two independent ovens feature “U” type burners and temperatures are adjustable from 250°F (121°C) to 550°F (288°C).
Warranty: 12 months parts & labor. See Sierra Range Price List for full details.
Gas Connection: 3/4” NPT on the right hand rear of the appliance. The pressure regulator (supplied) is to be connected here by the installer.
Gas pressure: 5” W.C. – Natural Gas | 10” W.C. – Propane
Combustible Clearances: For use in non-combustible locations | Non-combustible Clearances: 0 inches sides, 0 inches rear
Specify type of gas and altitude, if over 2,000 feet, when ordering.
| MODEL NUMBER | SR-6B-24G-60 |
| EXTERNAL DIMENSIONS WxDxH | 60” X 32.4” X 56.4” |
| OVEN DIMENSIONS (LEFT) WxDxH | 19.2” X 26.4” X 14.2” |
| OVEN DIMENSIONS (RIGHT) WxDxH | 26.6” X 22.8” X 14.2” |
| NUMBER OF BURNERS | 6 OPEN BURNERS 1 “U” BURNER PER OVEN 2 “U” BURNERS FOR GRIDDLE |
| BTU (EACH TOP BURNERS) | 30,000 |
| BTU (GRIDDLE/BROILER) | 39,000 |
| BTU (OVEN) | 32,000 |
| TOTAL BTU | 283,000 |
| NET WEIGHT | 672 LBS |
| SHIPPING WEIGHT | 772 LBS |
