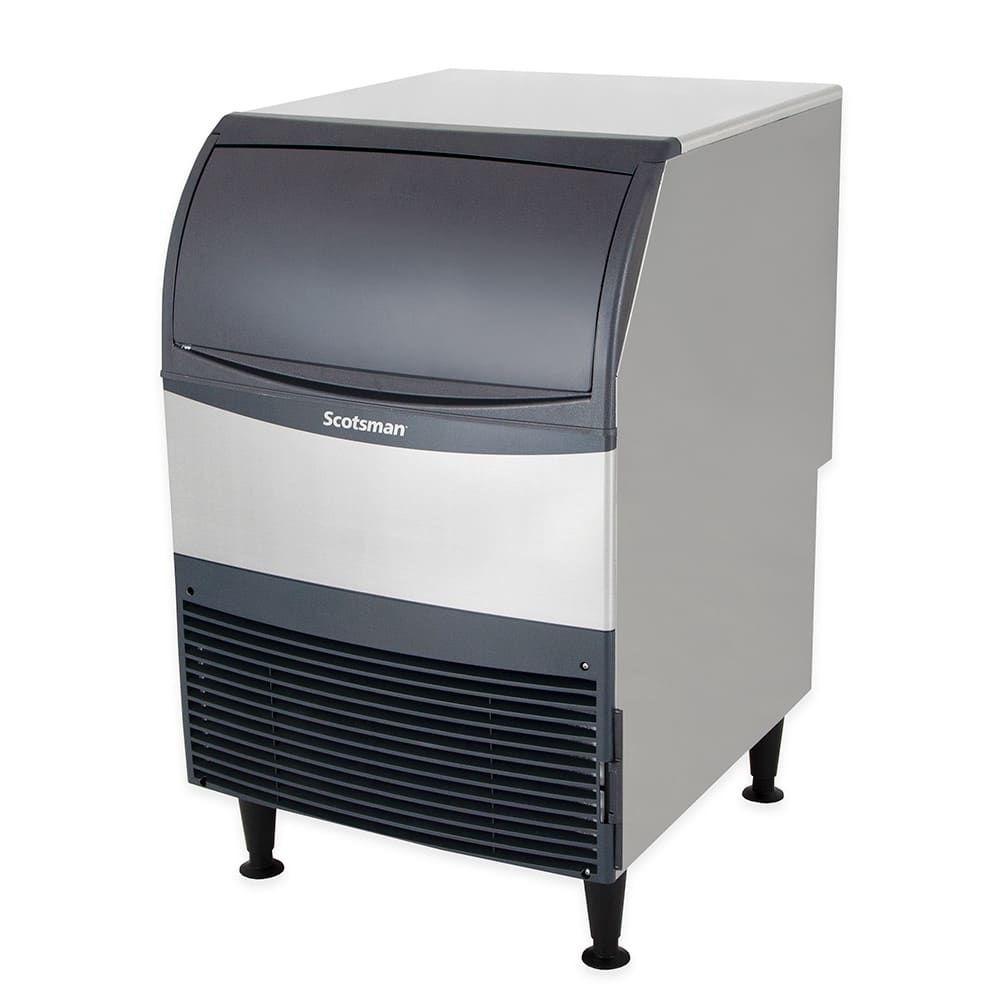

Scotsman UN324W-1 28 1/2″W Nugget Undercounter Ice Maker – 340 lbs/day, Water Cooled

Made of durable stainless steel, the Scotsman UN324W-1 undercounter ice maker is suitable for use in high-volume commercial foodservice operations. This unit resists corrosion, dents, and scratches, and it’s easy to clean, which lowers labor requirements while streamlining workflow. The ice maker’s self-contained condenser facilitates installation, and its slide-back bin enhances ice access. Because this unit is designed with a gravity drain, it’s optimal for kitchens equipped with a location that accepts water runoff. The ice maker measures 24 inches wide by 28.5 inches deep by 39 inches tall overall.

The Scotsman UN324W-1 commercial undercounter ice maker produces as much as 340 pounds of nugget ice in 24 hours under ambient conditions-a soft and chewable ice optimal for blended beverages, such as smoothies and margaritas. This compact unit can store as much as 80 pounds of ice. Its 6-inch legs can be adjusted to level the ice maker on uneven floors, and for facilitated maintenance, this unit comes with a QR code that gives operators access to warranty history and service manuals. With its water-cooled configuration, the ice maker cools itself by pumping cool water near the condenser coils.

Product Details

• 340-lb. maximum daily ice production
• 281-lb. AHRI-certified daily ice production
• 80-lb. maximum ice storage capacity
• Produces soft nugget ice
• Undercounter unit
• Heavy-duty stainless steel construction
• Stainless steel evaporator
• Slide-back bin
• QR code provides access to service manuals

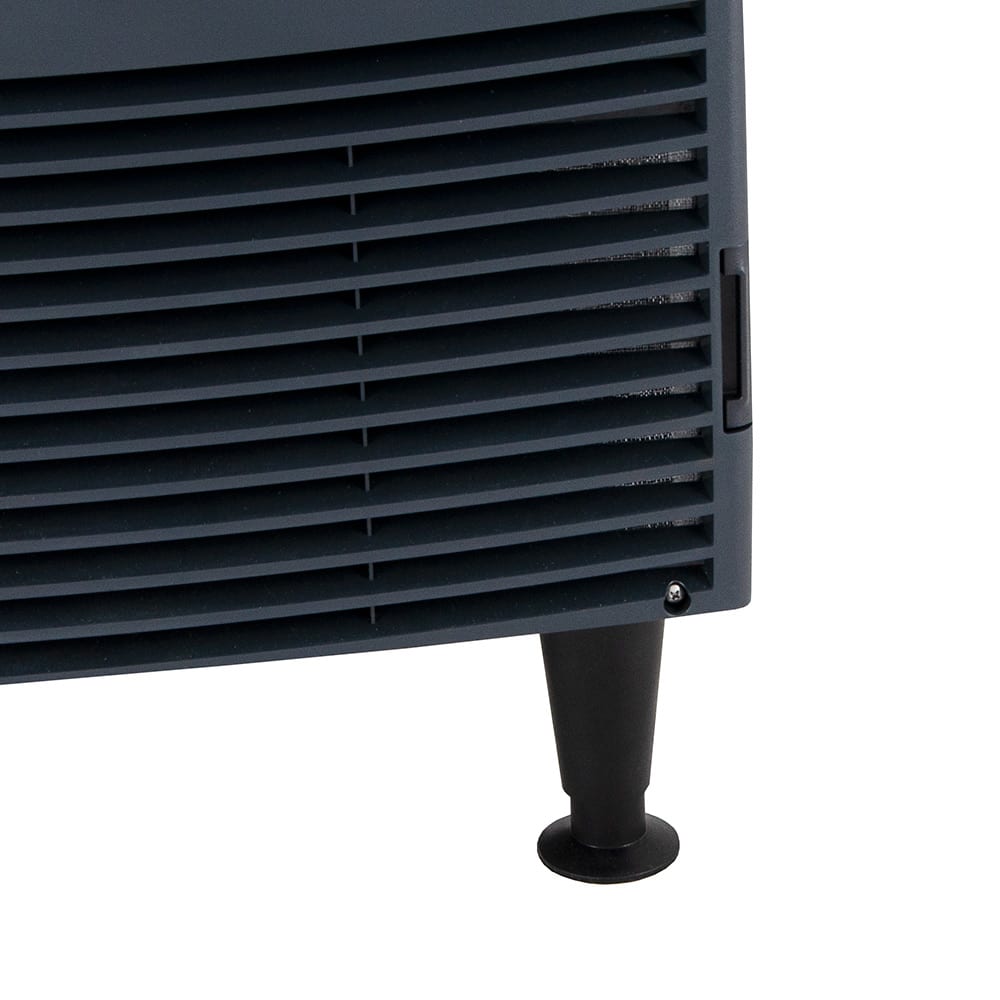

• 6-in. legs enable leveling on uneven floors
• Water cooled
• Self-contained condenser facilitates maintenance
• R-134A refrigerant
• Ideal incoming water pressure: 10-80 PSIG
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming air temperature: 50-100 degrees F
• 3,000-BTU heat transfer capacity

Dimensions & Utilities

• 24 in. W x 28.5 in. D x 39 in. H
• 4.55 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

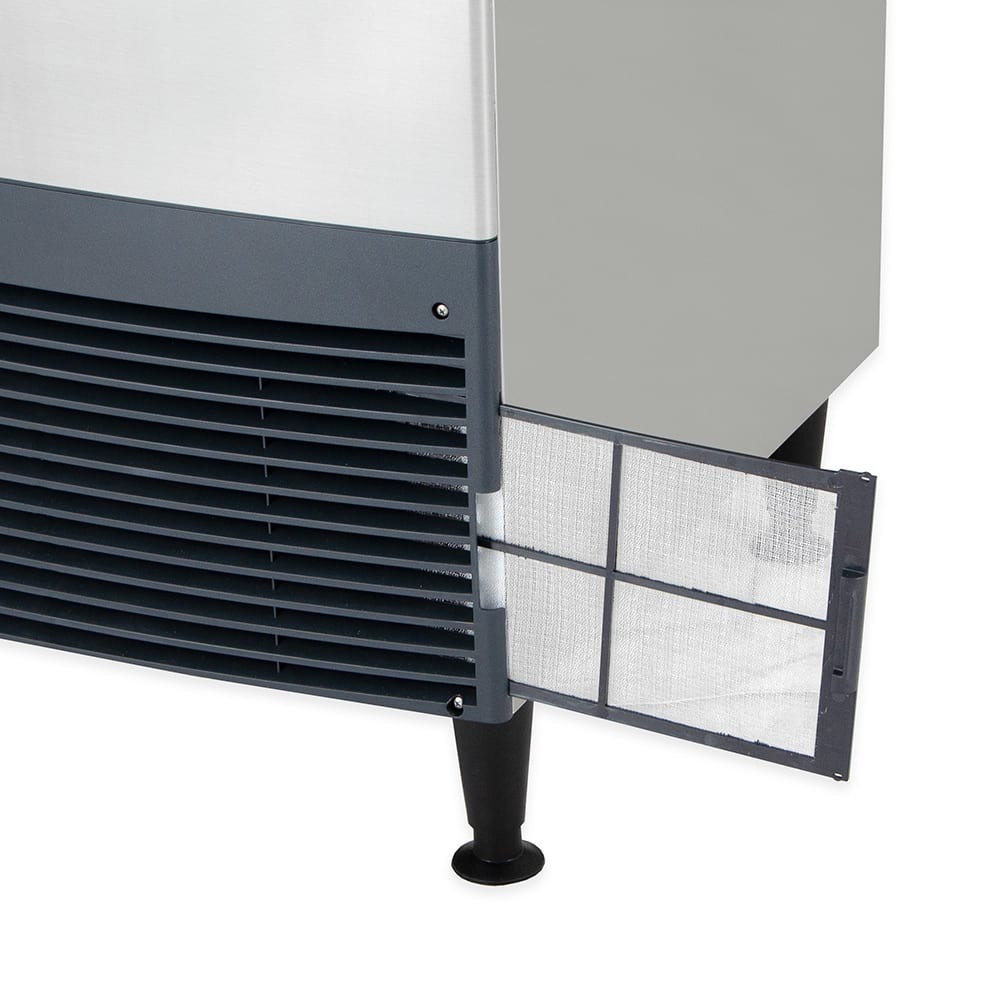

Ice Maker with Bin, Nugget Style, water cooled, self contained condenser, production capacity up to 340 lb production/24 hours at 70°/50° (281 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, stainless steel evaporator, external air filter, sealed bearings, ice scoop, includes 6″ legs, 115v/60/1-ph, cULus, NSF

*Image may not depict product color, inclusions or accessories.
