Description

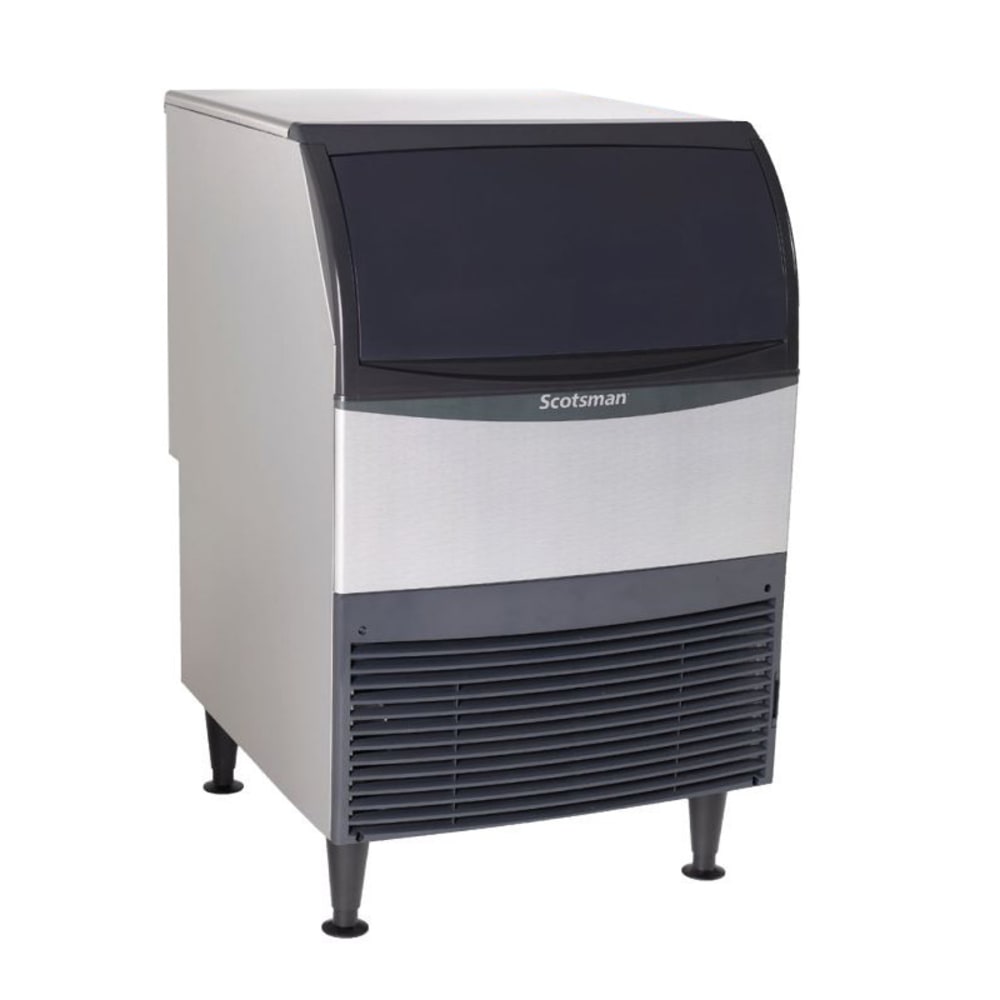

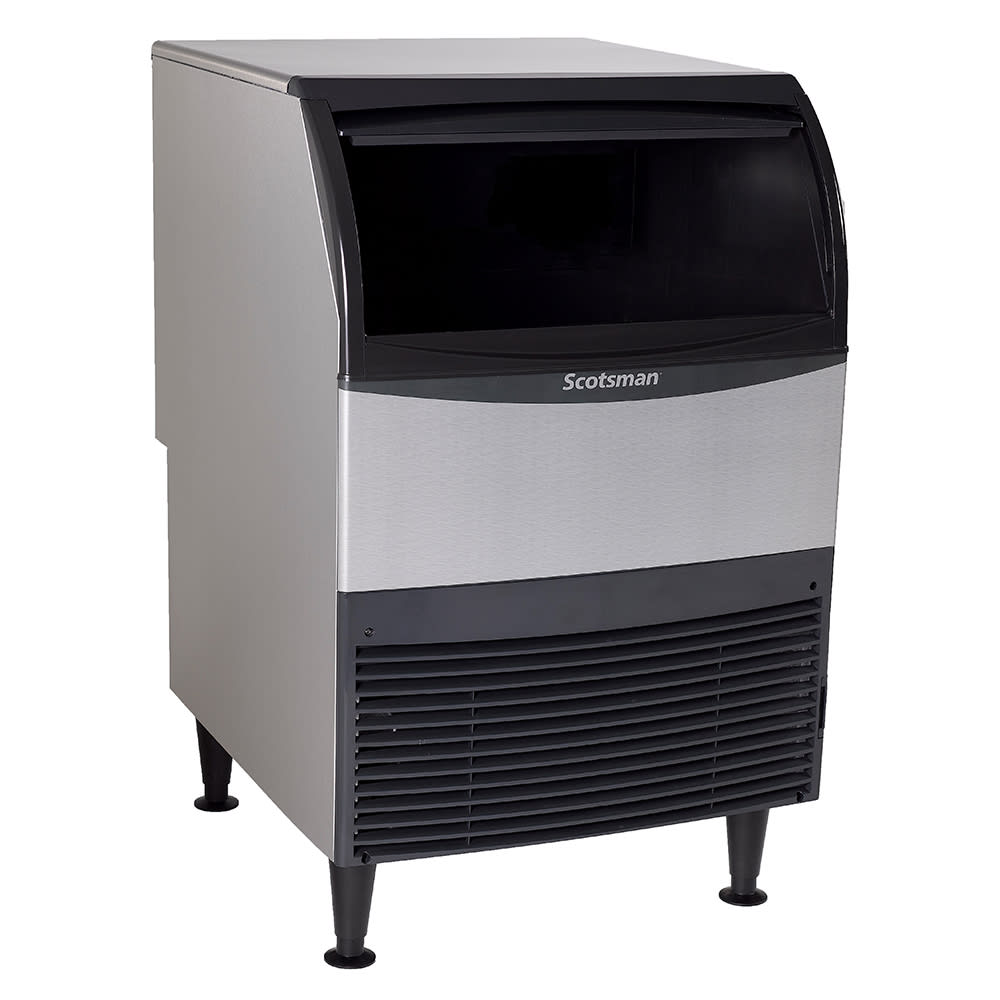

Scotsman UC2024SW-1

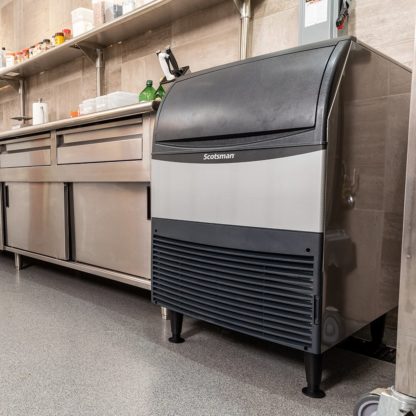

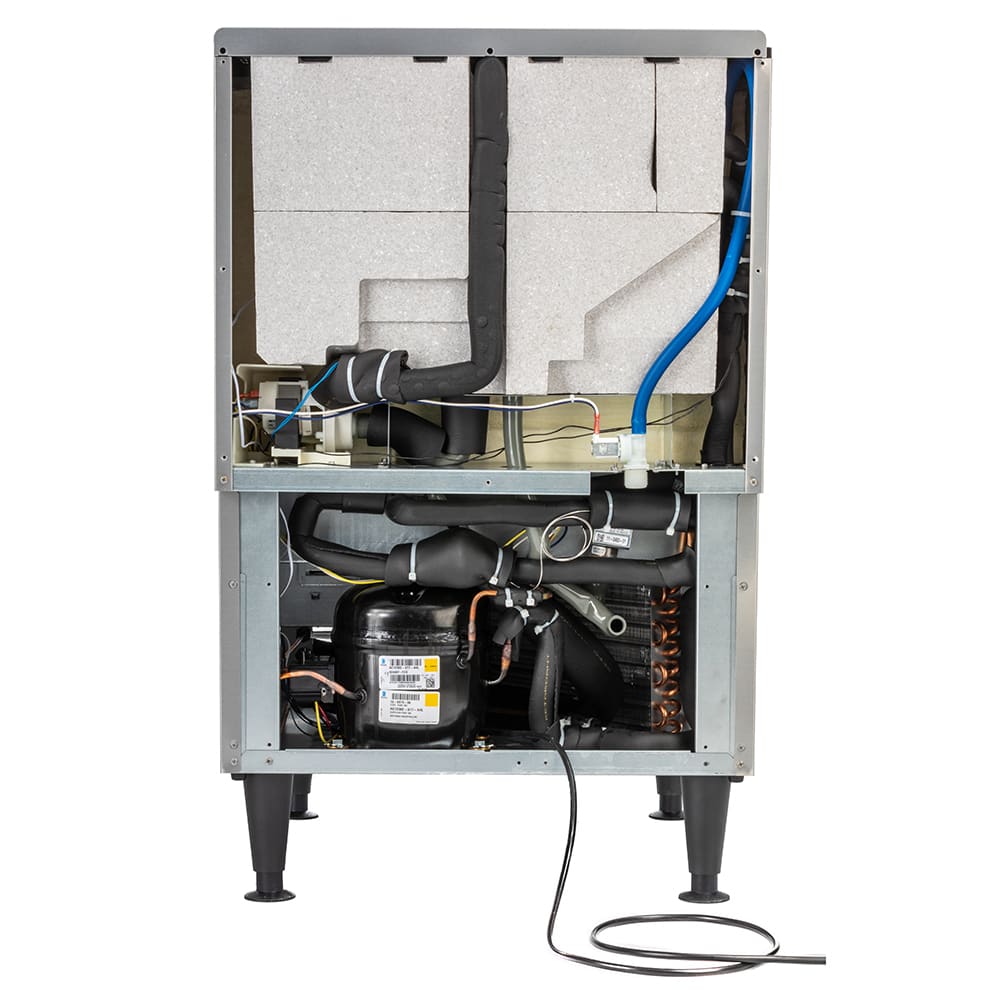

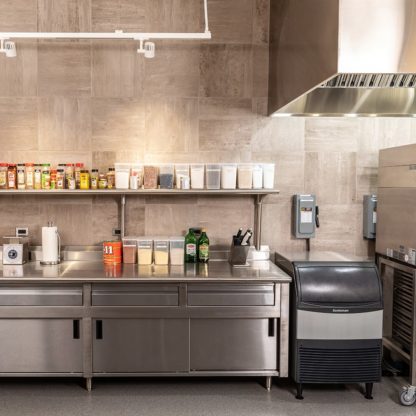

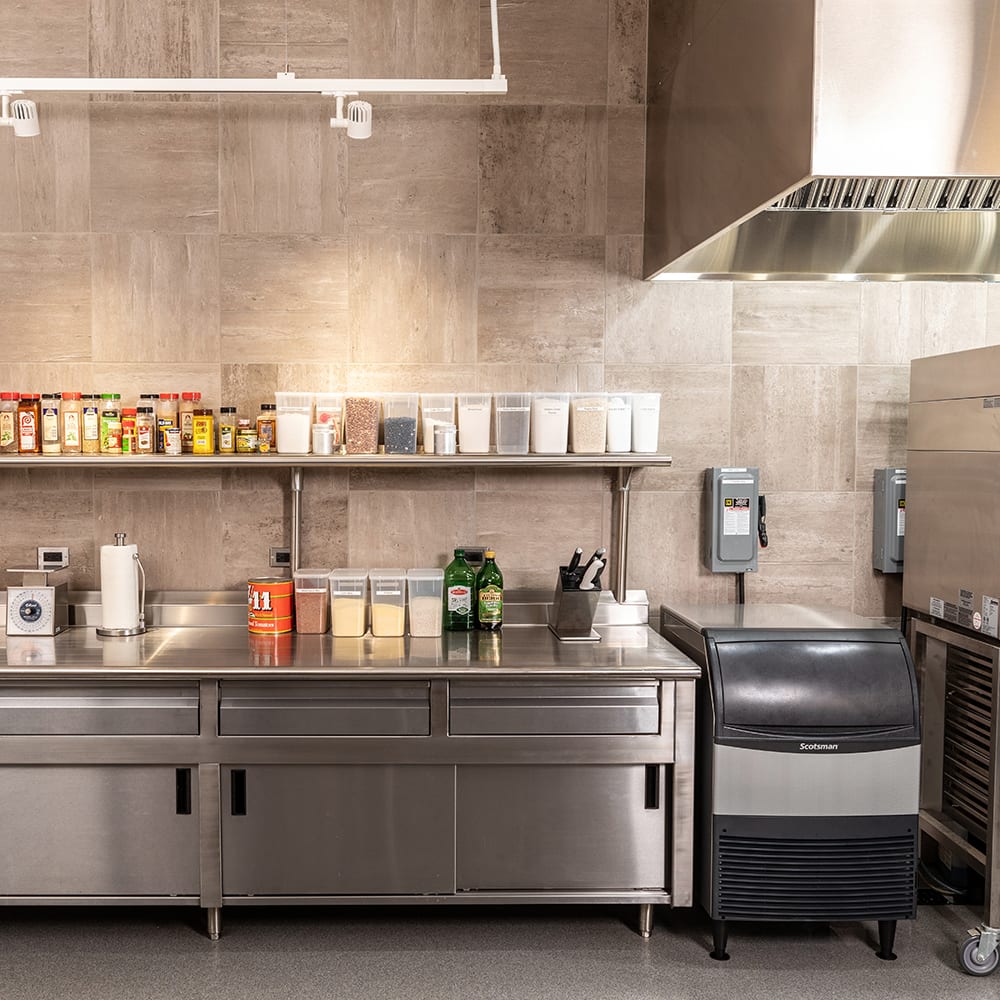

The condenser of the Scotsman UC2024SW-1 undercounter ice maker is self-contained to ensure it’s simple to install and maintain. It is cooled with water and uses R-134A refrigerant. Its front-breathing design doesn’t require side clearance to operate, so it can be installed in tight spaces.

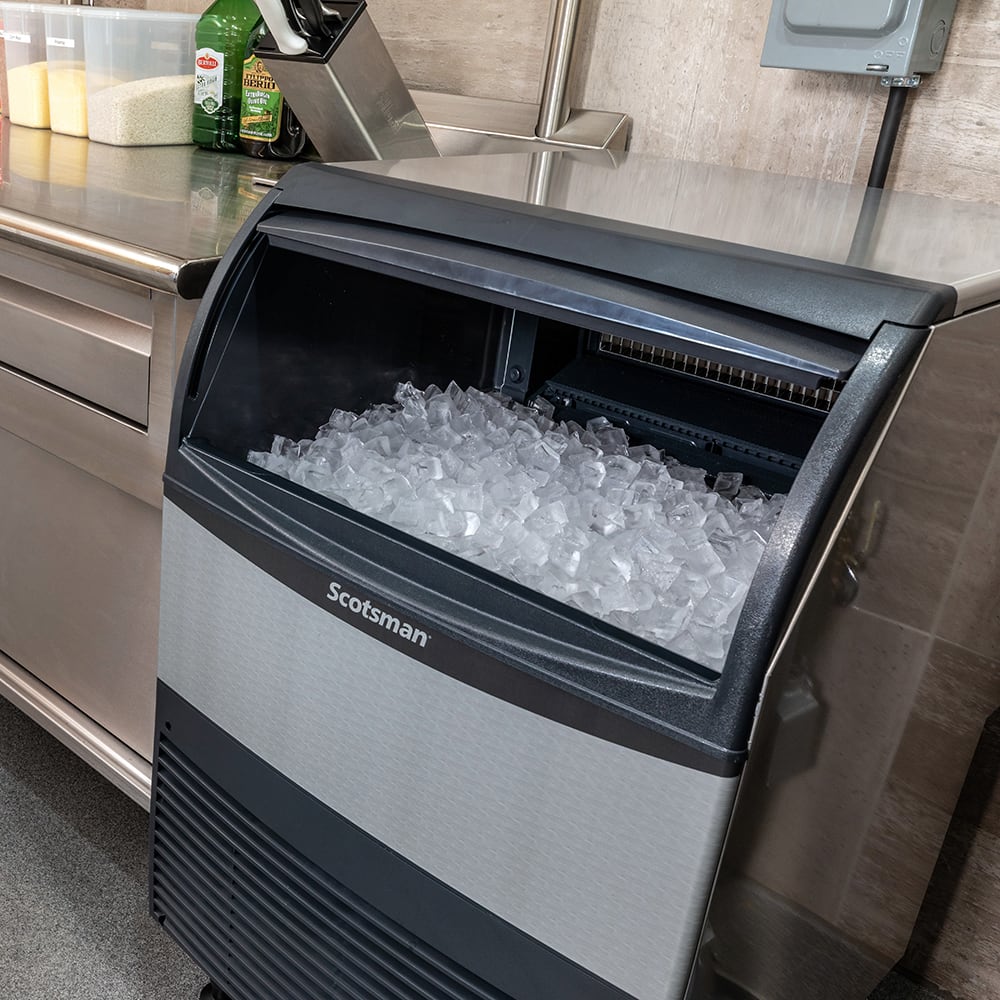

The Scotsman UC2024SW-1 undercounter ice maker produces as much as 230 pounds of small-cube ice in ideal conditions. This versatile style of ice can benefit mixed drinks or smoothies. Users can scoop ice from the bin by opening its slide-back door.
Product Details
- 230-lb. maximum daily ice production
- 188-lb. AHRI-certified daily ice production
- Produces small-cube ice
- Ice size: 7/8 in. L x 7/8 in. W x 3/8 in. H
- Holds 80 lbs. of ice in the storage bin

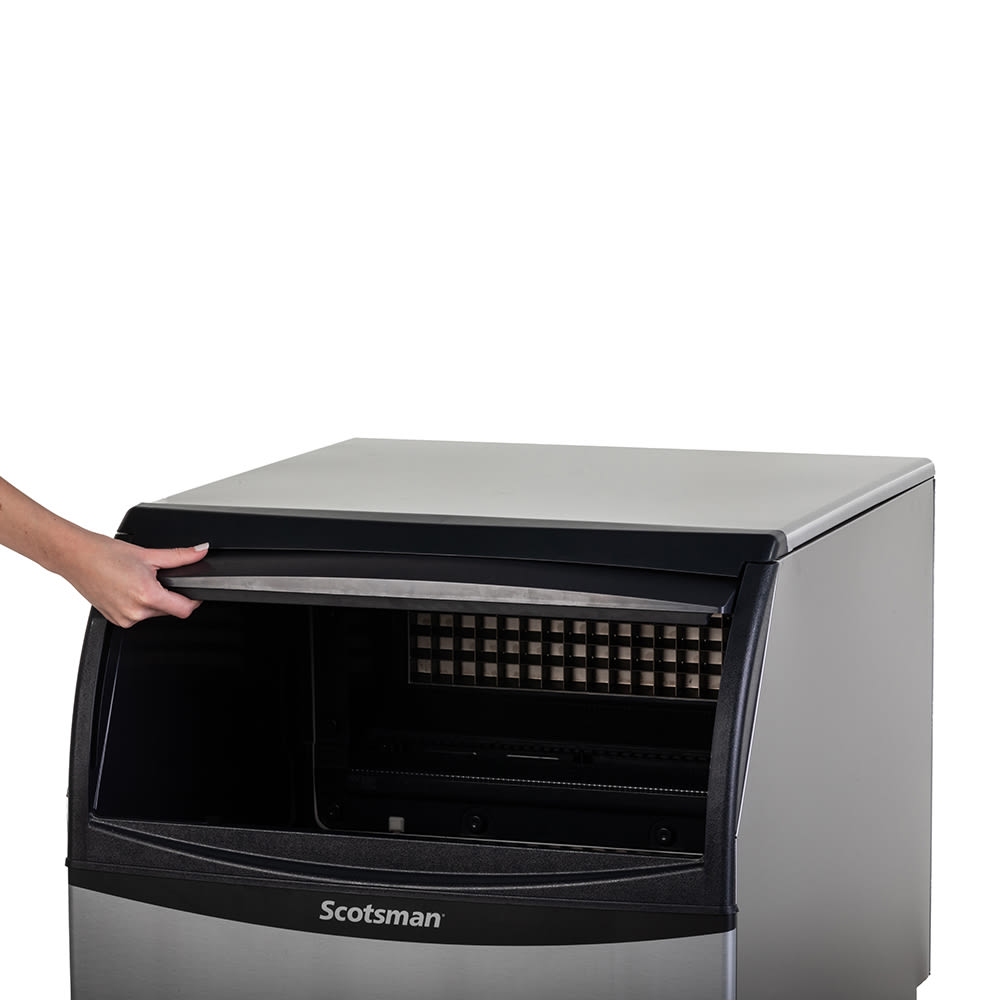

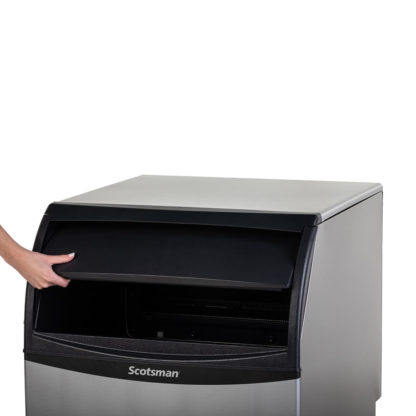

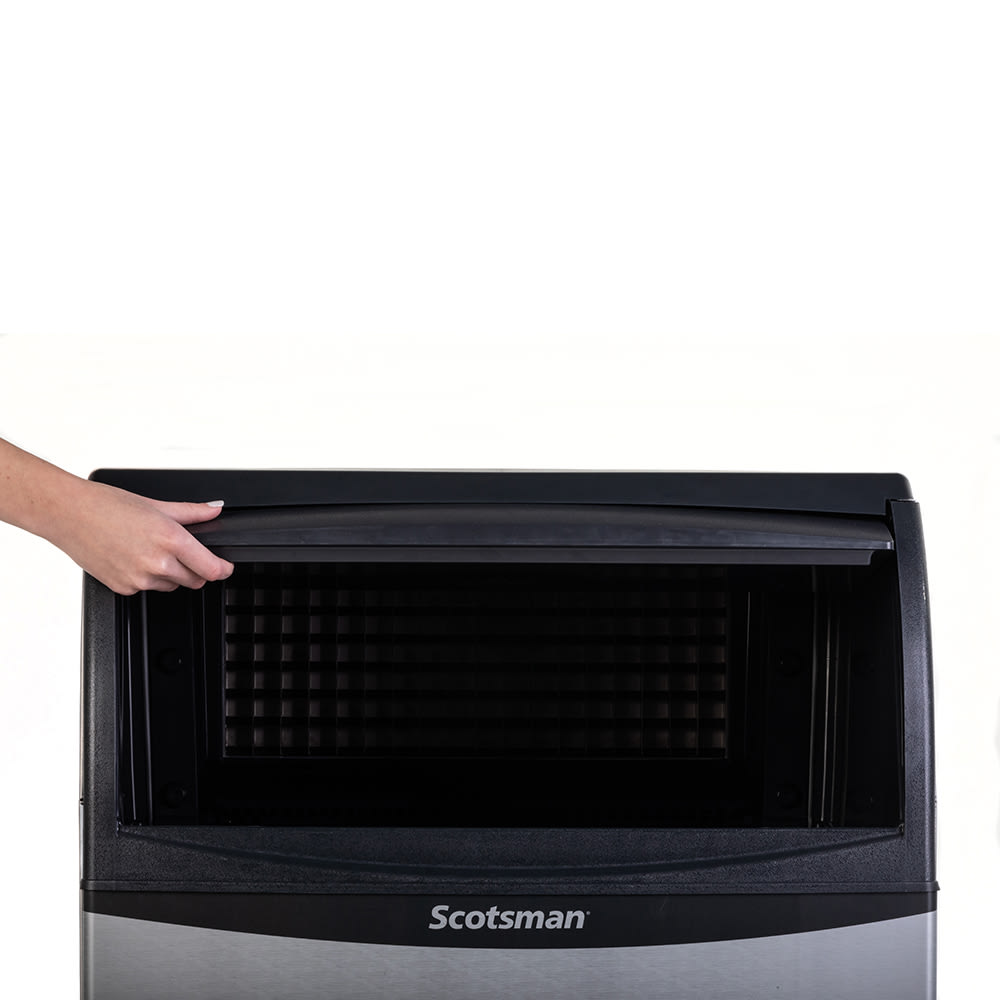

- Bin has an ergonomic slide-back door
- Self-contained condenser is water cooled
- Condenser breathes from the front to remove side clearance requirements
- R-134A refrigerant

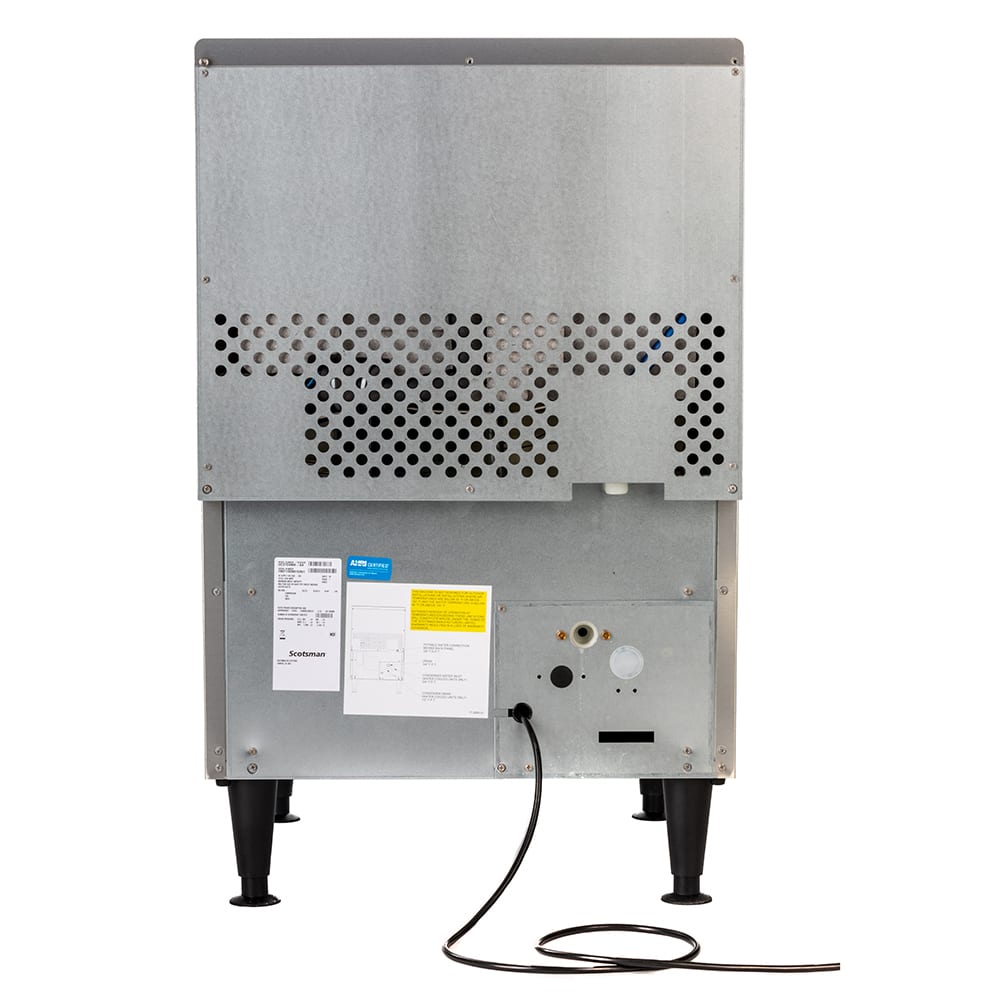

- Recessed utility chase can be installed directly against walls
- Air filter is removable and accessible from the front
- Side panels are made of corrosion-resistant aluminum alloy
- Mounted on 6-in. legs
- Ice scoop is included
- 3,900-BTU heat transfer capacity
Dimensions & Utilities
- 24 in. W x 28.5 in. D x 39 in. H
- 15 A, 4.55 kW
- 115 V/60 Hz/1 ph, cord with NEMA 5-15P plug
From The Manufacturer
Undercounter Ice Maker With Bin, 24″W, cube style, water-cooled, self-contained condenser, production capacity up to 230 lb/24 hours at 70°/50° (188 lb AHRI certified at 90°/70°), 80 lb bin storage capacity, ergonomic slide-back door, recessed utility chase, front accessible external removable air filter, alluminum alloy side panels, small cube size, R-134A refrigerant, includes 6″ legs, 24″W x 28.5″D x 39″H, 115v/60/1-ph, 15 amps, NSF, cULus, Made in USA, AHRI Certified
*Image may not depict product color, inclusions or accessories.
