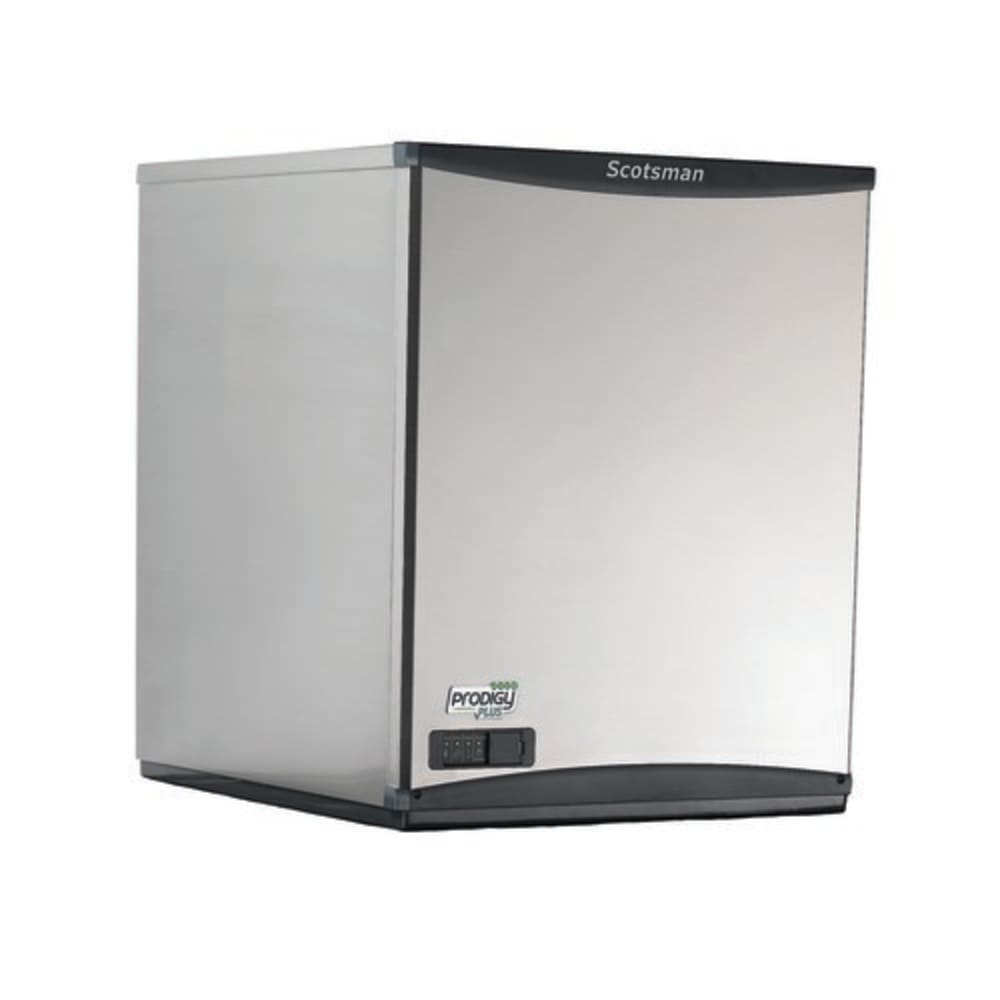

Scotsman NS1322W-3 22″ Prodigy Plus Nugget Ice Machine Head – 1513 lb/24 hr, Water Cooled, 208-230v/3ph

The Scotsman NS1322W-3 Prodigy Plus ice machine head operates with R-404A refrigerant and a simple-to-install, self-contained condenser. It produces chewable nugget ice-a type that’s absorbent and perfect for serving in iced tea and soft drinks. To inhibit germ growth between cleanings, its interior surfaces are treated with AgION antimicrobial protection. Because this unit’s auger and evaporator are made of stainless steel, they’re durable and resistant to corrosion.

To keep up with high-volume demand, the Scotsman NS1322W-3 ice maker produces as much as 1,129 pounds of ice per day in realistic environmental conditions. It features AutoAlert indicator lights that grant operational updates; for further in-depth information, users can scan its unit-specific QR code. To simplify operation, it has sealed, maintenance-free bearings and a one-touch cleaning function. This unit measures 22.7 inches wide by 24 inches deep by 27 inches high, overall.

Product Details

• 1,513-lb. maximum daily ice production
• 1,129-lb. AHRI-certified daily ice production
• Produces nugget-style ice
• Ice nugget dimensions: ⁷/₁₆ in. x ⁵/₁₆ in. x ³/₈ in.
• Evaporator and auger made of heavy-duty stainless steel
• Stainless steel exterior finish
• Unit-specific QR code
• Operational updates provided by AutoAlert indicator lights
• AgION antimicrobial protection on internal surfaces
• 1-touch cleaning simplifies operation
• Water cooled with self-contained condenser
• Sealed, maintenance-free bearings
• Self-aligning front panel offers access to key components
• Air filter located at front
• Ice bin sold separately
• Operates with R-404A refrigerant
• Operating ambient air temperature range: 50-100 degrees F
• Operating incoming water temperature range: 40-100 degrees F
• Incoming water pressure: 20-80 PSI
• 7,200-BTU heat-transfer capacity

Dimensions & Utilities

• 22.7 in. W x 24 in. D x 27 in. H
• 9.9 A
• 208-230 V/60 Hz/3 ph

From The Manufacturer

Prodigy Plus Ice Maker, nugget style, Original Chewable Ice, water-cooled, self-contained condenser, production capacity up to 1513 lb/24 hours at 70°/50° (1129 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 9.9 amps, 208-230v/60/3-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.
