Description
Scotsman NS0922A-32/B530P/KBT27 Description

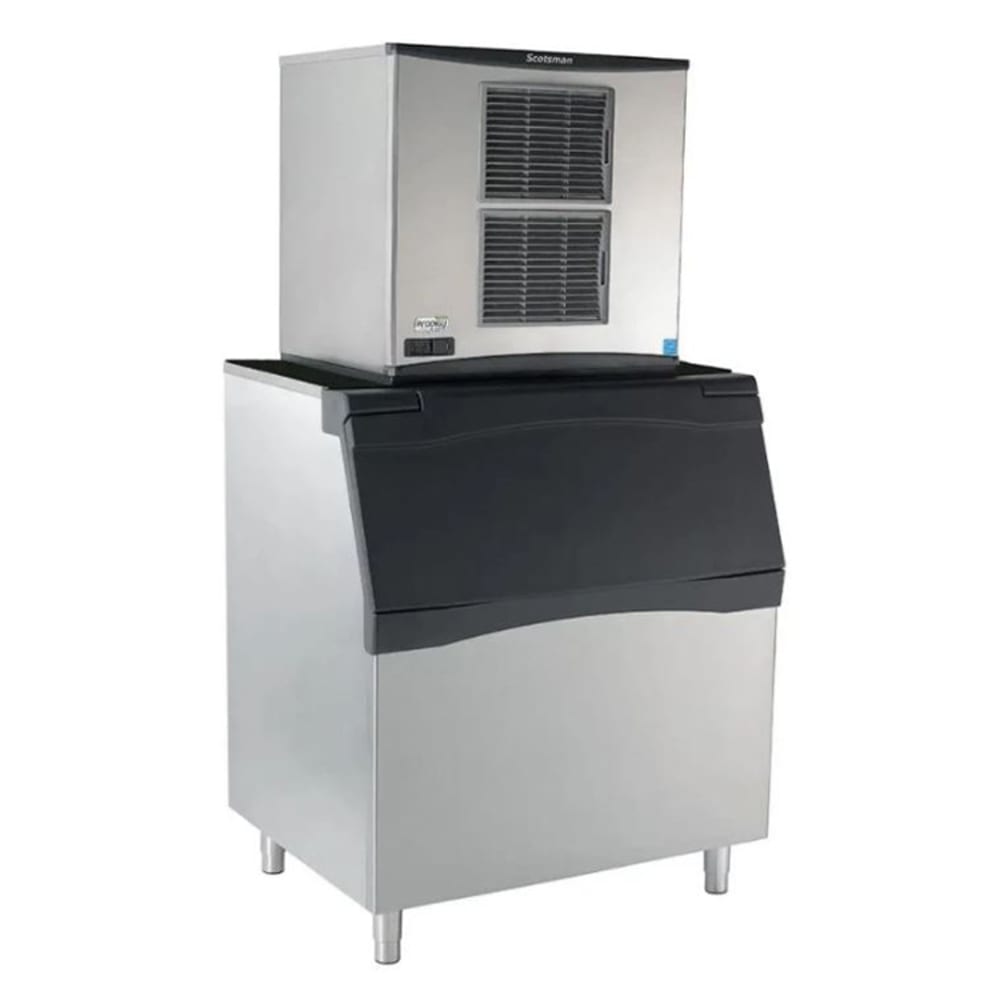

The Scotsman NS0922A-32/B530P/KBT27 nugget ice maker with bin is mounted on 6-inch legs for elevation so employees can sweep beneath it. Its bin is made of durable rotocast plastic and the head has a strong stainless steel finish. To prevent corrosion, the auger and evaporator are made of stainless steel. The bearings are sealed to prevent damage and require no maintenance for use. This unit’s air-cooled, self-contained condenser uses R404A refrigerant to create 784 to 956 pounds of ice daily.
To facilitate cleaning, users of the Scotsman NS0922A-32/B530P/KBT27 ice maker with bin need only push a button. The unit’s AgION antimicrobial slows bacterial growth, ensuring germs don’t spread freely in a commercial area. Providing product whenever it’s needed, the bin accommodates as much as 536 pounds of ice. It comes with a scoop to prevent employees from grabbing ice with their hands, and a built-in holder offers a place to rest the scoop after use.
Ice Machine Details
- Part of the Prodigy Plus series
- 956-lb. maximum daily ice production
- 784-lb. AHRI-certified daily ice production
- Makes Original Chewable Ice
- Ice dimensions: 7/16 in. x 5/16 in. x 3/8 in.
- Refrigeration unit is self-contained and air cooled
- Uses R404A refrigerant
- QR code is specific to the unit to provide warranty information
- Rust-resistant stainless steel auger, evaporator, and finish
- Cleans with a single touch
- AgION antimicrobial agent inhibits microbe formation
- Sealed, maintenance-free bearings
- AutoAlert indicating lights
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 10,500-BTU heat transfer capacity
Ice Bin Details
- 536-lb. application capacity
- Prevents melting with polyurethane insulation
- Constructed of rotocast plastic
- Polyethylene interior liner
- Sanitary ice scoop
- Ice scoop holder
- Front-opening door hinged from the top
- Removable baffle facilitates cleaning
- 6-in. legs provide elevation
- KBT27 bin top kit for ice maker connection
Dimensions & Utilities
- Ice maker: 22.9 in. W x 24 in. D x 27 in. H
- Ice bin: 30 in. W x 34 in. D x 50 in. H
- 11.9 A
- 208-230 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, nugget style, Original Chewable Ice, air-cooled, self-contained condenser, production capacity up to 956 lb/24 hours at 70°/50° (784 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 208-230v/60/1-ph, 11.9 amps, NSF, cULus, ENERGY STAR, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, rotocast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
