Description

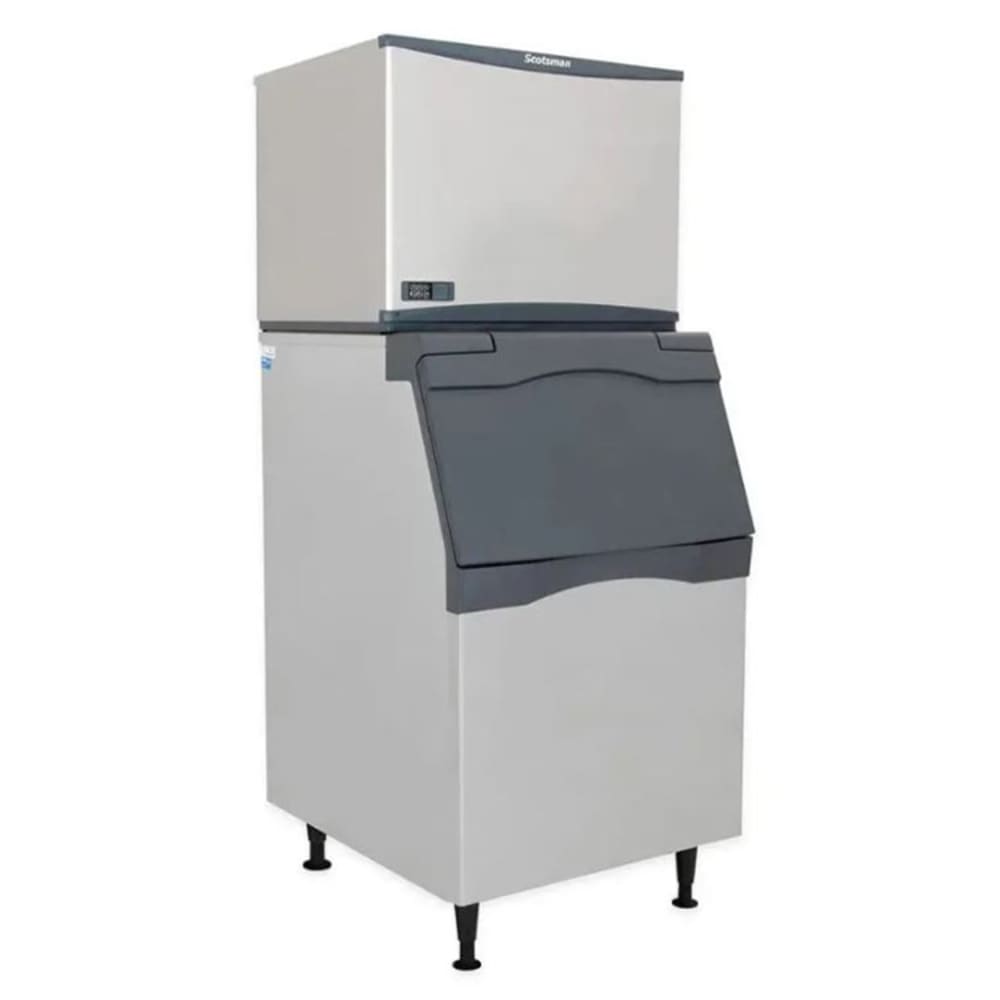

Scotsman NS0622W-1/B530S/KBT27 Description
The Scotsman NS0622W-1/B530S/KBT27 ice maker with bin can be cleaned with a single button press and its bearings need no maintenance for continued use. Ensuring slowed bacterial growth, this unit is protected by AgION antimicrobial. The auger and evaporator are made of stainless steel for rust and corrosion resistance, and the unit’s stainless steel finish provides durability. The condenser is water cooled and self-contained to streamline installation, using R404A refrigerant. It can make anywhere from 581 to 715 pounds of ice depending on operating conditions.
To elevate the Scotsman NS0622W-1/B530S/KBT27 nugget ice machine with bin from the ground, it’s mounted on 6-inch legs. The bin accommodates 536 pounds of ice, which can be accessed by opening the top-hinged door. It comes with a sanitary ice scoop, and when the scoop isn’t being used, it can be stored in the built-in holder. To view key warranty information and operating manuals, users can scan the unit-specific QR code.
Ice Machine Details
- Part of the Prodigy Plus series
- 715-lb. maximum daily ice production
- 581-lb. AHRI-certified daily ice production
- Makes Original Chewable Ice
- Ice dimensions: 7/16 in. x 5/16 in. x 3/8 in.
- Self-contained, water-cooled condenser uses R404A refrigerant
- Push-start cleaning
- AgION antimicrobial slows microbe growth
- Sealed, maintenance-free bearings
- AutoAlert indicating lights
- Unit-specific QR code
- Auger and evaporator made of stainless steel
- Stainless steel finish provides durability
- Ideal incoming air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSIG
- 7,100-BTU heat transfer capacity
Ice Bin Details
- 536-lb. application capacity
- Front-opening, top-hinged door
- Toolless, removable baffle
- Dependable polyurethane insulation
- Finished with a metallic exterior
- Polyethylene liner for sanitation
- Comes with an ice scoop
- Built-in scoop holder
- Elevated on 6-in. legs
- KBT27 kit connects bin top to ice maker
Dimensions & Utilities
- Ice maker: 22.9 in. W x 24 in. D x 23 in. H
- Ice bin: 30 in. W x 34 in. D x 50 in. H
- 14.4 A
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, nugget style, Original Chewable Ice, water-cooled, self-contained condenser, production capacity up to 715 lb/24 hours at 70°/50° (581 lb AHRI certified to 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 14.4 amps, NSF, cULus, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
