Description

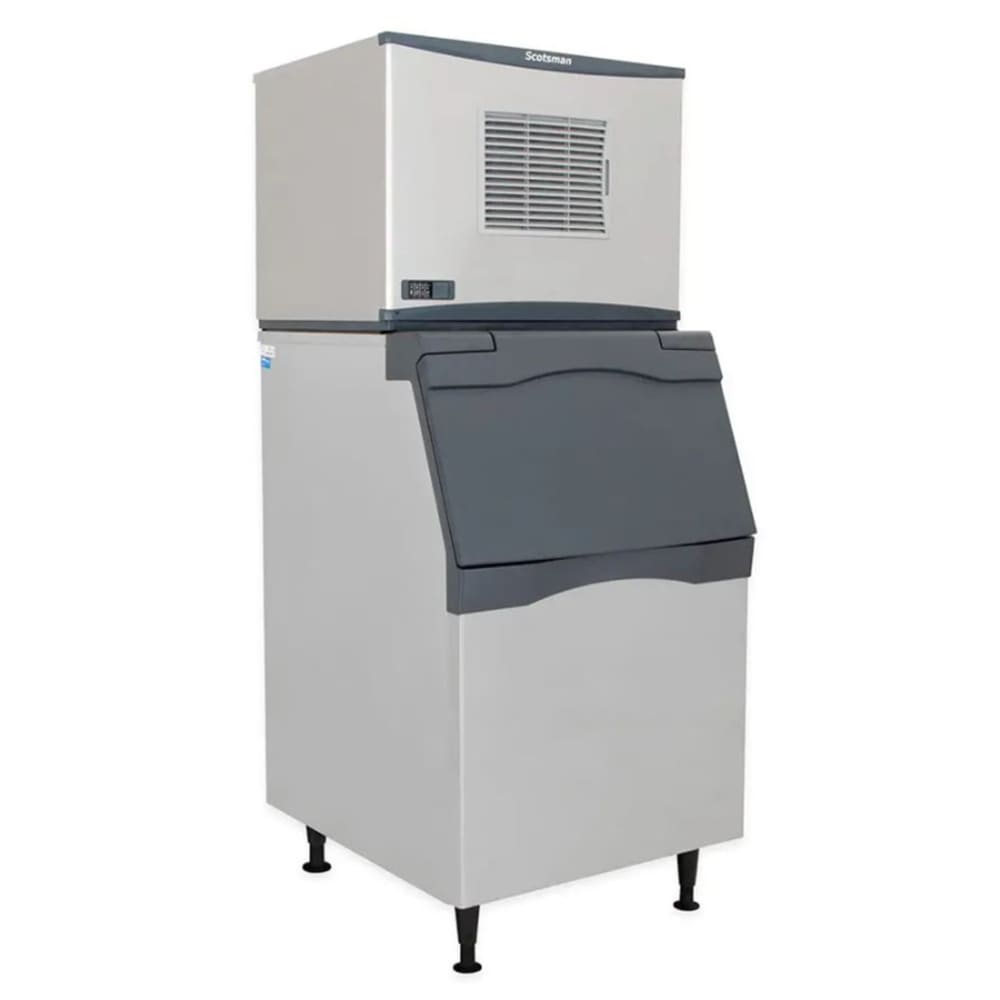

Scotsman NS0422A-1/B530P/KBT27
Designed for rust-resistant durability, the Scotsman NS0422A-1/B530P/KBT27 ice maker and bin combo is constructed of stainless steel, polyethylene, and rotocast plastic. For streamlined use, the ice machine head has indicator lights built in and features a unit-specific QR code that enables user access to owner manuals, troubleshooting guides, and warranty history. Inside, the ice machine head is treated with antimicrobial enhancement to resist the proliferation of bacteria, mold, or mildew during long-term use. Producing nugget ice, this machine satisfies customer needs with its soft, chewable product that suits gas stations, fast food restaurants, and delis.
Because it includes a bin top, the Scotsman NS0422A-1/B530P/KBT27 ice maker and bin set can be assembled with no gaps between components to release cold air. The bin can hold 536 pounds of ice, enough to meet high demand during lunch and dinner rush periods. For comfortable access, the bin stands on 6-inch legs and has a front-opening, top-hinged door. To maintain internal temperatures and reduce ice melt, the bin features a durable polyethylene liner and polyurethane foam insulation. With a rotocast plastic exterior, the bin resists dents and marks from high-volume use.
Ice Machine Head Details
- Prodigy Plus series
- Air cooled
- Produces nugget ice
- Original Chewable Ice is good for chilling beverages
- 420-lb. maximum daily ice production
- 348-lb. AHRI-certified daily ice production
- Self-contained condenser
- No side clearance needed with front-breathing system
- Sealed bearings operate smoothly over time
- AutoAlert indicator lights are built in
- AgION antimicrobial resists contamination
- QR code is unit specific
- Front-accessible air filter streamlines maintenance
- Long-term performance with stainless steel auger and evaporator
- 1-touch cleaning for simplified labor
- Stainless steel finish
- Operates with R404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
Ice Bin Details
- Comes with KBT27 bin top for use with 22-in. flakers
- Top-hinged door opens from front
- Storage capacity: 536 lbs.
- Reduced, 30-in. width
- Rotocast plastic exterior withstands heavy use
- Baffle removes with no tools for quick access
- Polyurethane insulation
- Polyethylene liner
- Mounted on 6-in. legs
Dimensions & Utilities
- Head: 22 in. W x 24 in. D x 23 in. H
- Bin: 30 in. W x 34 in. D x 44 in. H
- 12.9 A
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, nugget style, Original Chewable Ice, air-cooled, self-contained condenser, production capacity up to 420 lb/24 hours at 70°/50° (348 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, rotocast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
