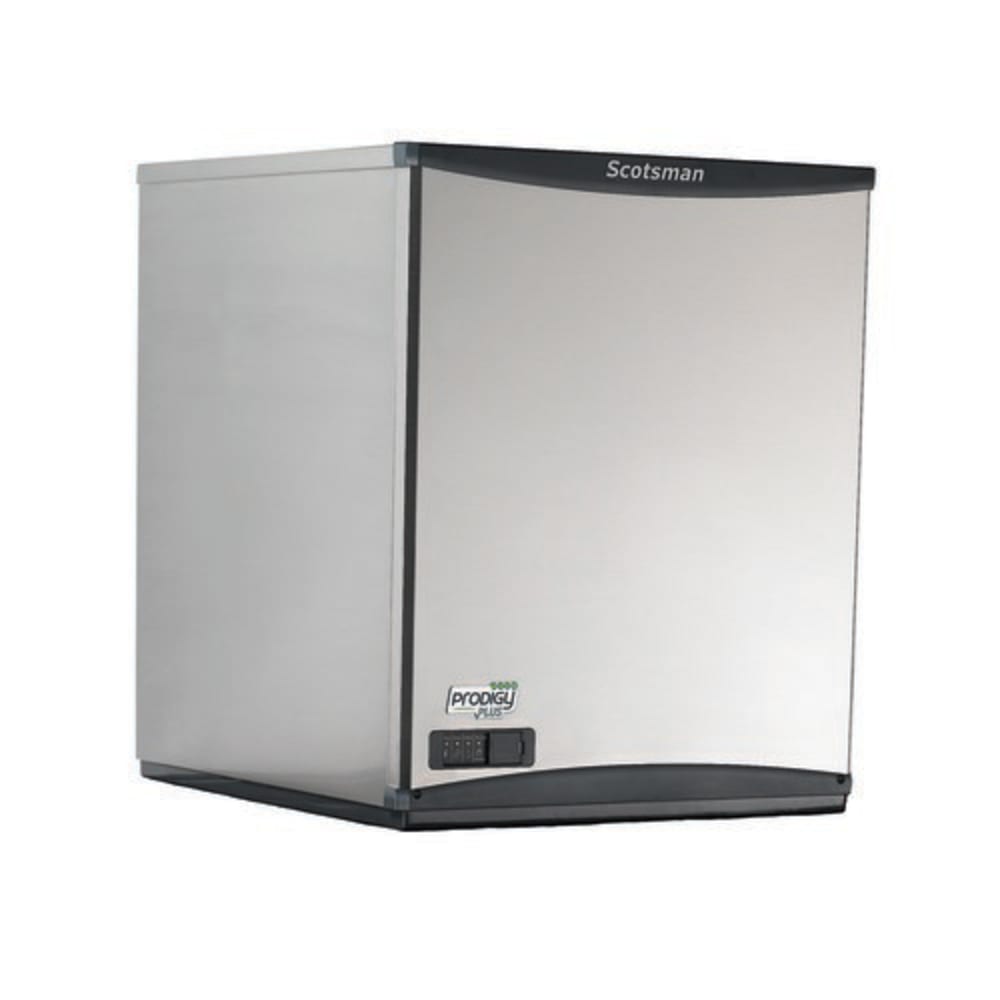

Scotsman NH1322L-1 22″ Prodigy Plus Nugget Ice Machine Head – 1191 lb/24 hr, Remote Cooled, 115v

The Scotsman NH1322L-1 nugget ice machine head has several features that reduce downtime and the need for service calls. Sealed, maintenance-free bearings are made with a self-lubricating polymer and eliminate the need for greasing, while a QR code on the front panel provides immediate access to user manuals, warranty information, and other unit documents. With a self-aligning front panel, access to the head’s key components and diagnostic board is simplified, saving owners time when troubleshooting. The AutoAlert LED indicator lights also help identify service needs, displaying when it’s time to descale, clean, whether the unit has water, and other information indicated by different colored lights and easy-to-identify symbols.

With an exterior, auger, and evaporator all made of stainless steel, the Scotsman NH1322L-1 nugget ice machine head is built to deliver a long service life. Antimicrobial protection in the food zone slows the growth of mold between cleanings, and because the refrigeration system is self-contained, it’s also protected from airborne contaminants.

Product Details

• Part of the Prodigy Plus series
• Requires remote condenser to function (sold separately)
• 1,191-lb. maximum daily ice production
• 1,018-lb. AHRI-certified daily ice production
• Makes H² nugget ice
• Nugget ice size: 0.75 in. x 0.31 in. x 0.38 in.
• Made with stainless steel auger and evaporator
• AutoAlert indicator lights for increased visibility
• Model-specific QR code provides access to manuals, care instructions, and warranty history
• Self-aligning front panel with simple access to front filter
• Smart-Board expands diagnostic capabilities
• Antimicrobial protection
• Sealed refrigeration system
• Must add R-404A refrigerant at initial startup
• Ice bin sold separately

Operating Requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 7,200-BTU heat transfer capacity

Dimensions & Utilities

• 22.7 in. W x 24 in. D x 27 in. H
• 0.87 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus Ice Maker, nugget style, H2 Nugget Ice, remote low side (condenser & compressor separate), production capacity up to 1191 lb/24 hours at 70°/50° (1018 AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, stainless auger and evaporator, heat and noise reduced via remote low side configuration, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.
