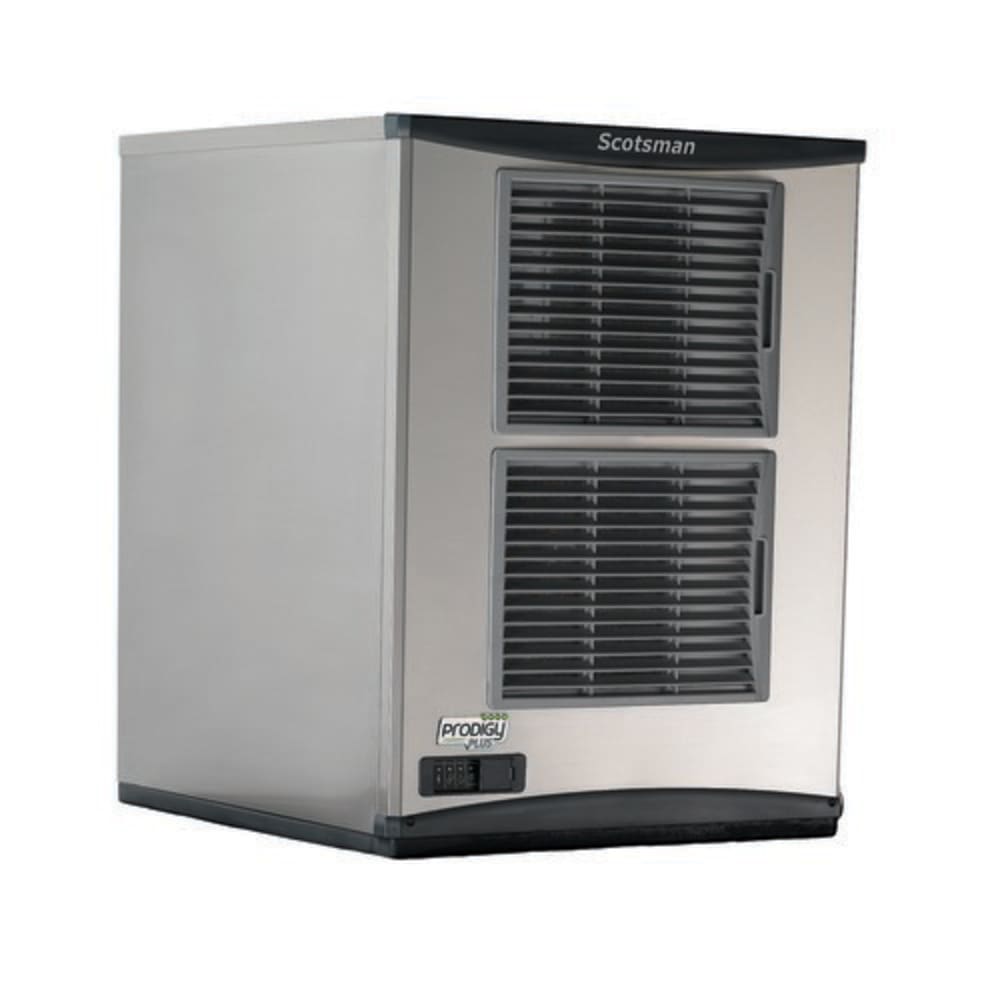

Scotsman NH0922A-1 22″ Prodigy Plus Nugget Ice Machine Head – 952 lb/24 hr, Air Cooled, 115v

To minimize its environmental impact, the Scotsman NH0922A-1 nugget ice machine head uses R-404A refrigerant. This air-cooled machine head is part of the Prodigy Plus series, including Prodigy Plus standard features such as a front-facing air filter that simplifies maintenance, AutoAlert indicator lights, and sealed, maintenance-free bearings that reduce downtime. This unit is equipped with a stainless steel auger and evaporator, resisting rust and corrosion.

Warranty information, manuals, parts lists, and more information regarding the Scotsman NH0922A-1 nugget ice machine head are available using the unit-specific QR code located on the front of the head, and staff can easily access the interior of the head using the self-aligning front panel. To provide protection between cleaning, the food zone is constructed with antimicrobial materials, inhibiting the growth of mold. In ideal conditions, this head can produce as much as 952 pounds of H² nugget ice per day. An ice bin isn’t included with this head and must be purchased separately.

Product Details

• Part of the Prodigy Plus series
• Air-cooled system
• 952-lb. maximum daily ice production
• 740-lb. AHRI-certified ice production
• Produces H² nugget ice
• Nugget ice size: 0.75 in. x 0.31 in. x 0.38 in.
• Auger and evaporator made of durable stainless steel
• AutoAlert LED lights display common errors
• QR code printed on the unit for access to manuals and guides
• Front-located air filter
• Smart-Board simplifies self-diagnosis
• AgION guards offer antimicrobial protection
• Airborne contaminants limited by sealed refrigeration system
• Reduces environmental impact with R-404A refrigerant
• Head only, ice bin not included

Operating Requirements

• Ideal ambient air temperature: 50-100 degrees F
• Ideal incoming water temperature: 40-100 degrees F
• Ideal incoming water pressure: 20-80 PSIG
• 10,500-BTU heat transfer capacity

Dimensions & Utilities

• 22.70 in. W x 24.91 in. D x 27 in. H
• 16.7 A, 4.01 kW
• 115 V/60 Hz/1 ph

From The Manufacturer

Prodigy Plus Ice Maker, nugget style, H2 Nugget Ice, air-cooled, self-contained condenser, production capacity up to 952 lb/24 hours at 70°/50° (740 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, front facing removable air filter, unit specific QR code, stainless auger and evaporator, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 16.7 amps, NSF, cULus, engineered and assembled in USA

*Image may not depict product color, inclusions or accessories.
