Scotsman FS0522A-1/B530S/KBT27

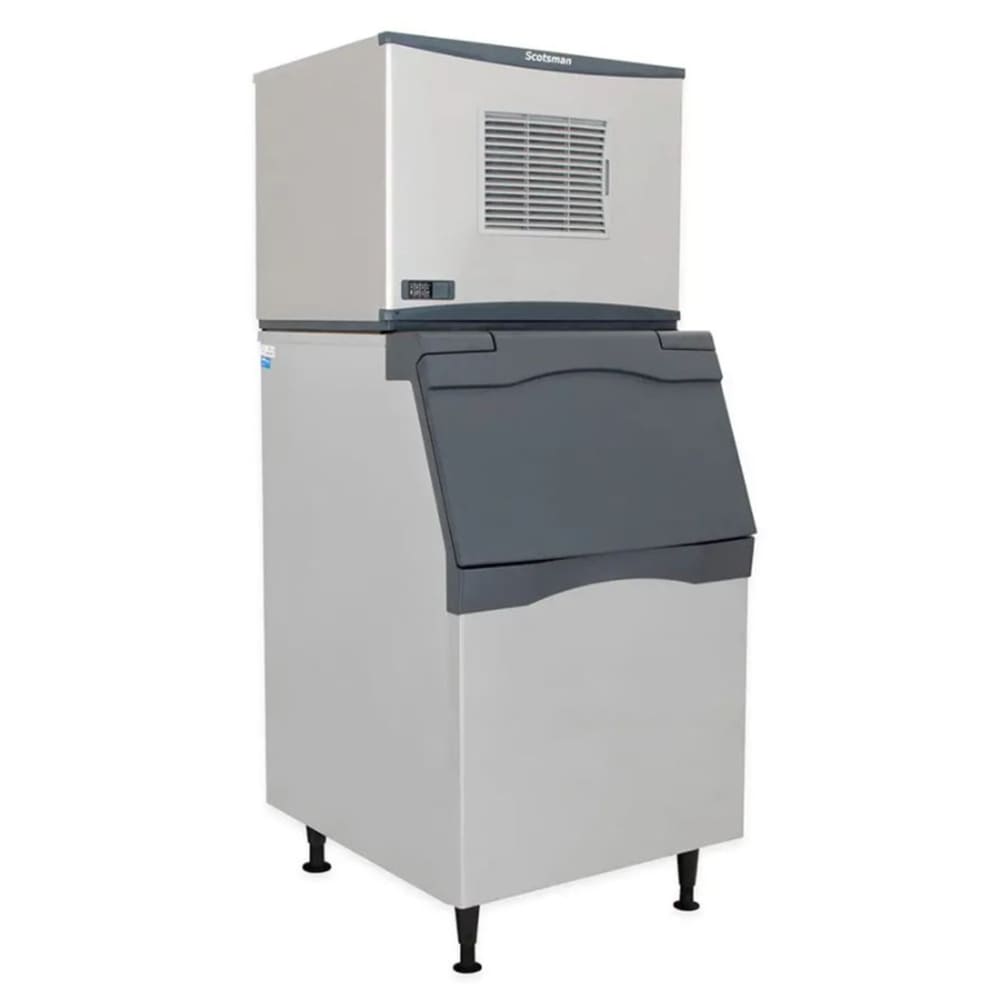

Operating with an air-cooled system, the Scotsman FS0522A-1 flake ice maker can produce 450 pounds of ice per day in ideal surroundings. The included Scotsman B530S ice bin collects the ice, storing as much as 536 pounds at a time. To minimize air leakage when installing this 22-inch-wide ice maker on top of the 30-inch-wide bin, this kit comes with a matching bin top. Useful for enhancing product displays, filling chilled buffets, and making ice packs, the flake ice produced by this machine is delicate and moldable. It isn’t well suited to chilling beverages such as tea or soda.
To withstand high-volume use and provide support for the FS0522A-1 head, the Scotsman B530S ice bin has a metallic finish exterior and polyurethane foam insulation that reinforces the unit’s structure while preserving ice integrity. It features a scratch-resistant polyethylene liner and stand on 6-inch legs, raising the bin to a more comfortable height for scooping. To facilitate water runoff, the bin has an integrated drain. Matching the bin’s appearance, the ice machine head has a durable stainless steel exterior and resists rust and scrapes.
Ice Machine Head Details
- Prodigy Plus series
- Air cooled
- Produces flake ice
- Enhances seafood and produce displays
- 450-lb. maximum daily ice production
- 343-lb. AHRI-certified daily ice production
- Refrigeration system is sealed for sanitary use
- Front-breathing, self-contained design requires no side clearance
- Low maintenance sealed bearings
- AutoAlert indicator lights streamline operation
- AgION antimicrobial protection is added
- Owner manual is accessible with unit-specific QR code
- Removable air filter is front facing for quick changes
- Auger and evaporator made of stainless steel for corrosion resistance
- 1-touch cleaning reduces labor
- Stainless steel finish
- Cools with R404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
Bin Details
- Comes with KBT27 bin top used with 22-in. flakers
- Metallic finish exterior
- Top-hinged door is front opening
- Storage capacity: 536 lbs.
- 30-in. width fits in small spaces
- No tools required to remove baffle
- Polyurethane insulation preserves ice temperatures
- Polyethylene liner
- Elevated on 6-in. legs
Dimensions & Utilities
- Head: 22 in. W x 24 in. D x 23 in. H
- Bin: 30 in. W x 34 in. D x 44 in. H
- 12.9 A, 4.61 kW
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, flake style, air-cooled, self-contained condenser, production capacity up to 450 lb/24 hours at 70°/50° (343 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, metallic finish exterior, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
