Description

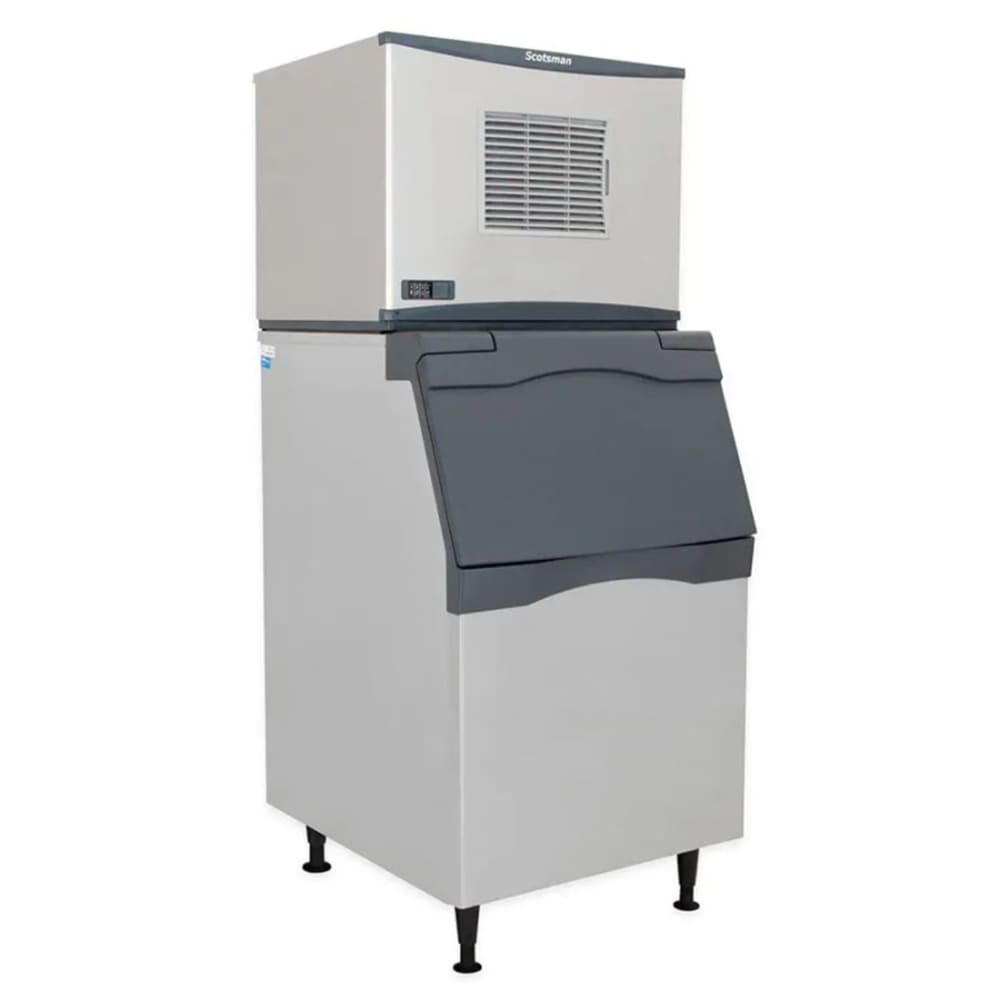

Scotsman FS0522A-1/B530P/KBT27
Producing as much as 450 pounds of ice per day and storing as much as 536 pounds of ice in reserve, this Scotsman FS0522A-1/B530P/KBT27 flake ice machine head and bin combo is good for venues that sell low volumes of frozen beverages such as margaritas and smoothies. Because the machine head is treated with AgION antimicrobial, it resists the spread of mildew, mold spores, and bacteria. To streamline cleaning, it features one-touch controls; built-in indicator lights warn users if maintenance is needed. This unit’s durable stainless steel finish withstands heavy use and resists corrosion.
To keep flake ice produced by the FS0522A-1 ice maker chilled for extended periods, the Scotsman B530P ice bin is constructed with a rotocast plastic exterior and polyurethane foam insulation that control the bin’s interior temperature. Its front-opening door is top hinged and users can access the ice maker’s removable filter from the front. To resist scratches and chips from ice scoops, the bin features an impact-resistant polyethylene liner. Standing on 6-inch legs, the bin is tall enough for most users to reach and scoop the ice comfortably.
Ice Machine Head Details
- Prodigy Plus
- Air cooled
- Produces flake ice
- Good choice for seafood and produce displays
- 450-lb. maximum daily ice production
- 343-lb. AHRI-certified daily ice production
- Sealed refrigeration system resists contaminants
- Refrigeration system is front breathing and self-contained
- Bearings are sealed for reduced maintenance
- Maintenance is simplified with AutoAlert indicating lights
- Enhanced with AgION antimicrobial protection
- Unit-specific QR code streamlines troubleshooting and service records
- Front-facing, removable air filter
- Corrosion-resistant stainless steel evaporator and auger
- 1-touch cleaning for reduced labor
- Stainless steel finish
- Operates with R404A refrigerant
- Ideal ambient air temperature: 50-100 degrees F
- Ideal incoming water temperature: 40-100 degrees F
- Ideal incoming water pressure: 20-80 PSI
- Heat displacement: 5,000 BTU
Bin Details
- Comes with KBT27 bin top for use with 22-in. flakers
- Door is top hinged and opens from the front
- Storage capacity: 536 lbs.
- 30-in. width compatible with top-mounted ice maker
- Made with rotocast plastic exterior for durability
- Baffle can be removed without tools
- Polyurethane insulation
- Polyethylene liner
- 6-in. legs
Dimensions & Utilities
- Head: 22 in. W x 24 in. D x 23 in. H
- Bin: 30 in. W x 34 in. D x 44 in. H
- 12.9 A, 4.61 kW
- 115 V/60 Hz/1 ph
From The Manufacturer
Prodigy Plus Ice Maker with Ice Bin, flake style, air-cooled, self-contained condenser, production capacity up to 450 lb/24 hours at 70°/50° (343 lb AHRI certified at 90°/70°), sealed maintenance-free bearings, AutoAlert indicating lights, unit specific QR code, front facing removable air filter, stainless steel evaporator and auger, one-touch cleaning, stainless steel finish, AgION antimicrobial protection, R-404A refrigerant, 115v/60/1-ph, 12.9 amps, NSF, cULus, engineered and assembled in USA; Ice Bin, top-hinged front-opening door, 536 lb application capacity, for top-mounted ice maker, 30″ width, rotocast plastic construction, toolless removable baffle, polyurethane insulation, polyethylene liner, includes 6″ legs, NSF, engineered and assembled in USA; Bin Top, for use with all 22″ cubers, flakers & nugget makers (except EH222) on B230, B330 & B530 bins
*Image may not depict product color, inclusions or accessories.
