Description
Scotsman C1030SA-32/B842S/KBT29 Description

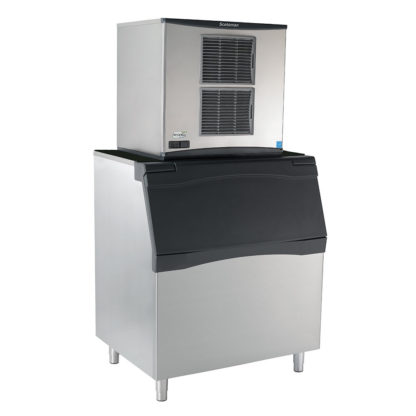

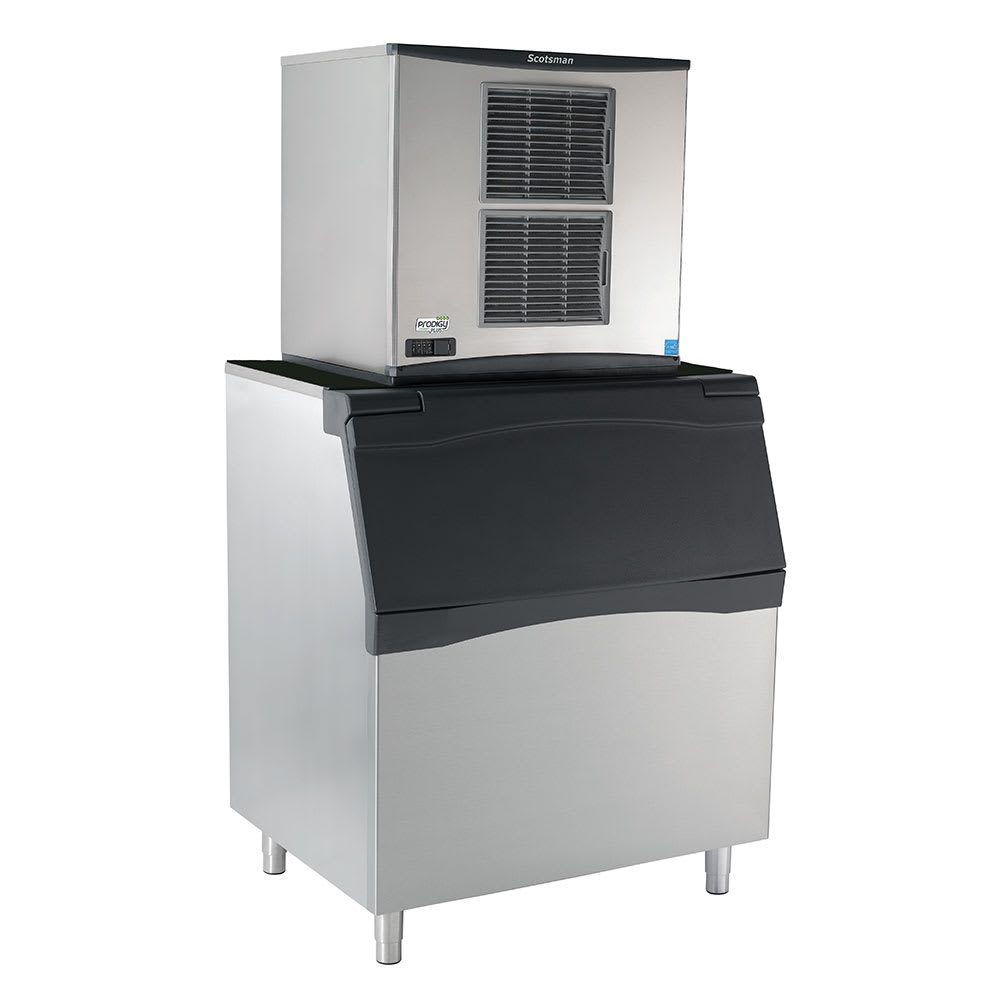

The Scotsman C1030SA-32/B842S/KBT29 Prodigy Plus ice cube machine and ice bin with installation kit has a stainless steel exterior with a metallic finish to resist corrosion and scratches. The ice bin has a 778-pound storage capacity and a polyurethane foam insulation between the liner and wall to help preserve the ice. An ice scoop is included with a built-in holder that keeps the scoop out of the ice. The interior is lined with polyethylene to keep it sanitary and resist scuffs from the ice scoop. The baffle can be removed for cleaning and the drain fitting is recessed to for flexible installation.
The Scotsman C1030SA-32/B842S/KBT29 ice cube machine can make 1077 pounds of ice daily and has a Harvest Assist feature that guides the ice into the bin with a probe and hot gas. This machine has a self-contained, air-cooled refrigeration system with a front-located air filter that improves air circulation and helps prevent overheating. The WaterSense purge control monitors and adjusts water quality to reduce scale buildup. To access the internal components, the front panel is self-aligning and removable. A QR code on the front of the unit provides service and warranty information and the cleaning process runs with the push of a button.
Product Details
- Part of the Prodigy Plus series
- Self-contained, air-cooled refrigeration system
- Air filter is located at the front of the unit to improve air circulation
- 1077-lb. daily ice production
- 789-lb. AHRI-certified daily ice production
- Stainless steel exterior with metallic finish
- WaterSense purge control monitors and adjusts water quality to reduce scale buildup
- Harvest Assist guides ice into bin with probe and hot gas
- QR code on the front of the unit provides service and warranty information
- Cleaning process runs with the push of a button
- AutoAlert indicator lights inform staff when unit needs servicing
- Self-aligning, removable front panel provides access to internal components
- Antimicrobial is integrated into the unit to protect between cleanings
- Uses R404A refrigerant
- Required incoming water pressure: 20-80 PSI
- Required ambient water temperature: 40-100 degrees F
- Required ambient air temperature: 50-100 degrees F
- 16,200 BTU
- 208-230 V/60 Hz/1 ph
- Ice cube dimensions: 0.875 in. x 0.875 in. x 0.375 in.
- Ice head dimensions: 30 in. W x 24 in. D x 29 in. H
Ice Bin Details
- 778-lb. storage capacity
- Rust-resistant stainless steel exterior
- Polyethylene bin interior is sanitary and resists scuffs from ice scoops
- Ice scoop is included with built-in scoop holder
- Baffle is removable for cleaning
- Recessed drain fitting creates flexible installation
- Spring-loaded door with hidden hinges facilitate opening and closing
- Polyurethane foam insulation between liner and wall helps preserve ice
- Includes KBT29 kit to properly install ice machine head to bin
- Requires 6-in. clearance at the rear for utility connection
- Bin dimensions: 42 in. W x 34 in. D x 50 in. H
From The Manufacturer
C1030SA-32 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 1077 lb/24 hours at 70°/50° (816 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 208-230v/60/1-ph, 12.20 amps, cULus, NSF, CE; B842S Ice Bin: Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF; KBT29 Top Kit: Bin Top Kit, for 30″ modular cubers on B842S, BH801 bin
*Image may not depict product color, inclusions or accessories.
