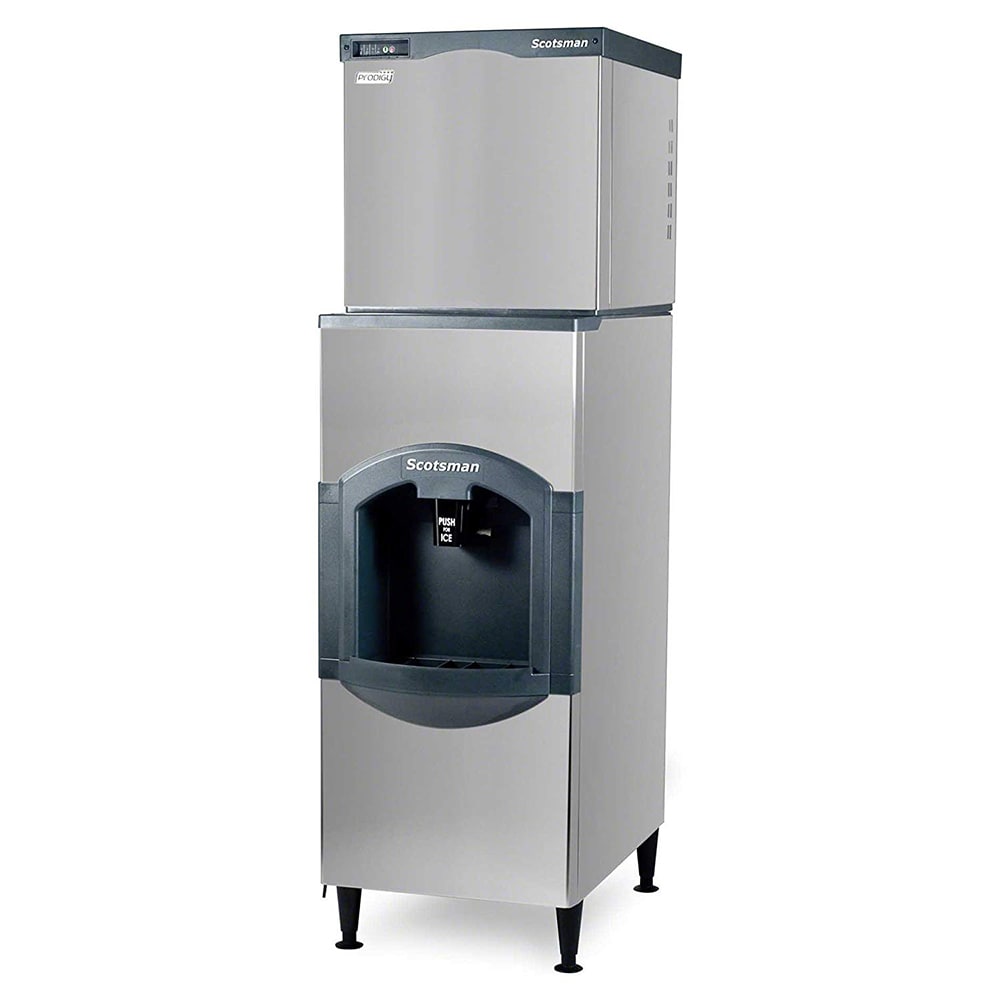

Scotsman C0630SW-32/HD30B-1 Description
The Scotsman C0630SW-32/HD30B-1 ice maker with dispenser can produce 633 pounds in 24 hours with its water-cooled condenser. Since this unit makes half-cube ice, it is ideal for bagged applications and drinks. Indicator lights provide users with information on operating status, and the smart module and scannable QR code instantly connect operators to service information.
Ice from the maker moves smoothly into the dispenser since the unit has Harvest Assist technology. The Scotsman C0630SW-32/HD30B-1 ice machine with dispenser can hold 180 pounds of ice, and foam insulation in the dispenser retains cold air to slow the melting process. Its push chute dispensing activation is compatible with hotel buckets.
Ice Maker Details
- 633-lb. ice production capacity
- 573-lb. AHRI-certified ice production capacity
- Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
- Water-cooled condensing unit
- R404A refrigerant
- AutoAlert indicator lights display the operating status
- Smart-Board diagnostic module provides feedback
- Scannable QR code instantly shows the operator service and warranty information
- Self-aligning front panel supports component access
- 1-touch cleaning feature
- Antimicrobial technology slows bacteria growth
- WaterSense purge control minimizes scale buildup between cleanings
- Harvest Assist technology ensures ice drops into the dispenser
- 12,700 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Dispenser Details
- 180-lb. storage capacity
- Dispensing activates through a push chute
- Made for hotel buckets
- Foam insulation retains cold air, slowing the melting process
- Top panel provides interior access without removing the ice maker
- Corrosion-resistant metallic exterior
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 9.8 A, 4.1 kW
- 208-230 V/60 Hz/1 ph
- Dispenser
- 30 in. W x 33.5 in. D x 53.25 in. H
- 115 V/60 Hz/1 ph, 11-ft. cord
From The Manufacturer
C0630SW-32 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 633 lb/24 hours at 70°/50° (573 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 208-230v/60/1-ph, 9.8 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: IceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
