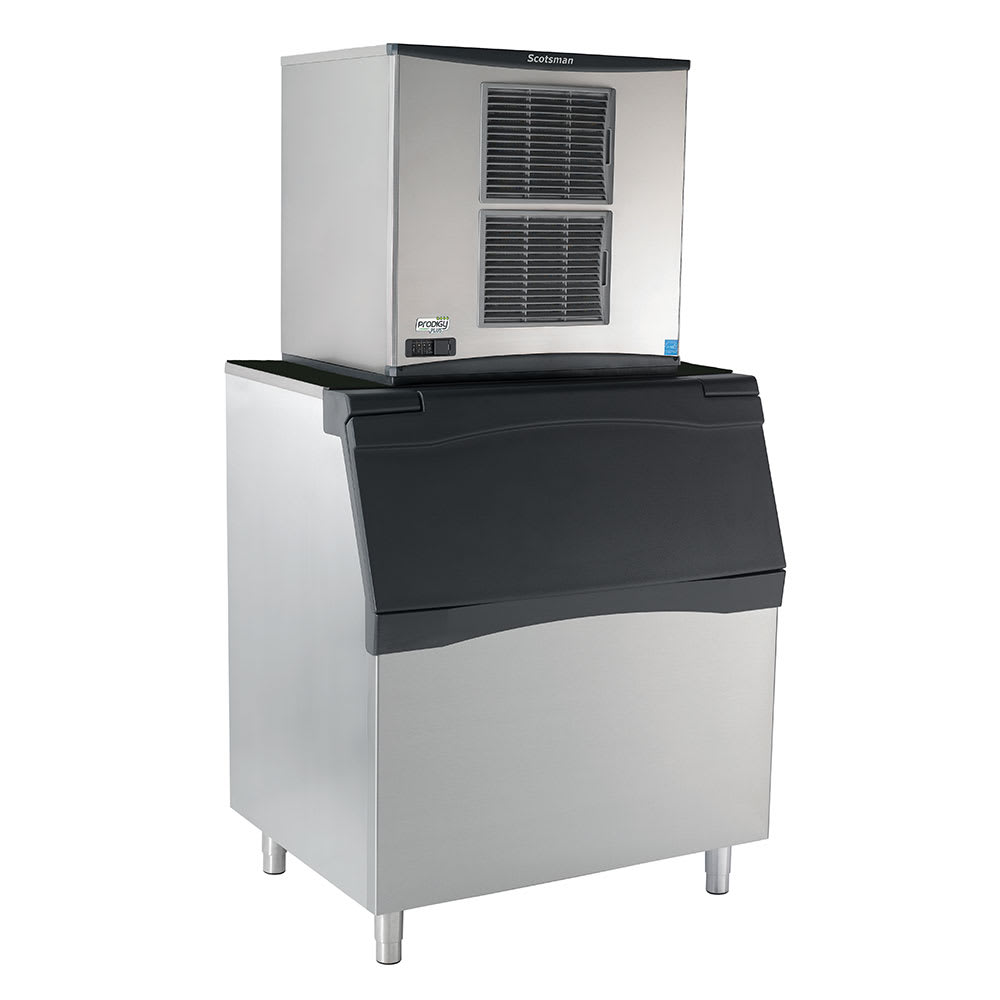

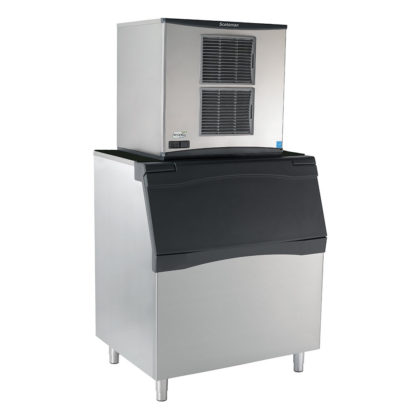

Scotsman C0630SA-32/B842S/KBT29 640 lb Half Cube Ice Maker w/ Bin – 778 lb Storage, Air Cooled, 208-230v/1ph

The Scotsman C0630SA-32/B842S/KBT29 ice maker with bin can produce 640 pounds of ice and store 788 pounds. It can be cleaned with the push of a button and makes half-cube ice, which has a versatile shape that is perfect for drinks. Between cleanings, an antimicrobial agent slows bacteria growth while purge control removes scale buildup. Operators can track the operating status by monitoring the indicator lights.

Made of polyethylene, the bin liner is durable and cleans up quickly. An ice scoop, an integrated holder, and an adapter kit come with the Scotsman C0630SA-32/B842S/KBT29 ice maker and bin. Harvest Assist technology ensures ice drops into the holding area.

Ice Maker Details

• 640-lb. ice production capacity
• 474-lb. AHRI-certified ice production capacity
• Half-cube ice size: 0.875 in. x 0.875 in. x 0.375 in.
• 1-touch cleaning feature
• Antimicrobial agent helps slow bacteria growth
• WaterSense purge control eliminates scale
• AutoAlert indicator lights illuminate to show operating status
• Smart-Board module provides users with diagnostic feedback
• QR code is scannable, instantly connecting operators to service and warranty information
• Components sit behind the front panel
• Harvest Assist technology efficiently moves ice to the bin
• Air-cooled condenser
• R404A refrigerant
• 12,700 BTU
• Required ambient air temperature: 50-100 degrees F
• Required incoming water temperature: 40-100 degrees F
• Required incoming water pressure: 20-80 PSIG

Bin Details

• 778-lb. storage capacity
• Polyethylene interior liner resists scuffs and scratches
• Hidden hinges on the spring-loaded door support cleaning by eliminating crevices
• Removable baffle requires no tools
• Recessed drain fitting provides installation flexibility
• Includes an ice scoop and a built-in holder
• Metallic finish
• KBT29 adapter kit connects the ice machine head to the bin

Dimensions & Utilities

• Ice Maker
  • 30.7 in. W x 24 in. D x 23.01 in. H
  • 11 A, 5.63 kW
  • 208-230 V/60 Hz/1 ph
• Bin
  • 42.5 in. W x 34 in. D x 50 in. H

From The Manufacturer

C0630SA-32 Ice Maker: Prodigy Plus Ice Maker, cube style, air-cooled, self-contained condenser, production capacity up to 640 lb at 70°/50° (474 lb AHRI certified at 90°/70°), stainless steel finish, small cube size, 208-230v/60/1-ph, 11.0 amps, cULus, NSF, CE; B842S Ice Bin: Ice Bin, top-hinged front-opening door, 778 lb application capacity, for top-mounted ice maker, polyethylene liner, metallic finish exterior, includes 6″ legs, NSF; KBT29 Ice Bin Top: Bin Top Kit, for 30″ modular cubers on B842S, BH801 bin

*Image may not depict product color, inclusions or accessories.
