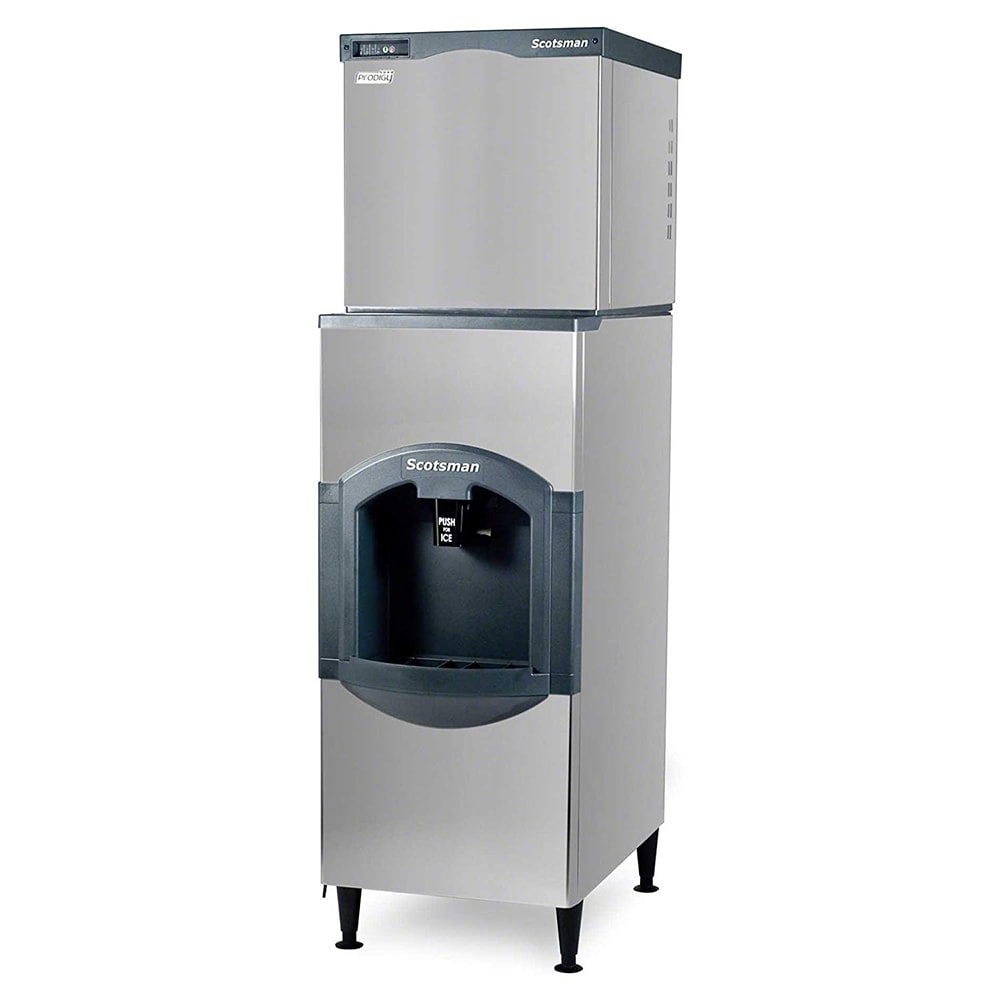

Scotsman C0630MW-32/HD30B-1 Description
The Scotsman C0630MW-32/HD30B-1 Prodigy Plus ice maker with dispenser has a water-cooled condenser and uses R404A refrigerant to maintain cold temperatures. Each day, this unit can make 633 pounds if the ambient air is 70 degrees Fahrenheit and incoming water is 50 degrees Fahrenheit. It makes full-cube ice, which is large and slow melting, so it is ideal for drinks. Indicator lights, a diagnostic module, and the scannable QR code simplify operation. Ice from the ice machine head efficiently moves into the dispenser with Harvest Assist technology, and the dispenser accommodates 180 pounds and is made for hotel buckets. Insulated with foam, the dispenser keeps cold air inside to slow melting.
Ice Maker Details
- 633-lb. ice production capacity
- 573-lb. AHRI-certified ice production capacity
- Produces full-cube ice for drinks
- Full-cube ice size: 0.875 in. x 0.875 in. x 0.875 in.
- Water-cooled condensing unit
- R404A refrigerant
- Smart-Board module gives diagnostic feedback
- Operating status displays by AutoAlert indicator lights
- Scannable QR code instantly connects users to warranty history and service information
- 1-touch cleanup
- Antimicrobial agent slows bacteria growth between cleanings
- WaterSense purge control helps eliminate built-up scale
- Self-aligning front panel provides component access
- Harvest Assist technology ensures ice moves into the dispenser
- Part of the Prodigy Plus series
- 12,700 BTU
- Required ambient air temperature: 50-100 degrees F
- Required incoming water temperature: 40-100 degrees F
- Required incoming water pressure: 20-80 PSIG
Dispenser Details
- 180-lb. storage capacity
- Push chute activation for dispensing
- Tall dispensing area accommodates hotel buckets
- Foam insulated door slows ice melting
- Removable top panel provides bin access without removing machine head
- Metallic exterior resists corrosion
Dimensions & Utilities
- Ice Maker
- 30.7 in. W x 24 in. D x 23.01 in. H
- 9.8 A, 4.1 kW
- 208-230 V/60 Hz/1 ph
- Dispenser
- 30 in. W x 33.5 in. D x 53.25 in. H
- 115 V/60 Hz/1 ph, 11-ft. cord
From The Manufacturer
C0630MW-32 Ice Maker: Prodigy Plus Ice Maker, cube style, water-cooled, self-contained condenser, production capacity up to 633 lb/24 hours at 70°/50° (573 lb AHRI certified at 90°/70°), stainless steel finish, medium cube size, 208-230v/60/1-ph, 9.8 amps, cULus, NSF, CE; HD30B-1 Ice Dispenser: iceValet Hotel/Motel Ice Dispenser, floor model, push dispensing, 180 lb storage capacity, designed for 30″ wide top mount cube-type ice makers, stainless front & sides, includes 6″ legs, 115v/60/1-ph, 2.1 amps, NSF, cULus
*Image may not depict product color, inclusions or accessories.
